100% Tested Goodyear Industrial Air Spring 578-932-374 Trailer Air Suspension
100% Tested Goodyear Industrial Air Spring 578-932-374 Trailer Air Suspension
Production Introduction
Expertly crafted for optimal performance, this actuator features a durable crimped assembly for enhanced strength. Its convoluted bellow, made from high-quality Natural Rubber, offers superior dynamic capabilities and adaptability. Zinc-plated top and bottom plates ensure excellent corrosion resistance, guaranteeing reliable, long-term operation. This combination of durability, versatility, and power makes it an ideal solution for diverse industrial applications.
Product Details
| Convolutions | Triple Convoluted |
| Style No. | YI-3B |
| Temperature Range [min] | -30℃ |
| Pressure [max] | 100 psi |
| Temperature Range [max] | +70℃ |
Part Number
Goodyear Number: 3B14-374
Goodyear Number: 3B 14-374
Goodyear Flexmember: 578932374
Goodyear Flexmember: 578 932 374
Goodyear Flexmember: 578-932-374
Contitech Number: FT 530-32 336
Contitech Number: FT530-32 336
Contitech Number: FT53032 336
Contitech Order: 64506
Automann Number: SP3B32R-7808
Brake & Wheel Number: M3533
Dayton Number: 354-7808
Dayton Number: 354 7808
Dayton Number: 3547808
EZ Ride Number: 8030170
Firestone Number: W01-358-7808
Firestone Number: W01 358 7808
Firestone Number: W013587808
Firestone Style: 313
FleetPride Number: AS7808
Hendrickson Number: S-13157
Hendrickson Number: S 13157
Hendrickson Number: S13157
Loadguard Number: SC2031
Navistar/Fleetrite Number: 554801C1
Peerless Number: 0550-00030
Peerless Number: 055000030
Peerless Number: 0550 00030
Ridewell Number: 1003587808C
SAF Holland Number: 57007808
Taurus Number: 6319
Triangle Number: AS-4336
Triangle Number: AS4336
Triangle Number: AS 4336
TRP Number: AS78080
Truckstell Number: 63640
Warren Number: 8030170
Goodyear Triple Convoluted Air Bellows
| Part No. | Usable Stroke | Max Dia. @ 100 psi In | Min Height Inches | Max Height Inches | Bumper | Force At Actuator Height Limit (Pounds) | Force At Compressed Height Limit (Pounds) | ||||||
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi | ||||||
| 3B12-305 | 13.3 | 13 | 4.7 | 18 | NO | 29.25 | 2165 | 1370 | 735 | 10165 | 7915 | 5855 | 3960 |
| 3B14-351 | 10.9 | 15.5 | 7.3 | 18.2 | YES | 4770 | 3385 | 1935 | 940 | 13885 | 10550 | 7810 | 5220 |
| 3B14-353 | 10.9 | 15.5 | 7.3 | 18.2 | NO | 4770 | 3385 | 1935 | 940 | 13885 | 10550 | 7810 | 5220 |
| 3B14-354 | 13.5 | 15.5 | 4.7 | 18.2 | NO | 4770 | 3385 | 1935 | 940 | 15200 | 11080 | 8240 | 5220 |
| 3B14-361 | 13.5 | 15.5 | 4.7 | 18.2 | NO | 4770 | 3385 | 1935 | 940 | 15200 | 11080 | 8240 | 5220 |
| 3B15-375 | 12.3 | 16.5 | 4.7 | 17.0 | NO | 6165 | 4775 | 3470 | 2225 | 16650 | 13275 | 9765 | 6555 |
| 3B15-376 | 9.7 | 16.5 | 7.3 | 17.0 | YES | 6165 | 4775 | 3470 | 2225 | 14925 | 11865 | 8905 | 5945 |
| 3B15-377 | 12.3 | 16.5 | 4.7 | 17.0 | NO | 6165 | 4775 | 3470 | 2225 | 16650 | 13275 | 9765 | 6555 |
| 3B15-378 | 9.7 | 16.5 | 7.3 | 17.0 | YES | 6165 | 4775 | 3470 | 2225 | 14925 | 11865 | 8905 | 5945 |
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

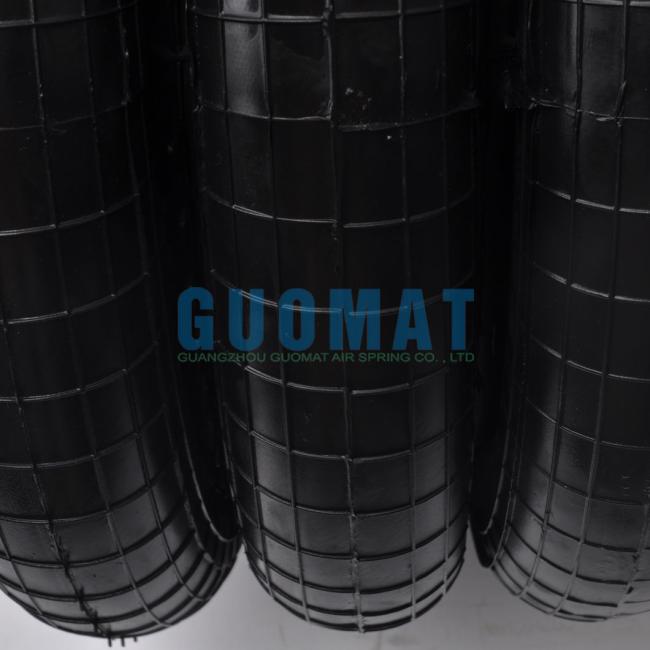

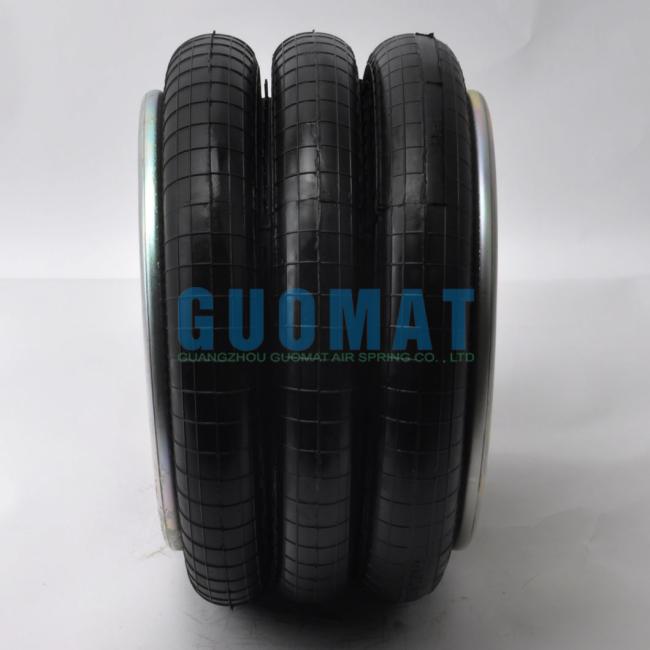

Pictures of Details

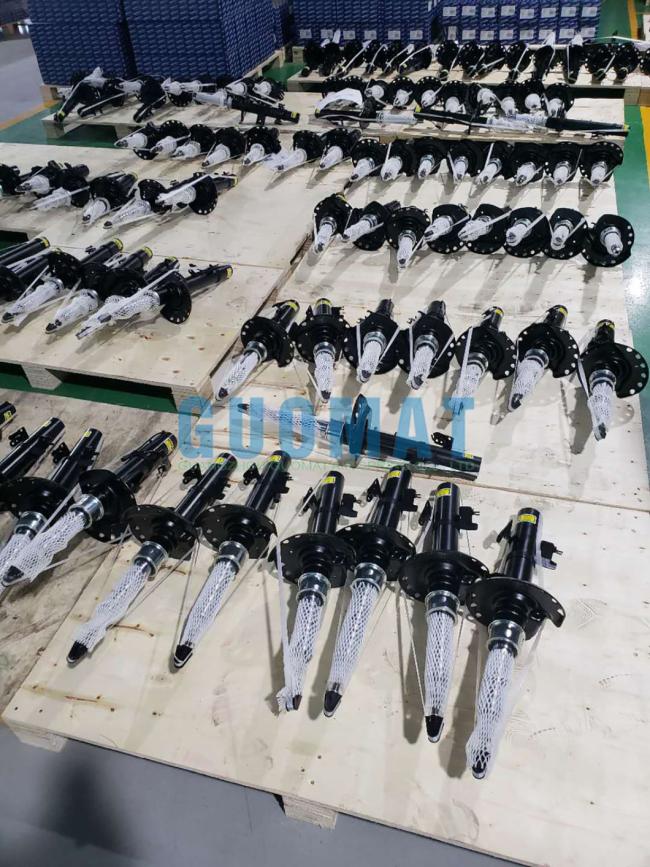

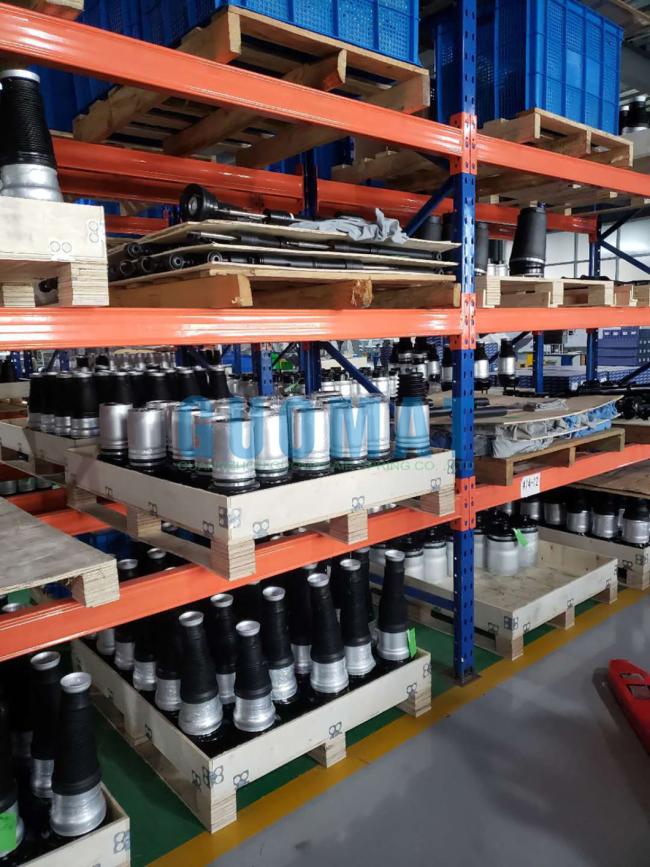

Warehouse Pictures
