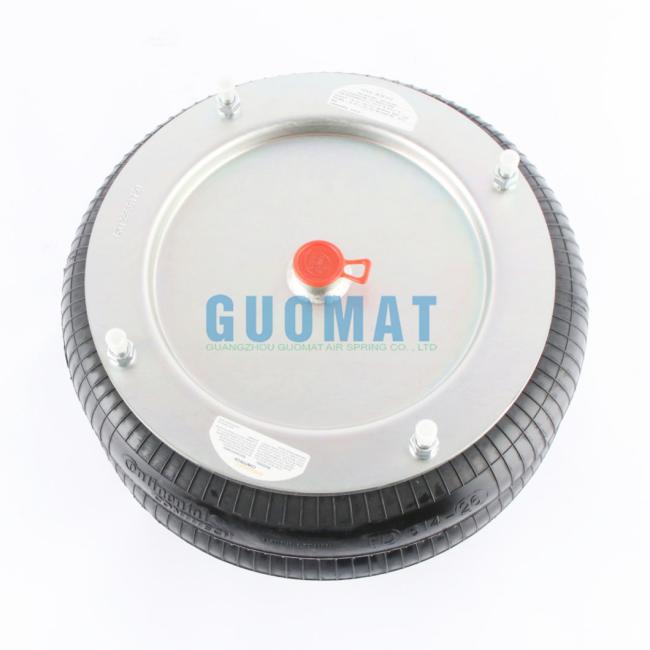

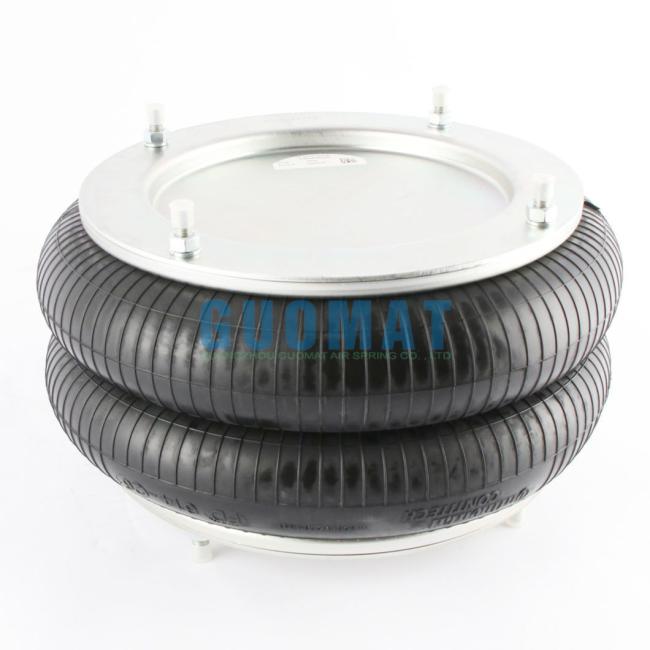

Flange Ring Air Bellow Contitech FD 614-26 Firestone W01-R58-4064 Truck Air Spring
Flange Ring Air Bellow Contitech FD 614-26 Firestone W01-R58-4064 Truck Air Spring
About Air Spring
Air springs have been a staple in heavy-duty vehicle suspension systems for nearly a century, leveraging compressed air from braking systems to deliver dual benefits over mechanical leaf or coil springs. First, air suspension enhances ride comfort by allowing adjustable air pressure, which modifies the spring rate and improves ride quality. Second, the ability to regulate air pressure enables precise deck or trailer height adjustments, facilitating easier alignment with loading docks when dock plates are not available.
Product Details
| Cover Plate | |
| Top Cover Plate Diameter | 310 mm |
| Screw Center Distance of Top Cover Plate | 282.5 mm |
| Bottom Cover Plate Diameter | 310 mm |
| Screw Center Distance of Bottom Cover Plate | 282.5 mm |
| Nut/Blind Nuts | |
| Top Cover Plate Screw(Nut) Tooth | 4×M10 |
| Bottom Cover Plate Screw(Nut) Tooth | 4×M10 |
| Gas Hole/Air Inlet/Air Fitting | |
| Air Hole | G 1/2 |
| Rubber Bellow | |
| Rubber Bellow Max. Diameter | 400 mm |
| Space Required | 425 mm |
| Minimum Height | 75 mm |
| Maximum Height | 340 mm |
Contitech FD614-26
Contitech FD 614-26
Contitech FD614-26 DS G1/4
Contitech FD 614-26 DS G1/4
Fire stone W01-R58-4064 W01R584064 W01 R58 4064
Weweler USN 510010DX
Gigant 881205
Fire stone 14.5x2
DUNLOP FR, SP 1556
NORGREN, M/31142 (141/2x2)
Product Applications
- Large drying machines
- Vibratory conveyors
- Electronic equipment
- Compressors
- Conveyor loading points
- Textile looms
- Rotary shaft actuators
- Conveyor or transfer systems
