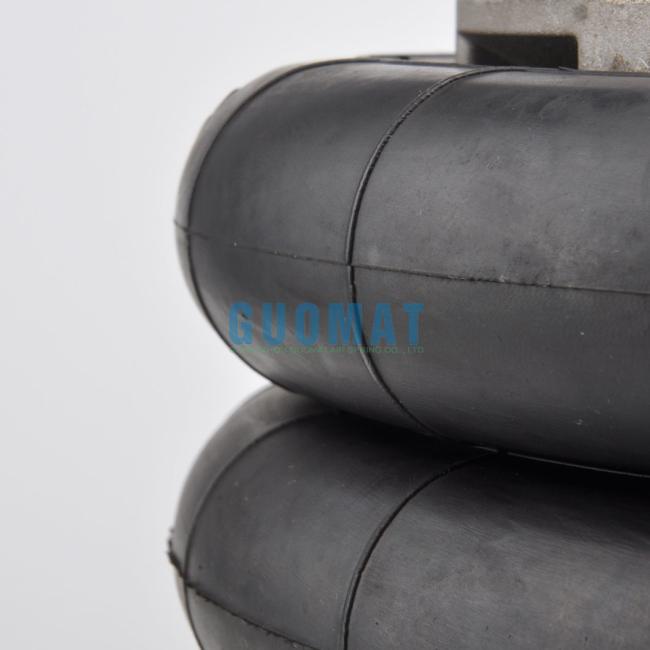

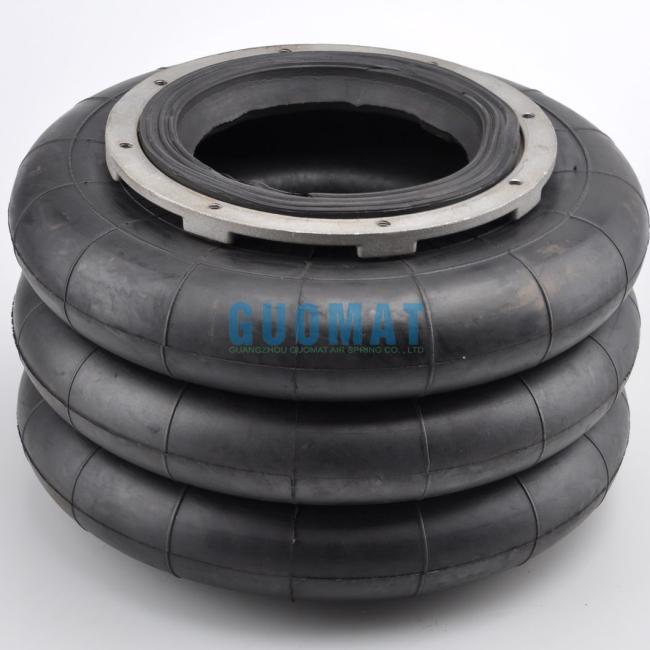

10X3 Dunlop SP159 Triple Convoluted Air Spring Actuator Refer To Contitech FT 210-32 Stroke 230mm
10X3 Dunlop SP159 Triple Convoluted Air Spring Actuator Refer To Contitech FT 210-32 Stroke 230mm
Rubber Bellows
In 0.7 M pa,Rubber Bellows Diameter : 256 mm
Rubber Bellows Natural Height :230 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With 2 Girdle Hoop
OEM Original Equipment Manufacturer:
Manufacturer:
| Airkraft: | 115056 |
| Contitech: | FT 210-32 |
| Dunlop: | SP1539(10X3) |
| Weforma: | WBD-G450 |
| Stroke: | 230mm |
| Condition: | New |
Complete Numbers
| Firestone Number | W01-R58-4059 / W01 R58 4059 / W01R584059 |
| Firestone Number | WO1-R58-4059 / WO1 R58 4059 / WO1R584059 |
| Dunlop Number | 10X3 / 10x3 / 10''X3 |
| Dunlop Number | SP1539 / SP 1539 |
| Contitech Number | FT210-32 DS / FT210-32 / FT 210-32 |
| Norgren Number | M/31103 / M 31103 / M31103 |
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
Nut / Blind Nut - As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
Gas Hole / Air inlet / Air Fitting - Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.

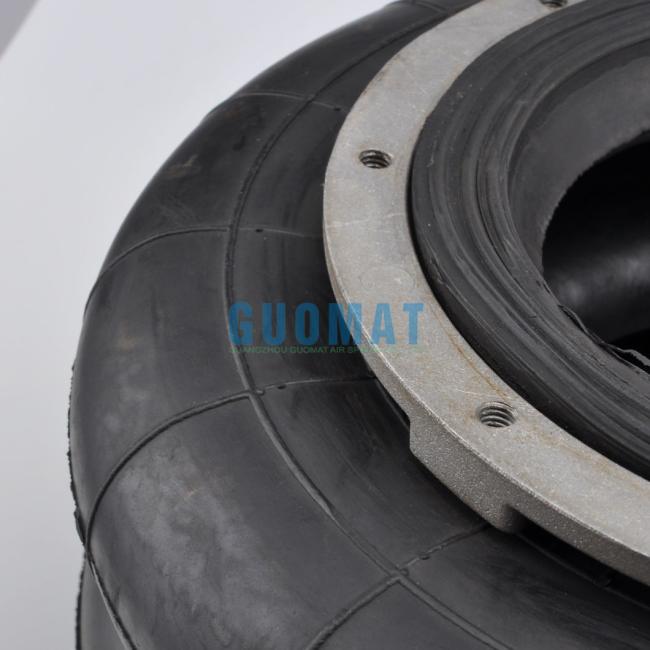

Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides - 65F functional properties.
Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
About us
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.
Advantages
| 1 | Excellent materials |
| 2 | Effective shock |
| 3 | In situ installation |
| 4 | Comfortable and stable |
| 5 | Long life |
| 6 | Slove the abnormal noise |
Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
