Heavy-Duty Equipment Air Spring 3H480312 with Flange Ring Triple Convoluted

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 Working Days

Brand: GUOMAT

Product Description

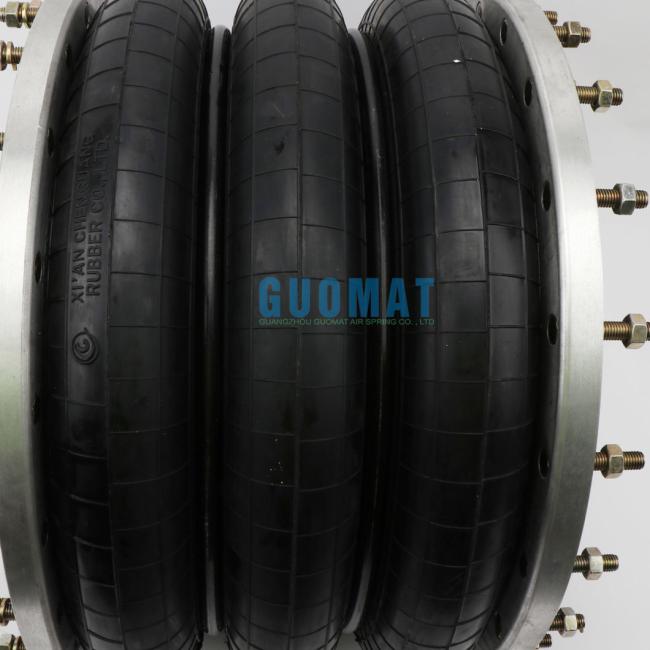

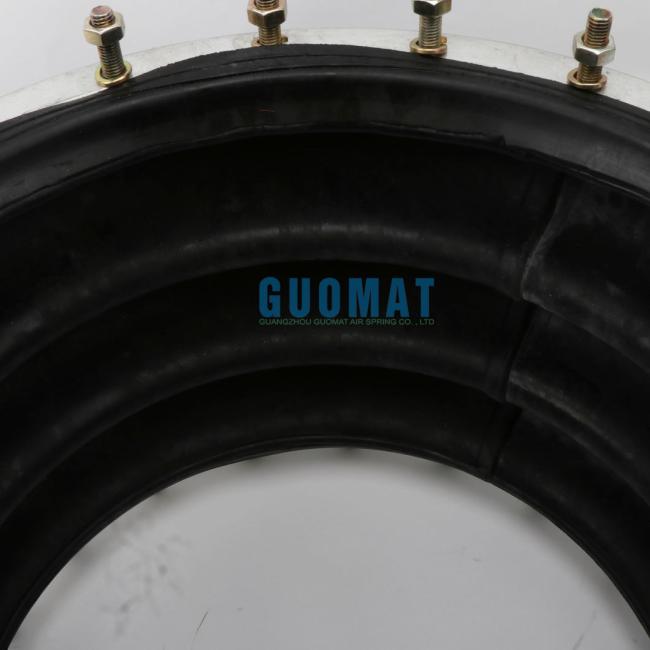

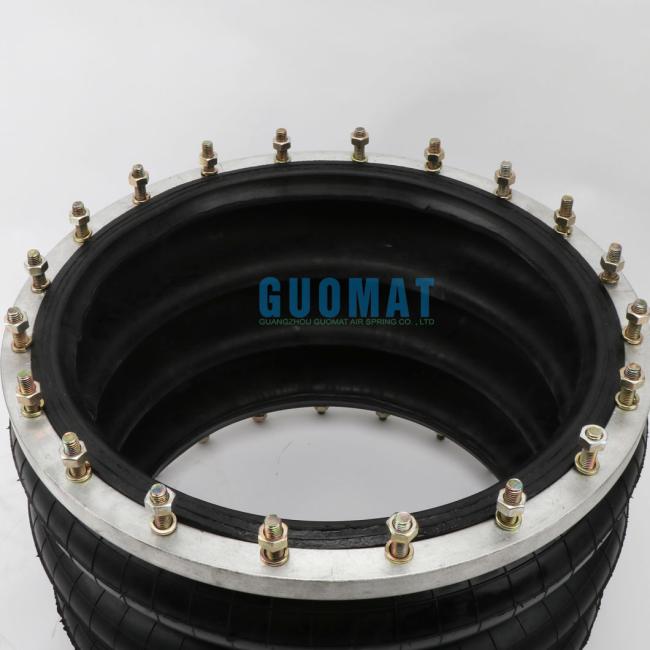

Heavy-Duty Equipment Air Spring 3H480312 with Flange Ring Triple Convoluted

Product Introduction

Flange air spring is an ideal choice for air suspension system. It is a device that provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, motorcycles, etc. Compared with traditional steel springs, flange air springs have more advantages and functions.

Convoluted Air Spring Specifications

Manufacturer Part Number	3H480312	Bead ring Type	4
Maximum Diameter @ 7 Bar (mm)	510	Dim# C (Bolt Circle Diameter mm)	438
Maximum Height (mm)	378	# of Bolts (each ring)	32
Maximum Stroke (mm)	256	Design Height (mm)	381
Minimum Usable Height (mm)	224	3 Bar (kN)	78.5
25 mm (kN)		5 Bar (kN)	132.9
50% of Max Stroke (kN)		7 Bar (kN)	187.9
Maximum Stroke (kN)		Natural Frequency (@5 Bar)(fn(Hz)	1.2
Applicable Technigram?		7 Hz	97
Material	One-Ply,	13 Hz	99.3
		25 Hz	99.8
