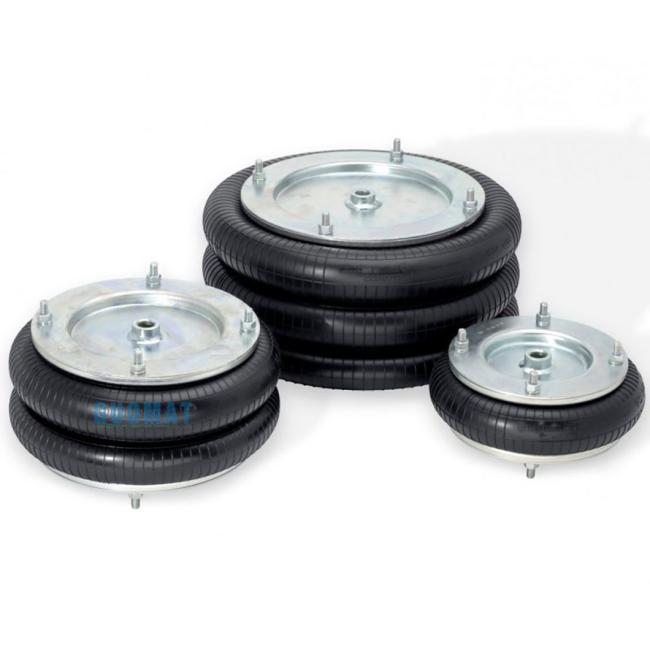

Flange Ring Convoluted Air Bellow Norgren M/31062 Dunlop 6''×2 Natural Rubber

Product Introduction

The working principle of stamped flange air spring is to use the compression and release of gas to achieve shock absorption and suspension functions. When the vehicle passes through uneven roads or is subjected to external impact, the spring body will be squeezed or stretched, causing the gas to produce pressure changes inside the spring body. By adjusting the air valve, the flow and pressure of the gas can be controlled, thereby achieving shock absorption and suspension adjustment of the vehicle. Stamped flange air spring has a large compression amount and a fast response speed.

2B6×2T Refer Number


Norgren: M/31062 / M 31062 / M31062

Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2

Dunlop FR: SP1482

Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112

Double Convoluted Air Spring 2B180-115 D185

Double Convoluted Air Spring 2B180-115 D185

Replaces These Air Springs (Air Bellows)

ContiTech: FD 76-14 1/2 M10

ContiTech: FD 76-14 DS G1/2

ContiTech: FD 76-14 DS G1/2 CR

ContiTech: FD 76-14 DS CR G1/2

ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR

ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

2B6×2T Technical Datas

Medium: Compressed air
Operating Temperature: -40 ... 70 °C, -40 ... 158 °F
Operating Pressure: 0 ... 8 bar, 0 ... 116 psi
Port Size: G1/2
Nominal Diameter: 6"
Number Of Convolutions: 2
Stroke Length: 115 mm
Operation: Single acting
Theoretical Force: 10400 N
Dimensions - Height: 240 mm
Dimensions - Length: 175 mm
Dimensions - Width: 175 mm
Weight: 2.2 kg



Other Kinds of Model Air Bellows

Fires tone Air Spring Parts NO.: W01-R58-4070 - (6 x 2 Alu )

Fires tone Air Spring Parts NO.: W01-R58-4053 - (6 x 2 Steel )

Fires tone Air Spring Parts NO.: W01-R58-4078 - (6 x1 Alu )

Fires tone Air Spring Parts NO.: W01-R58-4081 (2 3/4" x3)

Fires tone Air Spring Parts NO.: W01-R58-4051 Dunlop Style 4,5 " x 2

Fires tone Air Spring Parts NO.: W01-R58-4052 - (6" x1 steel)

Fires tone Air Spring Parts NO.: W01-R58-4057 - (10 x1 steel)

Fires tone Air Spring Parts NO.: W01-R58-4054 - 8x1 Steel

Fires tone Air Spring Parts NO.: W01-R58-4028 - 8"x1 Epichlorhydrin

Fires tone Air Spring Parts NO.: W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)

Fires tone Air Spring Parts NO.: W01-R58-4090 - 8"x2 Butyl

Fires tone Air Spring Parts NO.: W01-R58-4055 - 8x2 Steel

Fires tone Air Spring Parts NO.: W01-R58-4060 (12 x1 steel)

Fires tone Air Spring Parts NO.: W01-R58-4077 (12 x1 Herclor )

Fires tone Air Spring Parts NO.: W01-R58-4056 -8"x3 Steel

Fires tone Air Spring Parts NO.: W01-R58-4062 (12 x3 Steel)

Fires tone Air Spring Parts NO.: W01-R58-4065 (14 1/2 x3 Steel)

Fires tone Air Spring Parts NO.: W01-R58-4098 (14 1/2 x1 Herclor)

Fires tone Air Spring Parts NO.: W01-R58-4097 (14" 1/2 x2 Herclor)

Fires tone Air Spring Parts NO.: W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)

Fires tone Air Spring Parts NO.: W01-R58-4059 - (10" x3 steel)

Spar Part Bellow 8"x2 W01-R58-4045

Fires tone Air Spring Parts NO.: W01-R58-4064 -14" 1/2 x2

Fires tone Air Spring Parts NO.: W01-R58-4063 -14 1/2 x1

Bellow only 8" x 1 -- W01-R58-4085

Fires tone Air Spring Parts NO.: W01-R58-4080 - 2 3/4" x 2

Fires tone Air Spring Parts NO.: W01-R58-4060 - 12" x2 steel

Fires tone Air Spring Parts NO.: W01-R58-4070 - (6 x 2 V2a )

Fires tone Air Spring Parts NO.: W01-R58-4051E 4,5 x 2 Stainless Steel

Fires tone Air Spring Parts NO.: W01-R58-4050 - 2 3/4" x 1

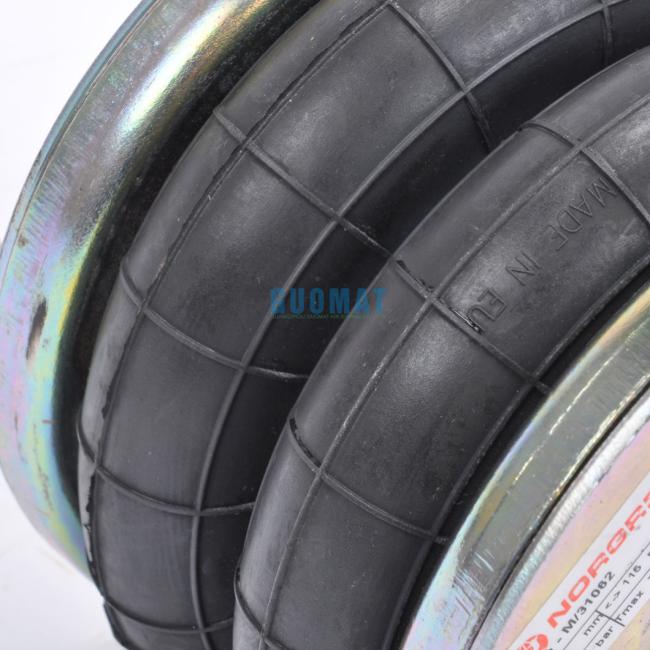

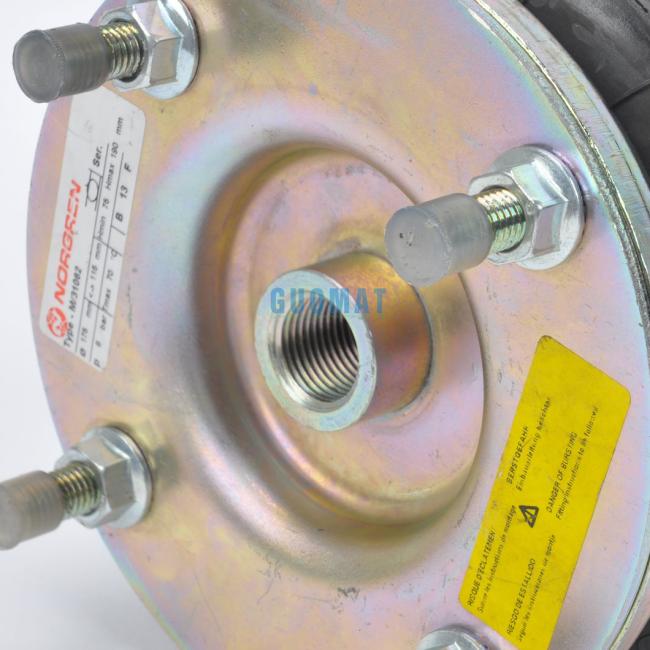

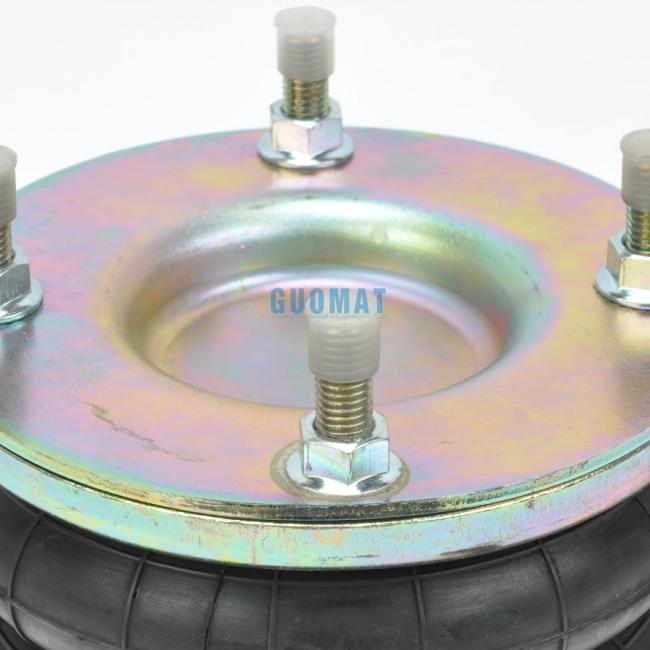

The Details of Products
