Contitech FD 76-14 DS Norgren M/31062 Industrial Convoluted Air Spring with Flange
Contitech FD 76-14 DS Norgren M/31062 Industrial Convoluted Air Spring with Flange
Product Details
| Type | Max. Diameter | Minimum Height (mm) | Maximum Height (mm) | Total Stroke | Static Height (mm) | C to C Diameter | Space Required |
| 41/2×2 | 125 | 65 | 145 | 80 | 100 | 93 | 140 |
| 6×2 | 168 | 73 | 170 | 100 | 120 | 127 | 180 |
| 8×2 | 230 | 72 | 225 | 153 | 150 | 156 | 240 |
| 91/4×2 | 260 | 70 | 240 | 170 | 160 | 168 | 275 |
| 10×2 | 280 | 70 | 240 | 170 | 160 | 181 | 295 |
| 12×2 | 330 | 74 | 240 | 166 | 160 | 232 | 345 |
| 141/2×2 | 395 | 70 | 280 | 210 | 180 | 283 | 410 |
| 16×2 | 430 | 77 | 320 | 243 | 180 | 283 | 445 |
Cross Reference
| Dunlop | 6''x2 |
| DUNLOP | 6 X 2 |
| DUNLOP SPRINGRIDE | SP1482 |
| DUNLOP SPRINGRIDE | SP1 482 |
| Dunlop | 6x2 Steel |
| Fire-stone | W01-R58-4053 |
| Fire-stone | W01 R58 4053 |
| Fire-stone | W01R584053 |
| Fire-stone | WO1-R58-4053 |
| Fire-stone | WO1 R58 4053 |
| Fire-stone | WO1R584053 |
| Contitech | FD 76-14 DS |
| Contitech | FD 76-14 DS G 1/2 CR |
| Contitech | FD76-14DSG1/2CR |
| Contitech | FD76-14 DSG1/2CR |
| Contitech | FD 76-14 DSG1/2CR |
| Contitech | FD76-14DSG1/2CR |
| NORGREN | M/31062 |
| NORGREN | M 31062 |
| NORGREN | M31062 |
| PARKER | 9109001 |
Flange Air Spring Advantages
- Long service life
- Maintenance-free
- Highly operational safety
- Frictionless
- Lateral misalignment possible
- Chemical resistance
Precautions for Installing Air Springs
1) Airsprings must not be pressurised unless they are restricted by an outside frame or by a suitable load.
2) Strokes must be limited by the direct use of bump stops or external stops. When stacking airsprings, special cares must be taken to ensure the airsprings are guided and fixed
3) An Airspring is a single acting air actuator and must not be used below atmospheric pressure.
4) Please check the overpressure in case of quick compression

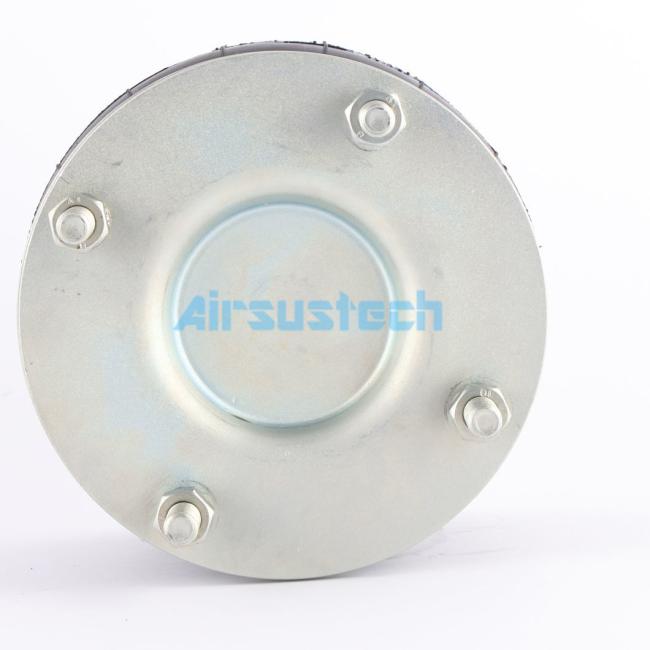

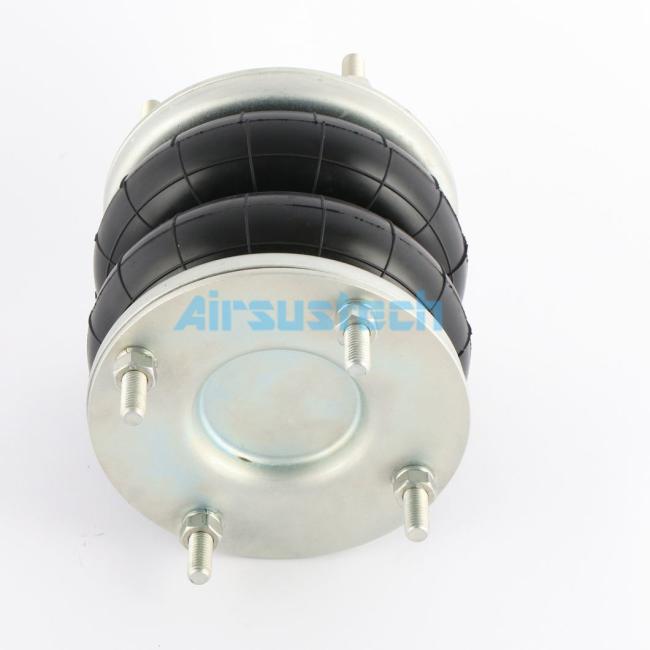

The Related Picture of 6×2
