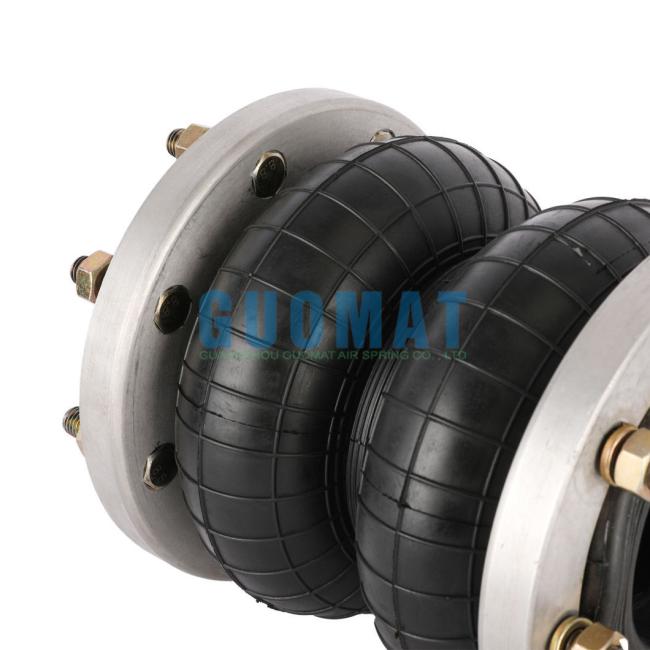

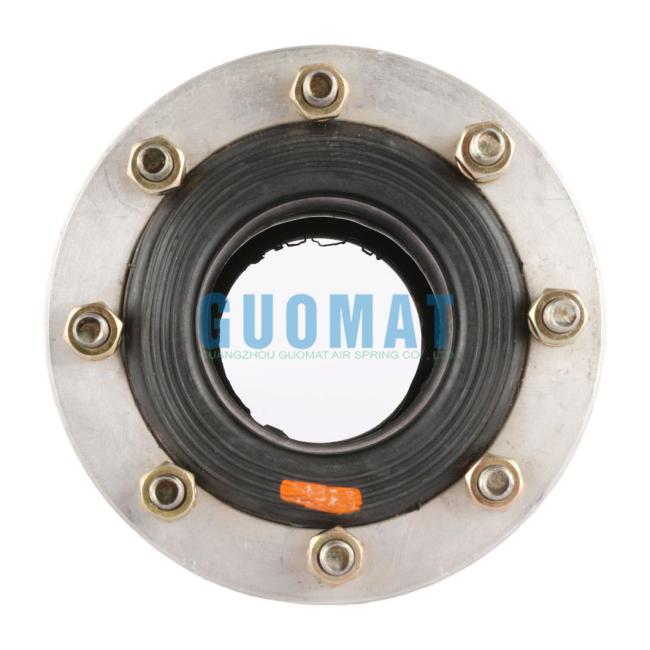

GUOMAT 2H250180 Double Convoluted Air Spring with Flange Ring Max. Diameter 185MM

Product Introduction

Air springs are pneumatic devices that convert the energy of compressed air into pressure. Air cylinders are mechanical devices that apply force by converting the potential energy of compressed gas into kinetic energy. Pneumatics is a technology that uses compressed air to operate different mechanisms. In the industrial sector, it is used in a variety of processes and applications.

Technical Data

Diameter: 185mm
Minimum Compression: 84mm
Extend: 206mm
Full Stroke: 122mm
Rubber Bellows Max Diameter: 270mm (At 0.7Mpa)
Natural Height: 180mm
Cover Plate Diameter: 183mm


Every Standard Air Spring Consists of 4 Layers

• The inner layer which actually contains the air.
• The first layer of fabric reinforced rubber applied at a specific angle.
• The second layer of fabric reinforced rubber which is laid to a specific angle to the first layer.
• The cover to protect the bias fabric plies.

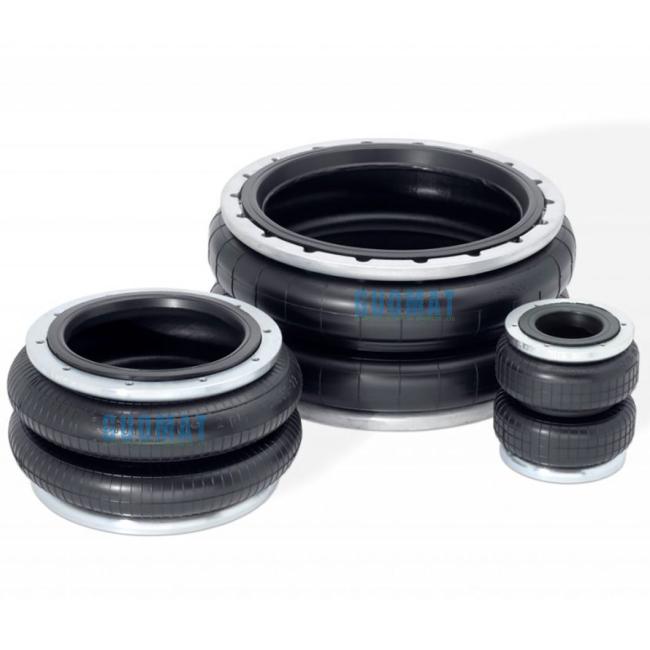

2B Industrial Air Springs We Have

Company Profile


Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Product Images
