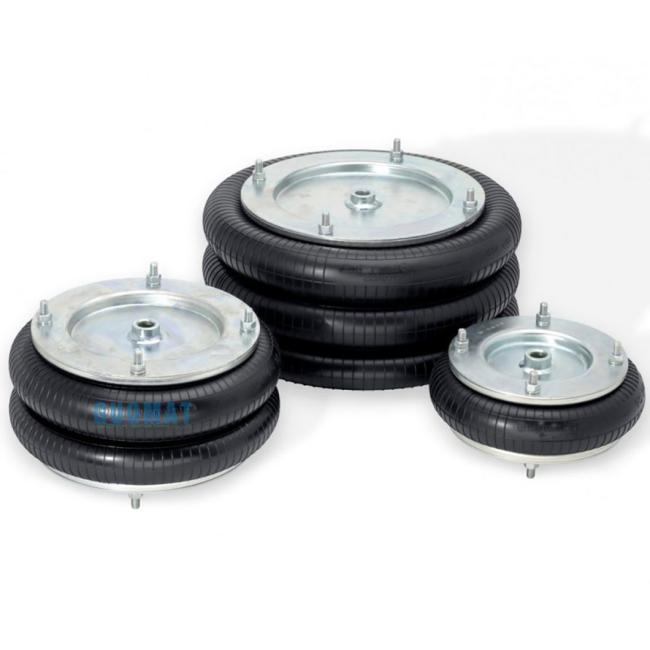

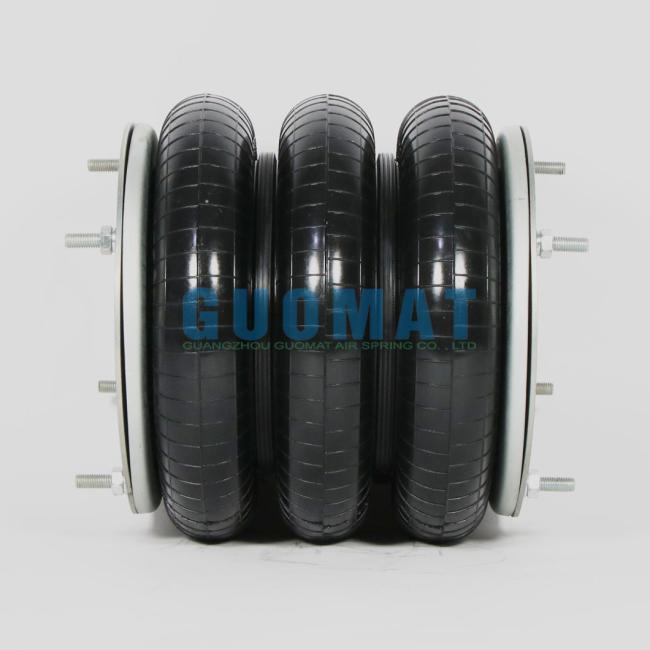

Air Rubber Bellow Contitech FT 412-32 DS Triple Convoluted Air Spring
Brand-new Air Rubber Bellow Contitech FT 412-32 DS Triple Convoluted Air Spring
Air Spring Introduction
Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.
Product Details
Technical Data: 12x3 Convolution Air Spring
Cover plate diameter: 260mm
Bolt: 4pcsX M8
Gas hole: G1/2
The center of the threaded hole: 232mm
Design height: 350mm
Max height: 430mm
Min height: 100mm
Max outer diameter: 330mm
Product Application
GUOMAT industrial products are used in an array of industries ranging from air springs for agriculture equipment to anti-vibration solutions for commercial trailers. Some common industries AIRSUSTECH serves are
- Commercial Truck & Trailer
- Rail Applications
- Agriculture
- Construction and Mining
- Actuators and Isolators
Triple Convoluted Air Shock Suspension
| GUOMAT NO. | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''×3 | 2 3/4''×3 | SP2910 | FT 22-6 DI | 9109010 | ||
| 4 1/2''×3 | W01R584035 | 4 1/2''×3 | SP2895 | FT 44-15 DI | PM/31043 | 9109402 |
| 4 1/2''×3-E | ||||||
| 3B6×3T(AI) | 6''×3(Al) | SP2923 | FT 76-20 DS | PM/31063 | 9109007A | |
| 3B6×3T(Steel) | W01R584095 | 6''×3(Steel) | SP2861 | FT 138-26 DS | M/31063 | 9109007 |
| 3B8×3T | W01R584056 | 8''×3 | SP2863 | FT 138-26 DS | M/31083 | 9109017 |
| 3B10×3T | W01R584059 | 10''×3 | SP1539 | FT 210-32 DS | M/31103 | 9109031 |
| 3B12×3T | W01R584062 | 12''×3 | SP1542 | FT 412-32 DS | M/31123 | 9109051 |
| 3B14 1/2''×3T | W01R584065 | 14 1/2''×3 | SP1558 | FT 614-36 DS | M/31143 | 9109069 |
| 3B16×3T | W01R584068 | 16''×3 | SP2141 | FT 816-40 DS | M/31163 | 9109177 |
