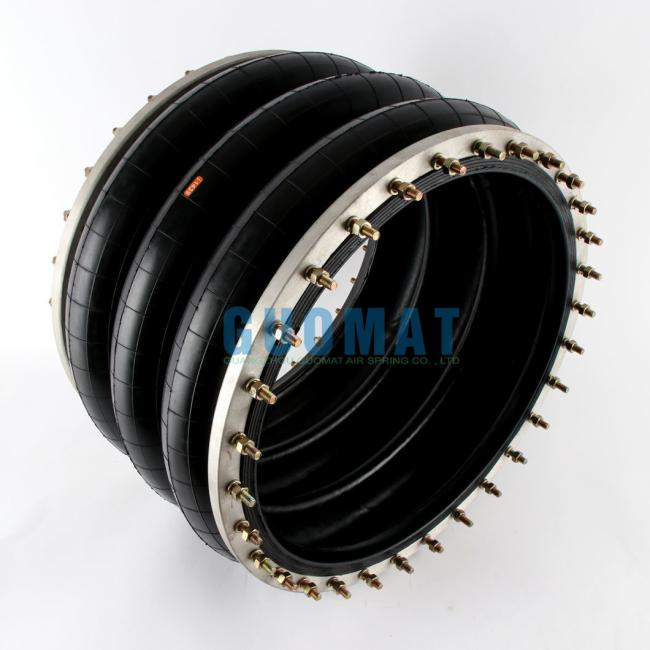

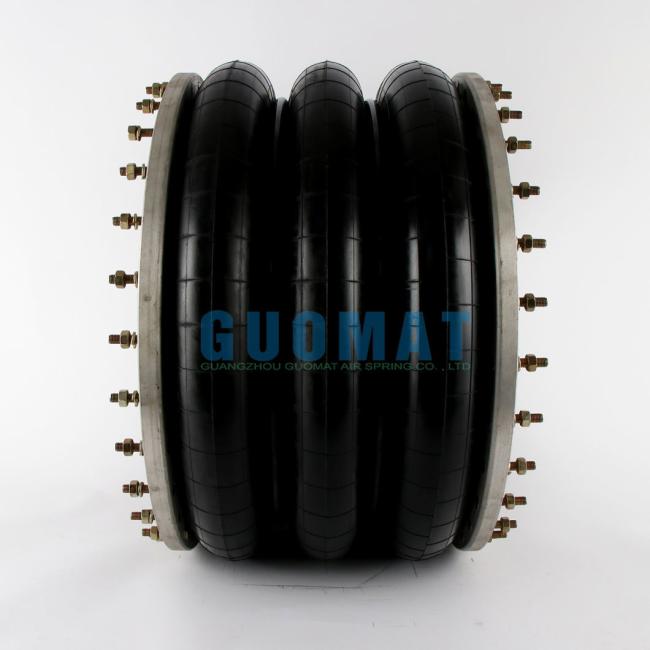

Original GUOMAT 3H630376 Triple Convoluted Air Spring for Industrial Equipment

Product Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

3H630376 Industrial Air Spring Technical Data

Max. Rubber Bellows Width: 720 mm

Design Height: 376 mm

Stucture: Triple Convoluted

Compressed Height: 122 mm

Max. Expanded Height: 458 mm

Top Cover Plate Width: 642 mm

Bottom Cover Plate Width: 642 mm
Screw Type: 32×M10

Center to Center Distance: 605 mm

Packaging & Shipping

Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

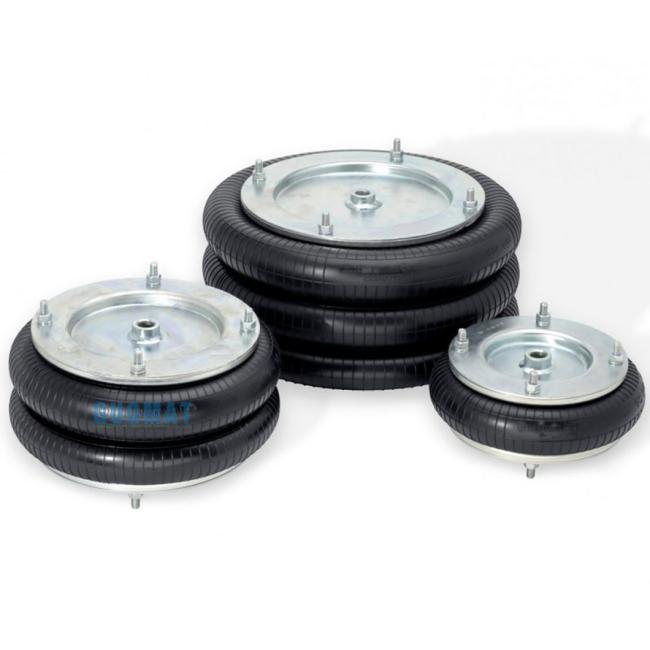

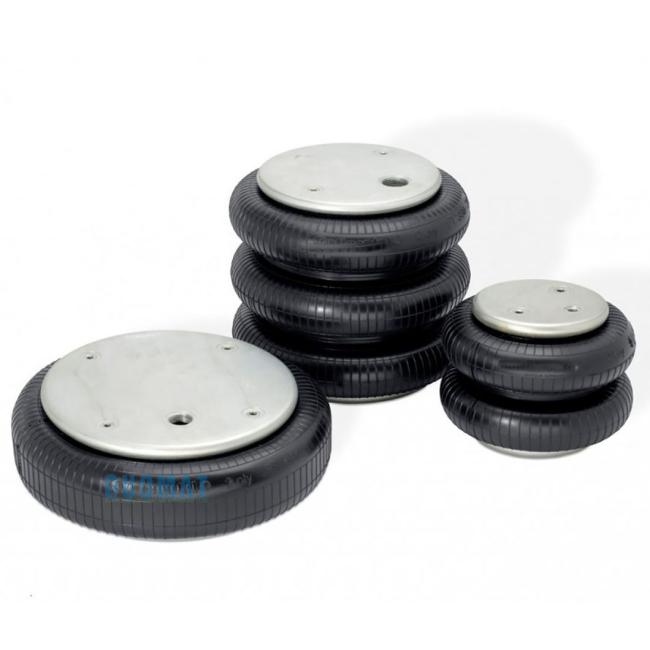

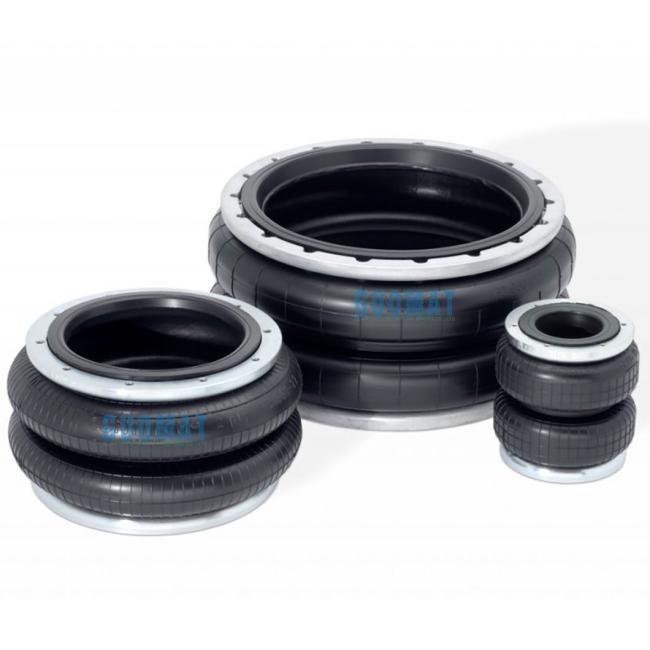

We Have Other Type Flange Connection Air Springs

Company Profile


Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Product Images
