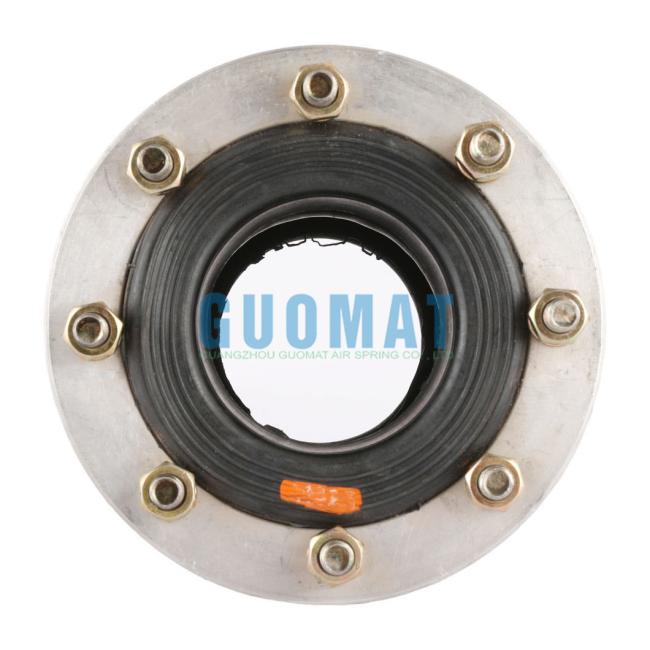

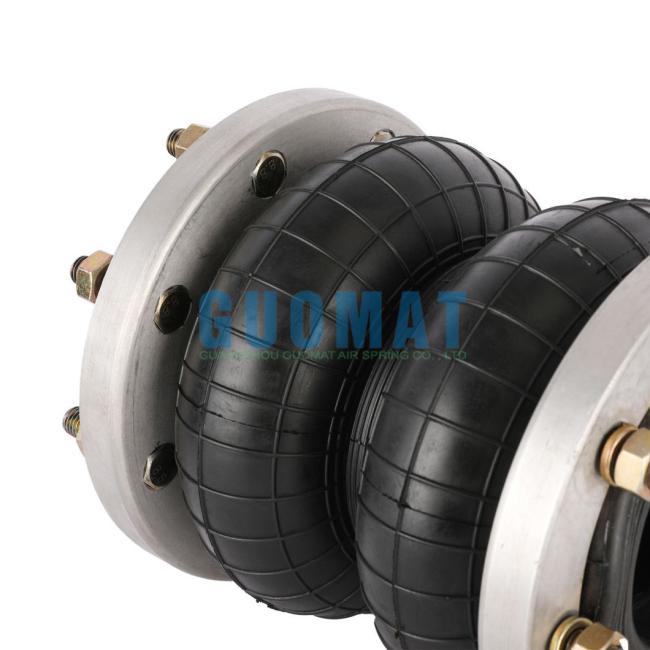

Flange Connection Double Convoluted Air Spring 2H250180 Natural Rubber Bellow
Flange Connection Double Convoluted Air Spring 2H250180 Natural Rubber Bellow
Description of Flange Air Spring
"Flange Connection" refers to the flange connection between the air spring and the vibration platform. This design is not only compact, but also easy to install and maintain. As a connection method, the flange can provide a more stable and reliable connection, ensuring that the air spring does not move or loosen during operation, thereby further improving the shock absorption effect.
Technical Data
Diameter: 185mm
Minimum Compression: 84mm
Extend: 206mm
Full Stroke: 122mm
Rubber Bellows Max Diameter: 270mm (At 0.7Mpa)
Natural Height: 180mm
Cover Plate Diameter: 183mm
Application in Micro Vibration Platform
On micro vibration platform, it is often necessary to avoid any form of vibration from interfering with precision instruments or measuring equipment. Micro vibration platform flange air spring can accurately control the propagation path of vibration, and slow down or isolate external vibration sources by adjusting air pressure. This is very important for laboratory research, semiconductor manufacturing, precision measurement and other fields.
How does it work?
The core principle of micro vibration platform flange air spring is to absorb vibration by using the elastic properties of compressed air. When external vibration is transmitted to the platform, the air in the air spring can be compressed or expanded, thereby alleviating the transmission of vibration. The design of the platform and flange connection ensures the stability of the air spring, which will not be disturbed by other forces and can work continuously and stably.
Otehr Double Convoluted Air Actuators with Flange Ring
| GUOMAT NO. | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''×2 | 2 3/4''×2 | SP2904 | FD 22-4 DI | 9109009 | ||
| 2B4.5×2 | W01R584051 | 4 1/2''×2 | SP2441 | FD 44-10 DI | PM/31042 | 9109401 |
| 2B4.5×2-E | ||||||
| 2B6×2T(AI) | W01R584070 | 6''×(AI) | SP2917 | FD 76-14 DI | PM/31062 | 9109001A |
| 2B6×2T(Steel) | W01R584053 | 6''×2(Steel) | SP1482 | FD 76-14 DS | M/31062 | 9109001 |
| 2B8×2T | W01R584055 | 8''×2 | SP1490 | FD 138-18 DS | M/31082 | 9109011 |
| 2B10×2T | W01R584058 | 10''×2 | SP1538 | FD 210-22 DS | M/31102 | 9109021 |
| 2B12×2T | W01R584061 | 12''×2 | SP1541 | FD 412-22 DS | M/31122 | 9109041 |
| 2B12''×2-E | W01R584039 | 12''×2 Extend | SP2782NB | |||
| 2B14 1/2''×2T | W01R584064 | 14'' 1/2×2 | SP1556 | FD 614-26 DS | M/31142 | 9109061 |
| 2B16×2T | W01R584067 | 16''×2 | SP1557 | FD 816-30 DS | M/31162 | 9109171 |
| 2B21 1/2''×2T | 21 1/2''×2 | SP1408 | M/31212 | 9109153 | ||
| 2B26''×2T | 26''×2 | SP2342 | M/31262 | 9109159 |
