Blasting Test Triple Type Rubber Bellow S-500-3R Yokohama Air Bag Guoamt F-500-3
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description
Blasting Test Triple Type Rubber Bellow S-500-3R Yokohama Air Bag Guoamt F-500-3
This Item Detailed Parameter Table
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-500-3 | S-500-3 | 160 | 270 | 90 | ±68 | 560 |
| Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||
| 1965 | 30.3 | 96.3 | 1255 | 1.8 | 0.69 | 3.9-4.9 |
GUOMAT Air Spring Advantages
- Excellent shock absorption
- Stable shock absorption
- Precise height control
- Wide range of sizes
- Extend equipment life
- Effectively reduce noise
- Air spring shock absorbers are widely used
Yokohama S Series Air Bellow Springs
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
| F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
| F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
| F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
| F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
| F-300-4 | S-300-4R | S 300 4R |
Feedback
We will strive for excellent customer service on every order. Once you have received your product and you are satisfied with it, please leave positive feedback and we will do the same within minutes. Please do not leave Neutral or Negative without contacting us first. We will do our best to fix the problem.

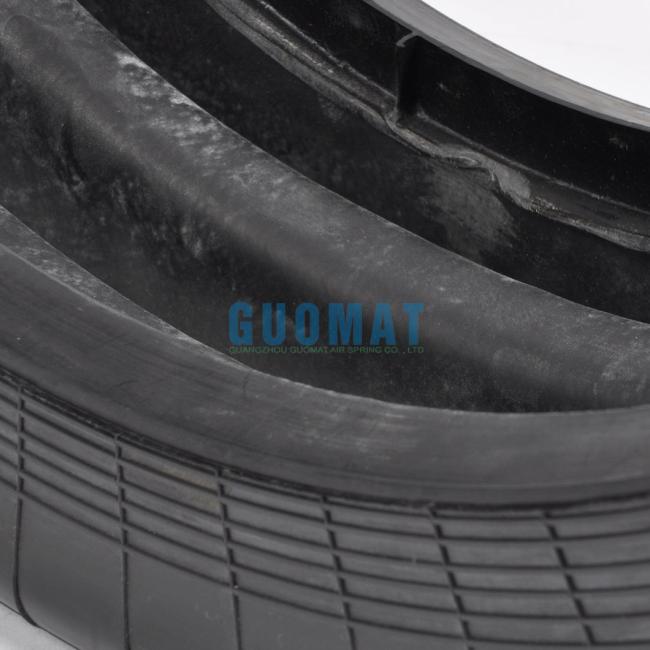

The Detailed Photos of F-500-3
