Original F-300-3 Natural Rubber Bellow Yokohama Air Spring S-240-3R With Two Hoop
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description
Original F-300-3 Natural Rubber Bellow Yokohama Air Spring S-240-3R with Two Hoop
F-300 Air Spring Catalogue Items Detailed Parameter Table
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-300-1 | S-300-1 | 72 | 117 | 40 | ±30 | 400 |
| F-300-2 | S-300-2 | 98 | 158 | 53 | ±40 | 360 |
| F-300-3 | S-300-3 | 152 | 242 | 82 | ±60 | 360 |
| F-300-4 | S-300-4 | 206 | 326 | 111 | ±80 | 360 |
OEM Number
Yokohama: S-300-3R
Yokohama: S3003R
Yokohama: S 300 3R
Yokohama: S-300-3
Yokohama: S3003
Yokohama: S 300 3
Air Bellows Characteristics
- Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
- Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
- They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
- All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
- The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous conditions.
- Air bellows are suitable for vibration applications i.e. device feeders at high frequency
F Series Industrial Air Spring for Punch
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
| F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
| F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
| F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
| F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
| F-300-4 | S-300-4R | S 300 4R |

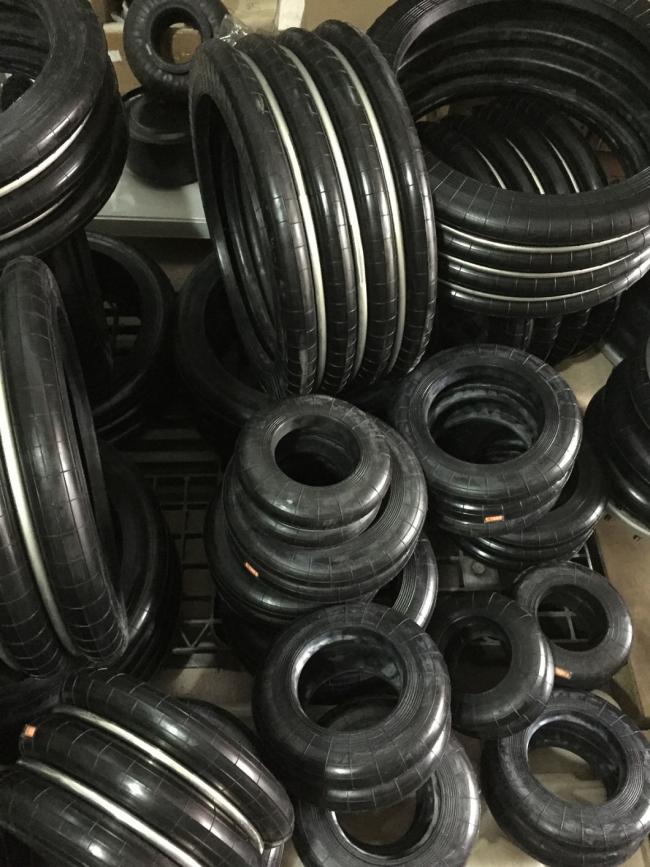

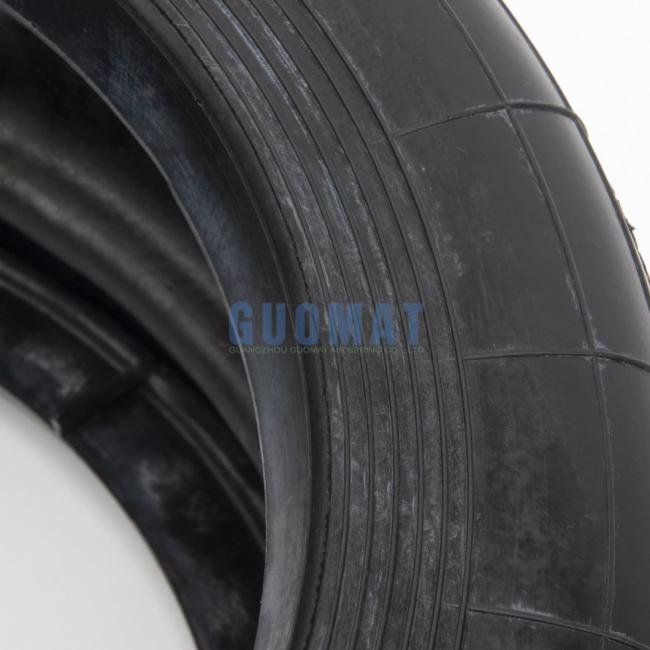

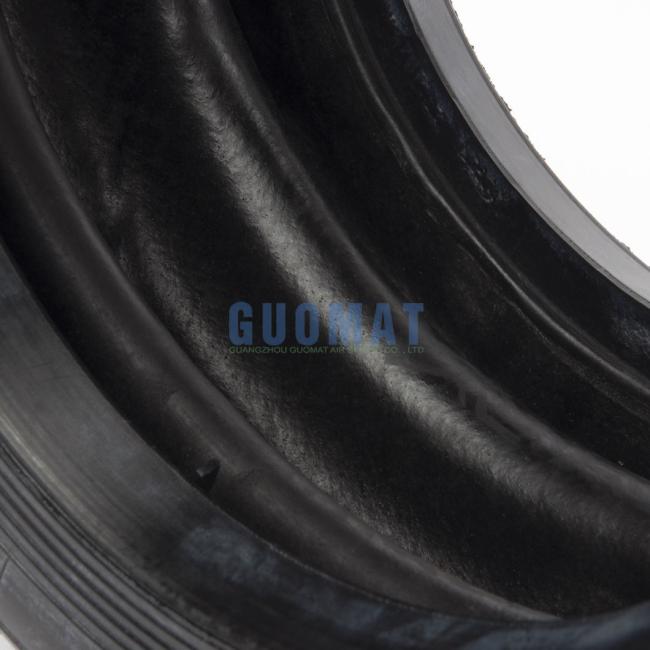

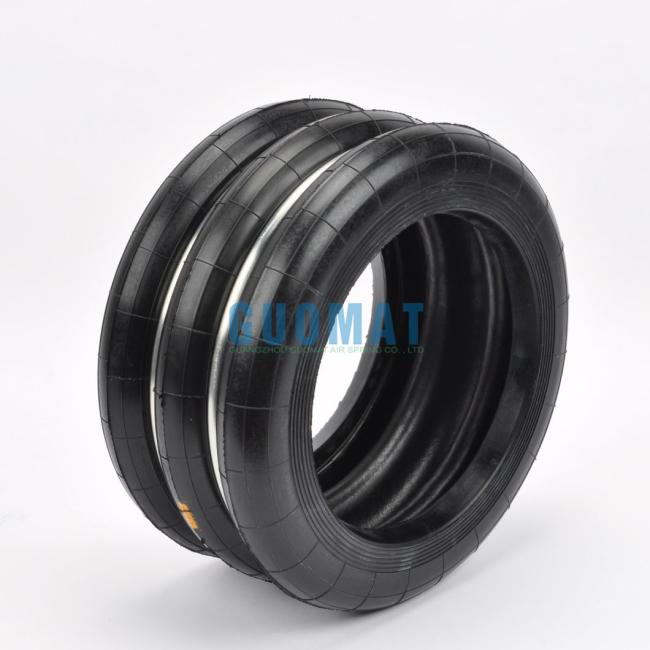

F-300-3 Real Images
