Yokohama S-160-2R Suspension Air Spring for Small Punch and Paper Manufacturing
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description
Yokohama S-160-2R Suspension Air Spring for Small Punch and Paper Manufacturing
F-160-2 Air Spring Introduction
Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
F-160-2 Air Spring Specifications
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-160-1 | S-160-1 | 72 | 102 | 40 | ±25 | 220 |
| F-160-2 | S-160-2 | 98 | 148 | 53 | ±35 | 220 |
| F-160-3 | S-160-3 | 152 | 227 | 82 | ±53 | 220 |
| F-160-4 | S-160-4 | 206 | 306 | 111 | ±70 | 220 |
Product Applications
- Papermaking equipment
- Scissor lift
- Mechanical Hopper vibration and damping handling stop
- Direct force
- Platform lift
- Short stroke mechanical linkage
- Hot foil stamping press
- Impact absorbtion
- Roller tensioning
- Quick lock device
- Reel tensioning
- Machine isolation
GUOMAT Has Punch Press Air Spring Cushion
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | F-600-R1 | 600-1r | F-240-4 | F-240-R4 | 240-4r |
| F-600-2 | F-600-R2 | 600-2r | F-240-3 | F-240-R3 | 240-3r |
| F-600-3 | F-600-R3 | 600-3r | F-240-2 | F-240-R2 | 240-2r |
| F-600-4 | F-600-R4 | 600-4r | F-240-1 | F-240-R1 | 240-1r |
| F-600-5 | F-600-R5 | 600-5r | F-220-4 | F-220-R4 | 220-4r |
| F-550-2 | F-550-R2 | 550-2r | F-220-3 | F-220-R3 | 220-3r |
| F-550-3 | F-550-R3 | 550-3r | F-220-2 | F-220-R2 | 220-2r |
| F-500-2 | F-500-R2 | 500-2r | F-200-2 | F-200-R2 | 200-2r |
| F-500-3 | F-500-R3 | 500-3r | F-200-3 | F-200-R3 | 200-3r |
| F-500-4 | F-500-R4 | 500-4r | F-200-4 | F-200-R4 | 200-4r |
| F-500-5 | F-500-R5 | 500-5r | F-160-1 | F-160-R1 | 160-1r |
| F-450-1 | F-450-R1 | 450-1r | F-160-2 | F-160-R2 | 160-2r |
| F-450-2 | F-450-R2 | 450-2r | F-160-3 | F-160-R3 | 160-3r |
| F-450-3 | F-450-R3 | 450-3r | F-160-4 | F-160-R4 | 160-4r |
| F-450-4 | F-450-R4 | 450-4r | F-120-4 | F-120-R4 | 120-4r |
| F-450-5 | F-450-R5 | 450-5r | F-120-3 | F-120-R3 | 120-3r |
| F-400-2 | F-400-R2 | 400-2r | F-120-2 | F-120-R2 | 120-2r |
| F-400-3 | F-400-R3 | 400-3r | F-100-4 | F-100-R4 | 100-4r |
| F-400-4 | F-400-R4 | 400-4r | F-90-3 | F-90-R3 | 90-3r |
| F-400-5 | F-400-R5 | 400-5r | F-90-2 | F-90-R2 | 90-2r |
| F-350-1 | F-350-R1 | 350-1r | F-90-1 | F-90-R1 | 90-1r |
| F-350-2 | F-350-R2 | 350-2r | F-300-1 | F-300-R1 | 300-1r |
| F-350-3 | F-350-R3 | 350-3r | F-300-2 | F-300-R2 | 300-2r |
| F-350-4 | F-350-R4 | 350-4r | F-300-3 | F-300-R3 | 300-3r |
| F-300-4 | F-300-R4 | 300-4r |

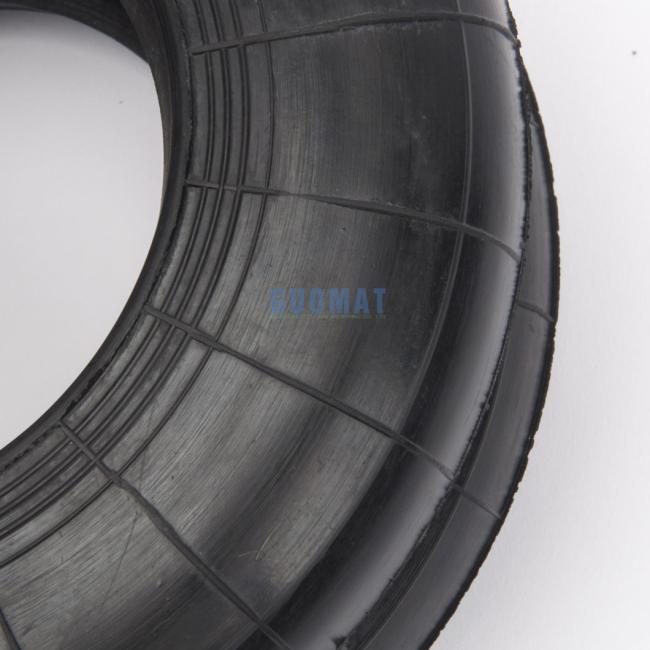

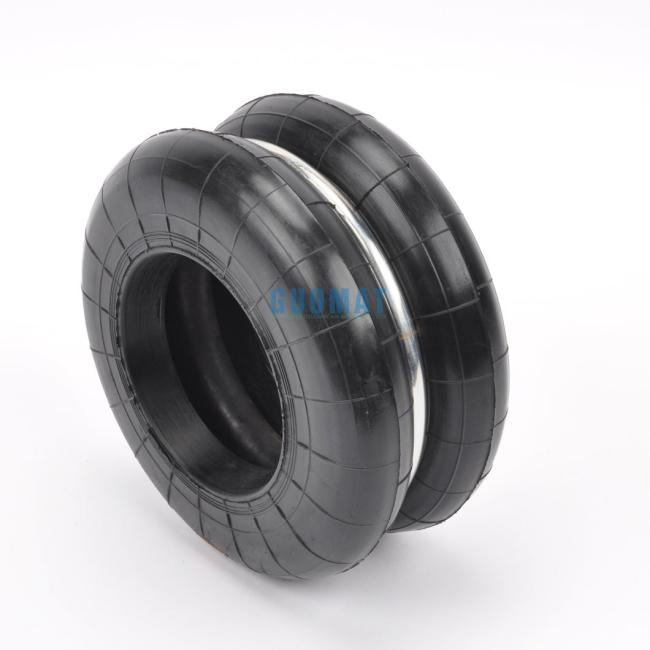

The Detailed Pictures of F-160-2
