Brand New F-160-3 Pneumatic Parts Cross Yokohama S-160-3R Natural Rubber Bellow
Brand New F-160-3 Pneumatic Parts Cross Yokohama S-160-3R Natural Rubber Bellow
F-160-3 Air Bellow Technical Data
Design Height: 152mm
Max. Height: 227mm
Min Height: 82mm
Common Maximum Travel(mm): ±53mm
Compression Max. Outside Diameter (mm): 220mm
Standard height, approximate value at 0.49MPA internal pressure
Efective Area(cm2): 200
Volume(L): 3.4
Load (KN):9.8
Dynamic Spring Constant(n/mm): 157
Natural Vibration Frequence(Hz): 2.0
Maximum Internal Pressure (MPA): 0.88
Internal Pressure Failure(MPA): 2.9-3.9
Refer Numbers
AIRSUSTECH Part No.: F-160-3
YOKOHAMA S-160-3R
YOKOHAMA S 160 3R
YOKOHAMA S-160-3
YOKOHAMA S 160 3
YOKOHAMA S160-3R
YOKOHAMA S160-3
Product Applications
- Applications
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foll stamping press
Other Types of Air Springs
|
GUOMAT NO. |
Yokohama Reference No. |
Hight H(mm) |
Commonly Maximum Stroke(mm) |
The Largest Diameter When Compressed(mm) |
||
|
Design High(mm) |
Maximum High(mm) |
Minimum Height(mm) |
||||
|
F-600-1 |
S-600-1 |
72 |
122 |
40 |
±30 |
700 |
|
F-600-2 |
S-600-2 |
102 |
172 |
57 |
±45 |
660 |
|
F-600-3 |
S-600-3 |
160 |
270 |
90 |
±68 |
660 |
|
F-600-4 |
S-600-4 |
218 |
363 |
123 |
±90 |
660 |
|
F-600-5 |
S-600-5 |
276 |
456 |
156 |
±113 |
660 |
|
F-550-2 |
S-550-2 |
102 |
172 |
50 |
±45 |
610 |
|
F-550-3 |
S-550-3 |
160 |
270 |
90 |
±68 |
610 |
|
F-500-2 |
S-500-2 |
102 |
172 |
57 |
±45 |
560 |
|
F-500-3 |
S-500-3 |
160 |
270 |
90 |
±68 |
560 |
|
F-500-4 |
S-500-4 |
218 |
363 |
123 |
±90 |
560 |
|
F-500-5 |
S-500-5 |
276 |
456 |
156 |
±113 |
560 |
|
F-450-1 |
S-450-1 |
72 |
117 |
40 |
±30 |
510 |
|
F-450-2 |
S-450-2 |
102 |
172 |
57 |
±45 |
510 |
|
F-450-3 |
S-450-3 |
160 |
270 |
90 |
±68 |
510 |
|
F-450-4 |
S-450-4 |
218 |
363 |
123 |
±90 |
510 |
|
F-450-5 |
S-450-5 |
276 |
456 |
156 |
±113 |
510 |
|
F-400-2 |
S-400-2 |
102 |
167 |
57 |
±45 |
460 |
|
F-400-3 |
S-400-3 |
160 |
260 |
90 |
±68 |
460 |
|
F-400-4 |
S-400-4 |
218 |
348 |
123 |
±90 |
460 |
|
F-400-5 |
S-400-5 |
276 |
435 |
156 |
±113 |
460 |
|
F-350-1 |
S-350-1 |
72 |
117 |
40 |
±30 |
450 |
|
F-350-2 |
S-350-2 |
102 |
160 |
55 |
±42 |
410 |
|
F-350-3 |
S-350-3 |
160 |
250 |
85 |
±65 |
410 |
|
F-350-4 |
S-350-4 |
218 |
336 |
118 |
±85 |
410 |
|
F-300-1 |
S-300-1 |
72 |
117 |
40 |
±30 |
400 |
|
F-300-2 |
S-300-2 |
98 |
158 |
53 |
±40 |
360 |
|
F-300-3 |
S-300-3 |
152 |
242 |
82 |
±60 |
360 |
|
F-300-4 |
S-300-4 |
206 |
326 |
111 |
±80 |
360 |
|
F-240-4 |
S-240-4 |
206 |
316 |
111 |
±80 |
300 |
|
F-240-3 |
S-240-3 |
152 |
232 |
82 |
±60 |
300 |
|
F-240-2 |
S-240-2 |
98 |
148 |
53 |
±40 |
300 |
|
F-240-1 |
S-240-1 |
72 |
110 |
40 |
±30 |
340 |
|
F-220-4 |
S-220-4 |
206 |
311 |
111 |
±80 |
280 |
|
F-220-3 |
S-220-3 |
152 |
232 |
82 |
±60 |
280 |
|
F-220-2 |
S-220-2 |
98 |
148 |
53 |
±40 |
280 |
|
F-200-2 |
S-200-2 |
98 |
148 |
53 |
±35 |
260 |
|
F-200-3 |
S-200-3 |
152 |
232 |
82 |
±53 |
260 |
|
F-200-4 |
S-200-4 |
206 |
311 |
111 |
±70 |
260 |
|
F-160-1 |
S-160-1 |
72 |
102 |
40 |
±25 |
220 |
|
F-160-2 |
S-160-2 |
98 |
148 |
53 |
±35 |
220 |
|
F-160-4 |
S-160-4 |
206 |
306 |
111 |
±70 |
220 |
|
F-120-4 |
S-120-4 |
206 |
306 |
111 |
±70 |
180 |
|
F-120-3 |
S-120-3 |
152 |
227 |
82 |
±53 |
180 |
|
F-120-2 |
S-120-2 |
98 |
148 |
53 |
±35 |
180 |
|
F-100-4 |
S-100-4 |
206 |
296 |
121 |
±60 |
160 |
|
F-90-3 |
S-90-3 |
152 |
222 |
87 |
±45 |
160 |
|
F-90-2 |
S-90-2 |
98 |
143 |
58 |
±30 |
160 |
|
F-90-1 |
S-90-1 |
76 |
106 |
46 |
±30 |
125 |

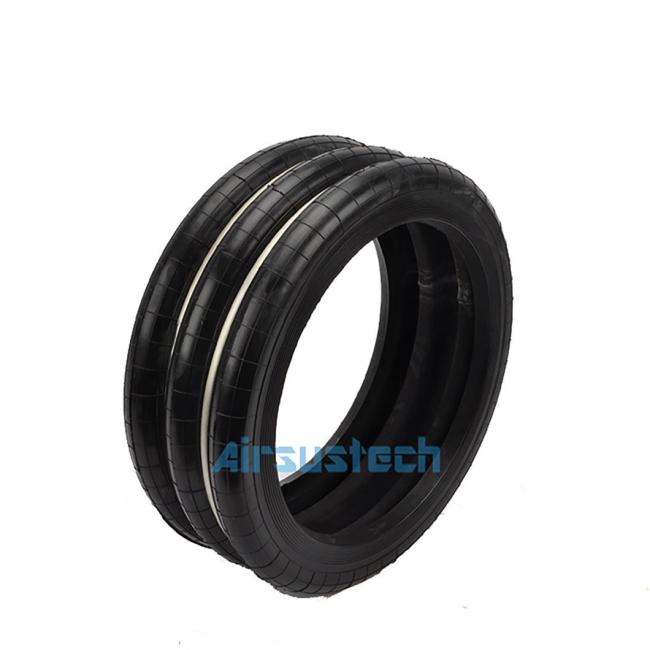

The Related Pictures of F-160-3
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
