Guomat Air Spring F-200-3 Cross Yokohama S-200-3R Triple Type Bellows
Guangzhou Guomat Air Spring F-200-3 Cross Yokohama S-200-3R Triple Type Bellows
Product Introduction

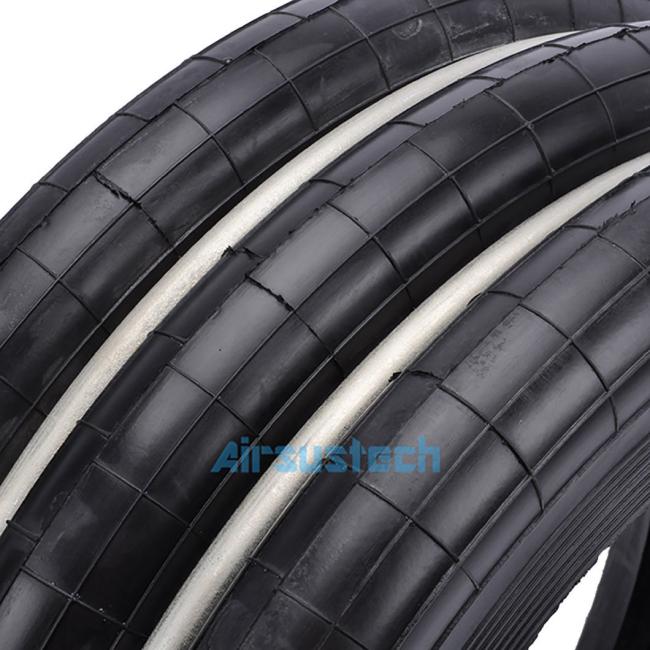

An air spring, also known as an airbag, air cylinder, or airbag cylinder, is a sealed container filled with compressed air, utilizing the gas's compressibility to provide elasticity. It typically features a double-convoluted design, comprising a rubber airbag reinforced with cords and compressed air inside. The inner layer is made from airtight rubber, while the outer layer is crafted from oil-resistant rubber. A steel waist ring located between the joints prevents radial expansion and avoids friction between them. Besides double-convoluted air springs, there are also single, triple, and quadruple-convoluted designs, with more convolutions offering greater elasticity.
OEM Cross References
AIRSUSTECH Part No.: F-200-3
YOKOHAMA S-200-3R
YOKOHAMA S 200 3R
YOKOHAMA S-200-3
YOKOHAMA S 200 3
YOKOHAMA S200-3R
YOKOHAMA S200-3
F-200-3 Detailed Technical Parameters
Height H(mm)
Design Height: 152mm
Max. Height: 232mm
Min Height: 82mm
Common Maximum Travel(mm): ±53mm
Compression Max. Outside Diameter (mm): 260mm
Standard height, approximate value at 0.49MPA internal pressure
Efective Area(cm2): 315
Volume(L): 5.2
Load (KN):15.4
Dynamic Spring Constant(n/mm): 235
Natural Vibration Frequence(Hz): 2.0
Maximum Internal Pressure (MPA): 0.88
Internal Pressure Failure(MPA): 2.9-3.9
Other Types of F Series Industrial Air Springs
|
GUOMAT NO. |
Yokohama Reference No. |
Hight H(mm) |
Commonly Maximum Stroke(mm) |
The Largest Diameter When Compressed(mm) |
||
|
Design High(mm) |
Maximum High(mm) |
Minimum Height(mm) |
||||
|
F-600-1 |
S-600-1 |
72 |
122 |
40 |
±30 |
700 |
|
F-600-2 |
S-600-2 |
102 |
172 |
57 |
±45 |
660 |
|
F-600-3 |
S-600-3 |
160 |
270 |
90 |
±68 |
660 |
|
F-600-4 |
S-600-4 |
218 |
363 |
123 |
±90 |
660 |
|
F-600-5 |
S-600-5 |
276 |
456 |
156 |
±113 |
660 |
|
F-550-2 |
S-550-2 |
102 |
172 |
50 |
±45 |
610 |
|
F-550-3 |
S-550-3 |
160 |
270 |
90 |
±68 |
610 |
|
F-500-2 |
S-500-2 |
102 |
172 |
57 |
±45 |
560 |
|
F-500-3 |
S-500-3 |
160 |
270 |
90 |
±68 |
560 |
|
F-500-4 |
S-500-4 |
218 |
363 |
123 |
±90 |
560 |
|
F-500-5 |
S-500-5 |
276 |
456 |
156 |
±113 |
560 |
|
F-450-1 |
S-450-1 |
72 |
117 |
40 |
±30 |
510 |
|
F-450-2 |
S-450-2 |
102 |
172 |
57 |
±45 |
510 |
|
F-450-3 |
S-450-3 |
160 |
270 |
90 |
±68 |
510 |
|
F-450-4 |
S-450-4 |
218 |
363 |
123 |
±90 |
510 |
|
F-450-5 |
S-450-5 |
276 |
456 |
156 |
±113 |
510 |
|
F-400-2 |
S-400-2 |
102 |
167 |
57 |
±45 |
460 |
|
F-400-3 |
S-400-3 |
160 |
260 |
90 |
±68 |
460 |
|
F-400-4 |
S-400-4 |
218 |
348 |
123 |
±90 |
460 |
|
F-400-5 |
S-400-5 |
276 |
435 |
156 |
±113 |
460 |
|
F-350-1 |
S-350-1 |
72 |
117 |
40 |
±30 |
450 |
|
F-350-2 |
S-350-2 |
102 |
160 |
55 |
±42 |
410 |
|
F-350-3 |
S-350-3 |
160 |
250 |
85 |
±65 |
410 |
|
F-350-4 |
S-350-4 |
218 |
336 |
118 |
±85 |
410 |
|
F-300-1 |
S-300-1 |
72 |
117 |
40 |
±30 |
400 |
|
F-300-2 |
S-300-2 |
98 |
158 |
53 |
±40 |
360 |
|
F-300-3 |
S-300-3 |
152 |
242 |
82 |
±60 |
360 |
|
F-300-4 |
S-300-4 |
206 |
326 |
111 |
±80 |
360 |
|
F-240-4 |
S-240-4 |
206 |
316 |
111 |
±80 |
300 |
|
F-240-3 |
S-240-3 |
152 |
232 |
82 |
±60 |
300 |
|
F-240-2 |
S-240-2 |
98 |
148 |
53 |
±40 |
300 |
|
F-240-1 |
S-240-1 |
72 |
110 |
40 |
±30 |
340 |
|
F-220-4 |
S-220-4 |
206 |
311 |
111 |
±80 |
280 |
|
F-220-3 |
S-220-3 |
152 |
232 |
82 |
±60 |
280 |
|
F-220-2 |
S-220-2 |
98 |
148 |
53 |
±40 |
280 |
|
F-200-2 |
S-200-2 |
98 |
148 |
53 |
±35 |
260 |
|
F-200-4 |
S-200-4 |
206 |
311 |
111 |
±70 |
260 |
|
F-160-1 |
S-160-1 |
72 |
102 |
40 |
±25 |
220 |
|
F-160-2 |
S-160-2 |
98 |
148 |
53 |
±35 |
220 |
|
F-160-3 |
S-160-3 |
152 |
227 |
82 |
±53 |
220 |
|
F-160-4 |
S-160-4 |
206 |
306 |
111 |
±70 |
220 |
|
F-120-4 |
S-120-4 |
206 |
306 |
111 |
±70 |
180 |
|
F-120-3 |
S-120-3 |
152 |
227 |
82 |
±53 |
180 |
|
F-120-2 |
S-120-2 |
98 |
148 |
53 |
±35 |
180 |
|
F-100-4 |
S-100-4 |
206 |
296 |
121 |
±60 |
160 |
|
F-90-3 |
S-90-3 |
152 |
222 |
87 |
±45 |
160 |
|
F-90-2 |
S-90-2 |
98 |
143 |
58 |
±30 |
160 |
|
F-90-1 |
S-90-1 |
76 |
106 |
46 |
±30 |
125 |
