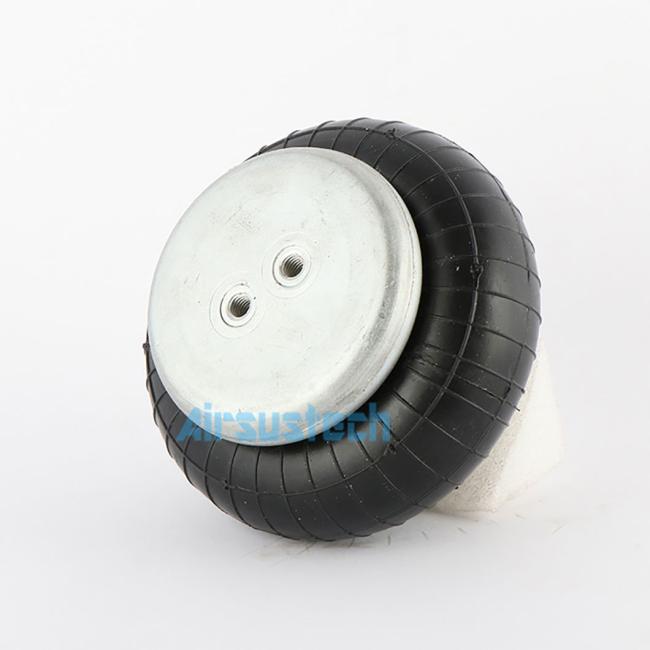

Industrial Air Rubber Bellow Phoenix SP1B04 Pneumatic Air Spring G1/8 Port Size
Industrial Air Rubber Bellow Phoenix SP1B04 Pneumatic Air Spring G1/8 Port Size
Refer Numbers
Contitech: FS 40-6 1/8 M8
Contitech: FS40-6 1/8 M8
Contitech: FS 40 6 1/8 M8
Contitech: FS40 6 1/8 M8
Phoenix: SP 1 B 04
Phoenix: SP1B 04
Phoenix: SP1B04
Weforma: WBE 100-E1
Weforma: WBE 100 E1
Weforma: WBE 100E1
The Detailed Specifications
| The Max. Diameter | 145mm |
| Air hole/air inlet | G1/8 |
| Working stroke | maximum 110 mm to minimum 50 mm |
| Top plate screw (nut) teeth | M8×1.25 |
| Bottom plate screw (nut) teeth | 2 x M8×1.25 |
| Top cover diamete | 90 mm |
| Bottom cover diameter | 90 mm |
| Screw center distance | 20 mm |
| The air hole distance between the nuts | together |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] |
100 | 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 3.4 | 0.6 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 | |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 | |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 | |
| 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 | |
Product Advantages
1. Improve the ride comfort of the vehicle.
2. Improve the stability of vehicle driving control.
3. Enhance the vehicle driving power and braking force on bumpy road.
4. The body height remains the same, will not increase or decrease with the load, reduce or increase.
5. Prolong the service life of tires and brake discs.
6. Reduce electrical, air conditioning, exhaust system, bridge, body and chassis maintenance costs.
7. Prolong the service life of the vehicle and increase the depreciation value.
Single Convoluted Rubber Bellows Air Springs OEM Numbers
| 1B12-305 | FS 40-6 CI | SP2906 |
| 1B14-350 | FS 50-5 CI | SP2334 |
| 1B14-352 | FS 70-7 CI | SP2913 |
| 1B14-364 | FS 100-10 CI | SP1536 |
| 1B15-376 | FS 120-10 CI | SP1537 |
| 1B15-378 | FS 120-12 CI | SP2523 |
| 1B12-313 | FS 200-10 CI | SP1540 |
| 1B14-351 | FS 310-12 CI | SP1543 |
| 1B14-362 | FS 330-11 CI | |
| 1B15-377 | FS 330-14 CI | |
| 1B15-375 | FS 530-11 CI | |
| FS 530-14 CI | ||
| FS 960-12 CI | ||
| FS 1330-11 CI |
The Reated Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
