The Description of Air Spring
Air spring is a sealed container filled with compressed air, using the compressibility of gas to achieve its elastic effect. Commonly known as air bag, air bag cylinder, cylinder and so on. They have It is a double convoluted air - bag spring. It consists of a rubber air bag with cord and compressed air enclosed in it. The inner layer of the airbag is made of air-tight rubber, while the outer layer is made of oil-resistant rubber. A steel waist ring between the joints prevents radial expansion of the middle part and prevents friction between the two joints. In addition to the two, there are single, three and four convoluted air springs. The more nodes, the better the elasticity.
2B7070 Replaces These Air Bellows
| Contitech | FD 70-13 |
| Contitech | FD 70 13 |
| Contitech | FD70-13 |
| Contitech | FD70 13 |
| Contitech | FD7013 |
| Contitech | FD 7013 |
| Fire-stone | W01-095-0111 |
| Fire-stone | W01 095 0111 |
| Fire-stone | W010950111 |
| Fire-stone | WO1-095-0111 |
| Fire-stone | WO1 095 0111 |
| Fire-stone | WO10950111 |
2B7070 Detailed Datas
- Cover Plate
Top Cover Plate Diameter: 105 mm
Screw Center Distance of Top Cover Plate: 44.5 mm
Bottom Cover Plate Diameter: 105 mm
Screw Center Distance of Bottom Cover Plate: 44.5 mm
- Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25
- Gas Hole/Air Inlet/Air Fitting
Air Hole: G 1/4
- Rubber Bellow
Rubber Bellow Max. Diameter: 150 mm
Design Height: 162 mm
Feedback
We will strive for excellent customer service on every order. Once you have received your product and you are satisfied with it, please leave positive feedback and we will do the same within minutes. Please do not leave Neutral or Negative without contacting us first. We will do our best to fix the problem.

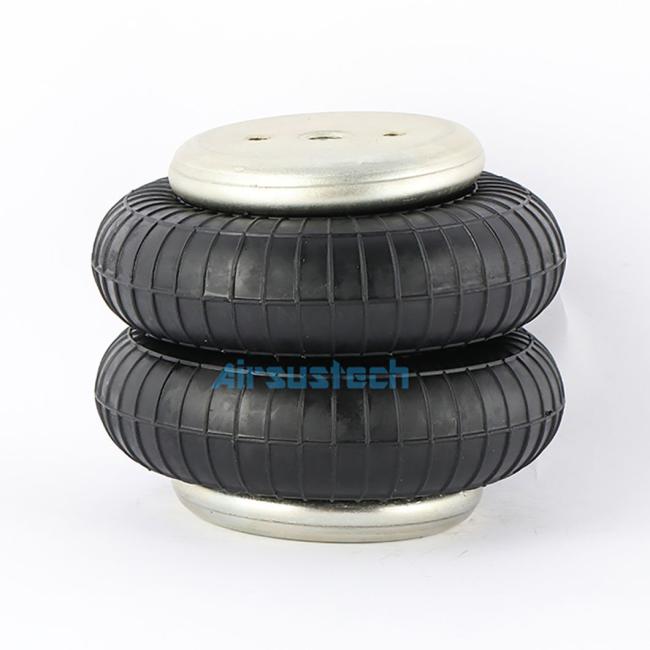

The Real Photos of 2B7070
