FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow
FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow
Alternative Items
| CONTITECH |
FS530-14 FS 530-14 FS 53014 |
| Firestone |
W01-358-7112 W01 358 7112 W013587112 WO1-358-7112 WO1 358 7112 WO13587112 |
| FleetPride | AS7112 |
| Goodyear |
1B14 358 1B14358 1B14-358 578-91-3-352 |
| Taurus | 6326 |
| Triangle |
AS-4339 AS4339 |
| TRP | AS71120 |
| Dayton |
354-7112 354 7112 3547112 |
| Hendrickson | S-13044 |
| Loadguard | SC2012 |
| Fleetrite | 554782C1 |
| Ridewell | 1003587112C |
| SAF Holland | 90557028 |
Product Detailed Datas
- Cover Plate
Top Cover Plate Diameter: 287 mm
Screw Center Distance of Top Cover Plate: 158.8 mm
Bottom Cover Plate Diameter: 287 mm
Screw Center Distance of Bottom Cover Plate: 158.8 mm
- Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth: 2×M8×15
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×15
- Gas Hole/Air Inlet/Air Fitting
Air Hole: G3/4
Rubber Bellow
- Rubber Bellow Max. Diameter: 405 mm
Installation Space: 420 mm
Minimum Height: 51 mm
Maximum Height: 185 mm
Air Spring Should Pay Attention To In The Application
- It is forbidden to use the air spring beyond the recommended safe extension height.
- In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
- Do not use the air spring under the pressure exceeding 0.7Mpa.
- Do not use the air spring in a twisted state.
We Have Other Type Air Springs/Air Suspensions
| Single Convoluted | Double Convoluted | Triple Convoluted |
| FS 40-6 CI | FD 40-10 CI | FT 330-29 CI |
| FS 50-5 CI | FD 70-13 CI | FT 430-32 CI |
| FS 70-7 CI | FD 110-15 CI | FT 530-32 CI |
| FS 100-10 CI | FD 120-17 CI | FT 530-35 CI |
| FS 120-10 CI | FD 120-20 CI | FT 960-34 CI |
| FS 120-12 CI | FD 200-19 CI | FT 1330-35 CI |
| FS 200-10 CI | FD 200-22 CI | |
| FS 310-12 CI | FD 200-25 CI | |
| FS 330-11 CI | FD 330-22 CI | |
| FS 330-14 CI | FD 330-30 CI | |
| FS 530-11 CI | FD 530-22 CI | |
| FS 530-14 CI | FD 530-35 CI | |
| FS 960-12 CI | FD 960-22 CI | |
| FS 1330-11 CI | FD 1330-25 CI |

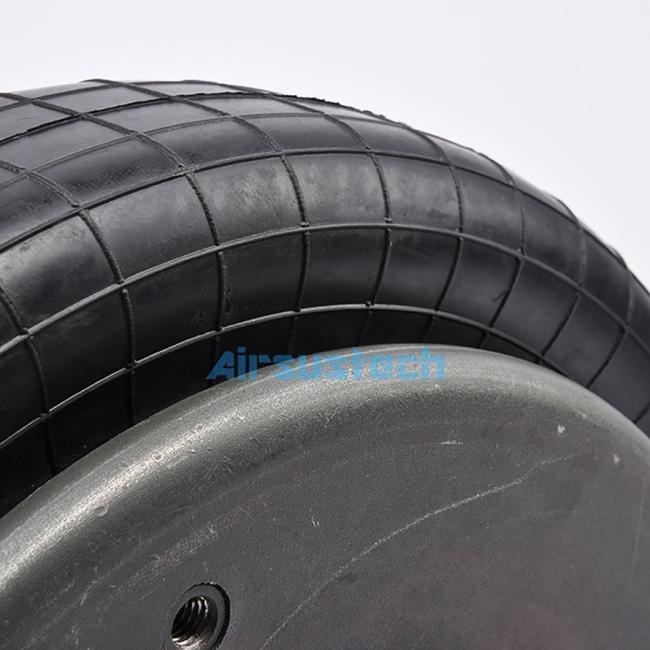

The Related Picture of 1B53014P01
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory Workshop
