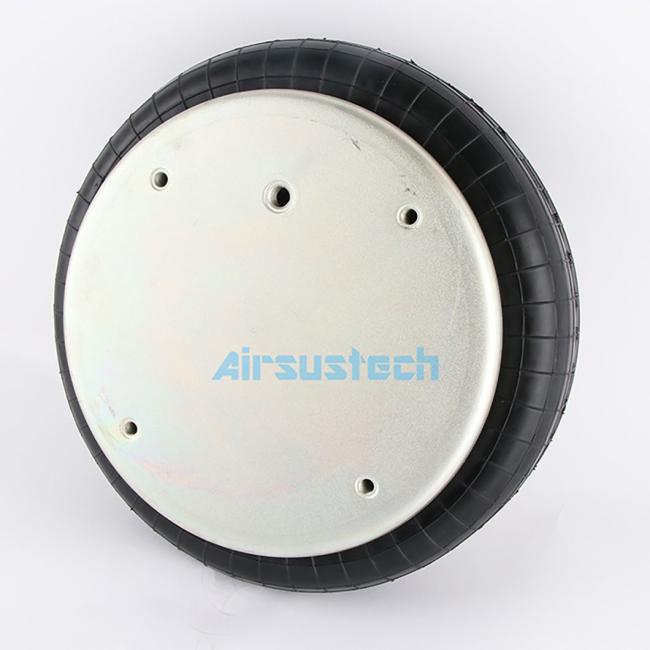

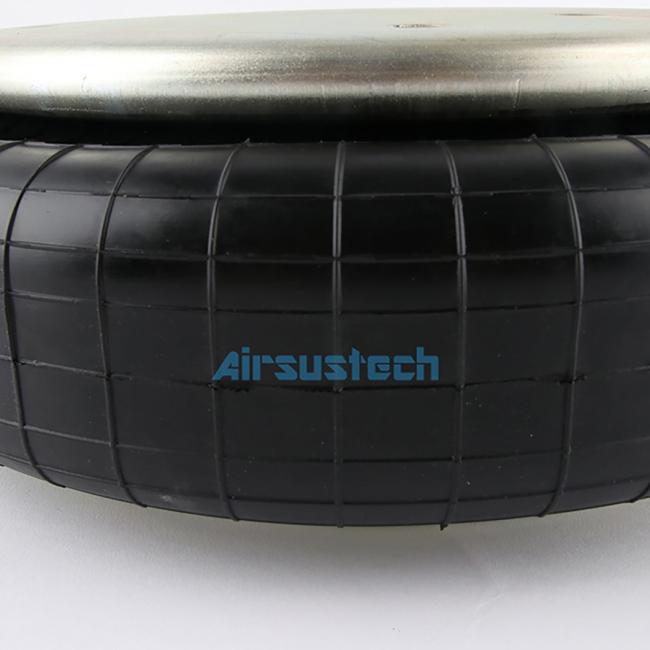

Brand New Industrial Air Spring Goodyear 1B14-350 Single Convoluted Air Bellows
Brand New Industrial Air Spring Goodyear 1B14-350 Single Convoluted Air Bellows
Product Specifications
| Bottom Plate Alignment: Parallel |
| Bottom Plate Center To Center Diameter: 6.25 inches |
| Bottom Plate Diameter: 11.30 inches |
| Bottom Plate Hole Quantity: 3/8-16 blind nuts |
| Bottom Plate Type: Steel |
| Top Plate Alignment: Parallel |
| Top Plate Center To Center Diameter: 6.25 inches |
| Top Plate Diameter: 11.30 inches |
| Top Plate Hole Quantity: 3/8-16 blind nuts |
| Top Plate Type: Steel |
| Expanded Height: 7.2 inches |
| Compressed Height: 2.3 inches |
| Spring Type: Single Convoluted |
| Nut/Blind Nuts Type: 2×3/8-16 blind nuts |
| Air Connection: 1/4NPT |
OEM Cross References
Firestone Style 113
Firestone. W01-358-7103
Firestone. W01 358 7103
Firestone. W013587103
Firestone. WO1-358-7103
Firestone. WO1 358 7103
Firestone. WO13587103
FleetPride AS7103
Goodyear 1B14 350
Goodyear 1B14-350
Goodyear 1B14350
Goodyear Flex No. 578913351
Taurus 6326
Triangle AS-4442
Triangle AS 4442
Triangle AS4442
TRP AS71030
Peerless 0550 00015&
Peerless 0550-00015&
Peerless 055000015&
The Must be Enough Clearance Around The Air Bellow
- The full surface of the metal parts is to be used to bear the forces.
- Air bellows must be equipped with lateral guides.
- Deflate the air bellows fully before removing.
- Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and weldin sparks.
- Should the air bellow be subjected to special media in an application, ask Precision Engineering for further information, specifying the medium, temperature and concentration.
We Have Other Single Convoluted Air Rubber Bellows
| Single Convoluted | Double Convoluted | Triple Convoluted | |
| 1B12-305 | 2B6-530 | 2B6-531 | 3B12-304 |
| 1B14-350 | 2B6-532 | 2B6-535 | 3B14-351 |
| 1B14-352 | 2B6-536 | 2B7-540 | 3B14-354 |
| 1B14-364 | 2B7-541 | 2B7-542 | 3B15-376 |
| 1B15-376 | 2B7-545 | 2B7-546 | 3B15-378 |
| 1B15-378 | 2B8-550 | 2B8-552 | 3B12-305 |
| 1B12-313 | 2B8-553 | 2B8-554 | 3B14-353 |
| 1B14-351 | 2B9-200 | 2B9-201 | 3B15-375 |
| 1B14-362 | 2B9-204 | 2B9-205 | 3B15-377 |
| 1B15-375 | 2B9-216 | 2B9-250 | |
| 1B15-377 | 2B9-251 | 2B9-253 | |
| 2B12-309 | 2B12-218 | ||
| 2B12-425 | 2B12-429 | ||
| 2B12-437 | 2B12-416 | ||
| 2B14-352 | 2B14-353 | ||
| 2B14-354 | 2B14-355 | ||
| 2B14-362 | 2B14-363 | ||
| 2B14-452 | 2B15-375 | ||
| 2B15-376 | 2B15-377 | ||
| 2B15-378 | 2B19-8433 | ||
| 2B22-8539 | |||
