Double Convoluted Air Bellow W01-358-7550 by Firestone Heavy Truck Air Spring
Double Convoluted Air Bellow W01-358-7550 by Firestone Heavy Truck Air Spring
Product Specifications
| Bottom Plate Alignment: Parallel Bottom Plate Center To Center Diameter: 157 mm Bottom Plate Diameter: 224.5 mm Bottom Plate Hole Quantity: 1/2-13UNC Bottom Plate Type: Steel |
| Top Plate Alignment: Parallel Top Plate Center To Center Diameter: 157 mm Top Plate Diameter: 224.5 mm Top Plate Hole Quantity: 1/2-13UNC Top Plate Type: Steel |
| Expanded Height: 104 mm Compressed Height: 363 mm Spring Type: Double Convoluted Nut/Blind Nuts Type: 2×1/2-13UNC Max Rubber Bellow Diameter: 343 mm |
|
Air Connection: 1/4-18 NPT
Operation: Gas-filled
|
OEM Cross References
Firestone: W01 358 7550
Firestone: W013587550
Firestone: WO1-358-7550
Firestone: WO1 358 7550
Firestone: WO13587550
Contitech: FD331-26 541
Contitech: FD331 26 541
Goodyear: 2B12-346
Goodyear: 2B12 346
Goodyear: 2B12-440
Goodyear: 2B12 440
Goodyear: 578923315
Triangle: 6375
Triangle: 4480
Watson&Chalin: AS-0087
Histeer: 10315
We Have Other Double Convoluted Air Suspensions
| 2B6-530 | 2B6-531 | FD 40-10 CI | SP2907 |
| 2B6-532 | 2B6-535 | FD 70-13 CI | SP2441 |
| 2B6-536 | 2B7-540 | FD 110-15 CI | SP2917 |
| 2B7-541 | 2B7-542 | FD 120-17 CI | SP1482 |
| 2B7-545 | 2B7-546 | FD 120-20 CI | SP1490 |
| 2B8-550 | 2B8-552 | FD 200-19 CI | SP1538 |
| 2B8-553 | 2B8-554 | FD 200-22 CI | SP1541 |
| 2B9-200 | 2B9-201 | FD 200-25 CI | SP2782NB |
| 2B9-204 | 2B9-205 | FD 330-22 CI | SP1556 |
| 2B9-216 | 2B9-250 | FD 330-30 CI | SP1557 |
| 2B9-251 | 2B9-253 | FD 530-22 CI | SP1408 |
| 2B12-309 | 2B12-218 | FD 530-35 CI | SP2342 |
| 2B12-425 | 2B12-429 | FD 960-22 CI | |
| 2B12-437 | 2B12-416 | FD 1330-25 CI | |
| 2B14-352 | 2B14-353 | ||
| 2B14-354 | 2B14-355 | ||
| 2B14-362 | 2B14-363 | ||
| 2B14-452 | 2B15-375 | ||
| 2B15-376 | 2B15-377 | ||
| 2B15-378 | 2B19-8433 | ||
| 2B22-8539 |

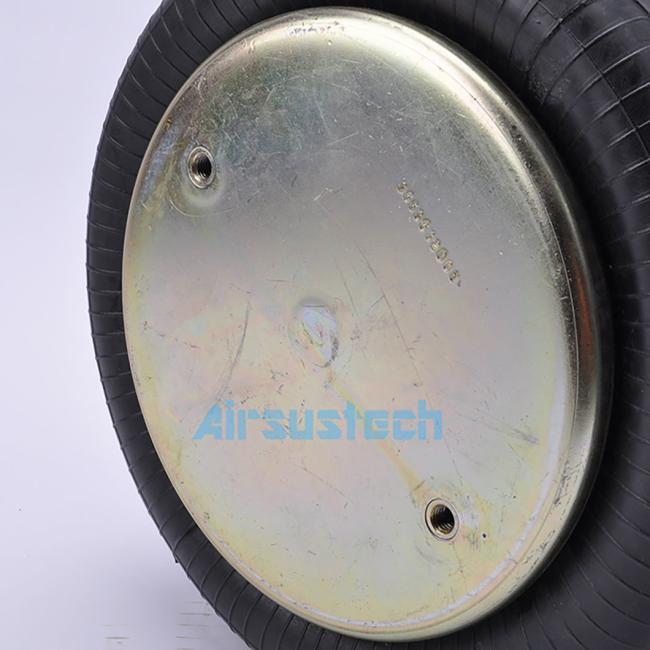

The Related Pictures of 2B7550 Air Springs
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.

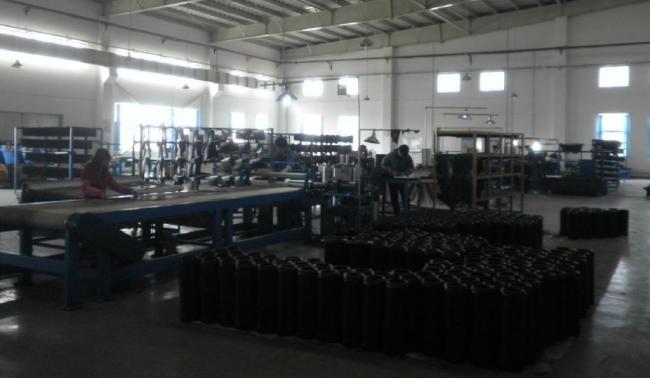

Factory Workshop
