Double Convoluted Industrial Air Spring W01-358-7424 Firestone 2B12-300 Goodyear For Industry

Double Convoluted Industrial Air Spring W01-358-7424 Firestone 2B12-300 Goodyear For Industry

2B7421 Specifications and Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: 2 x 1/2-13UNC
    Top plate screw center distance : 157.5 mm
2. Bottom cover plate screw (nut) teeth: 2 x 1/2-13UNC
    Bottom plate screw center distance : 157.5 mm
2. Air hole/air inlet/air fitting air hole/air inlet: 1/4NPT
    Screw Center Distance Between Gas Hole and Nut : 73mm
3. Top plate diameter (width): 231mm, bottom cover diameter (width): 231 mm
4. Rubber bellows natural diameter: 298mm
    Rubber bellows Max. diameter: 325mm
5. Min height: 81mm
    Max. height: 305mm
6. Bumper block/bumper block without bumper
7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop

Cross-Reference Numbers

Firestone Style: 22

Firestone No.: W01-358-7424

FleetPride: AS7424

Goodyear: 2B12-300

Goodyear Flex No.: 578923309

Taurus: 6316

triangle: AS-4327

Vibracoustic: V SP 2B 22R-7424

TRP: AS74240

Automan: SP2B22R-7424

OE Manufacturer Number

Four advantages of Guomat

Quality assurance, the industry's first choice
Guangzhou Guomat Air Spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and development and production of air springs, and has cooperated closely with many companies for many years.
Complete products and wide application
Guomat products are widely used in passenger cars, trucks, high-end cars, industrial equipment (equipment that requires shock absorption and pressure adjustment) and other product fields, and are sold well at home and abroad.
Experienced and professional team
Over the years, a group of outstanding professional engineers at home and abroad have been organized to take root in the first-line production site, and actively summarize and sort out the characteristics of the production process in combination with the actual production situation.
Perfect after-sales service system
With warm and thoughtful service, honesty and trustworthiness, persistence, excellence, and enterprising spirit

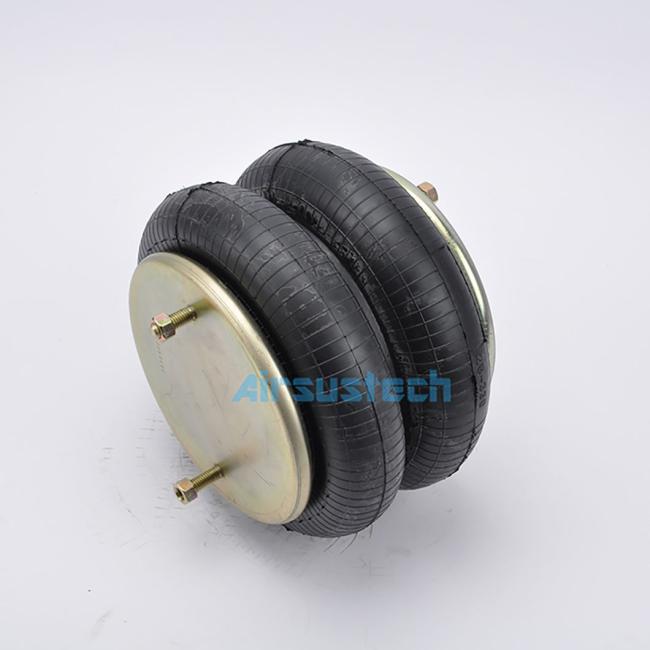

The related picture of 2B7424 air spring
