GUOMAT Air Suspension 2B6910 Cross Triangle 6325/4320 Pneumatic Air Bellows
GUOMAT Air Suspension 2B6910 Cross Triangle 6325/4320 Pneumatic Air Bellows
Product Details
- Top Cover Plate Diameter: 160 mm
- Screw Center Distance of Top Cover Plate: 89 mm
- Bottom Cover Plate Diameter: 160 mm
- Screw Center Distance of Bottom Cover Plate: 89 mm
- Top Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
- Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
- Air Hole: 1/4NPTF
- Rubber Bellow Max. Diameter: 251 mm
- Minimum Height: 75 mm
- Maximum Height: 260 mm
Part Interchanges
| Firestone Air Spring | W01-358-6910 | Triangle Air Spring | 4320 |
| Firestone Air Spring | WO1-358-6910 | Taurus Air Spring | KF218-6910 |
| Firestone Air Spring | W01 358 6910 | Brake&Wheel Air Spring | M3501 |
| Firestone Air Spring | WO1 358 6910 | Dina Air Spring | A812719/AZ812719 |
| Firestone Air Spring | W013586910 | Dayton Air Spring | 3546910 |
| Firestone Air Spring | WO13586910 | Leland Air Spring | Sc2011 |
| Contitech Air Spring | FD 200-19 320 | Navistar Air Spring | 554783C1 |
| Contitech Air Spring | FD 200 19 320 | Hendrickson Air Spring | S8768/458433 |
| Contitech Air Spring | FD 20019 320 | Ridewell Air Spring | 1003586910C |
| Goodyear Air Spring | 2B9-200/202/216 | SAF Holland Air Spring | 57006910 |
| Goodyear Air Spring | 578423202 | Trailers De Air Spring | 133128 |
| Triangle Air Spring | 6325 | Tuthill Air Spring | 1371 |
| Watson&Chalin Air Spring | AS-0001/AS-0156G |
1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius
Other Triangle Convoluted Air Suspensions/Air Bags/Air Springs
| 6374/4474 | 6316/4327 | 6374/4468 | 6316/4343 |
| 6374/4467 | 6316/4434 | 6324/4504 | 6316/4363 |
| 6325/4505 | 6329/4321 | 6325/4326 | 6328/4371 |
| 6325/4320 | 6374/4514 | 6325/4504 | 6375/4480 |
| 6325/4450 | 6321 | 6325/4506 | 6412/4530 |
| 6325/4510 | 6392/4509 | 6395/4524 | 6364/4546 |
| 6325/4315 | 4757/4703 | 6392/4509 | 6334/4520 |
| 6392/4509 | 6334/4430 | 6332/4427 | 6334/4431 |
| 6332/4454 | 6334/4432 | 6332/4453 | 6334/4433 |
| 6332/4426 | 6334/4469 | 6332/4427 | 6334/4466 |
| 6332/4463 | 6334/4432 | 6332/4429 | 6319/4336 |
| 6332/4507 | 6316/4368 | 6332/4511 | 6316/4331 |
| 6316/4363 | 6316/4367 | 6316/4472 | 6316/4366 |
| 6316/4471 | 6316/4365 | 6316/4471 | 6316/4365 |
| 6316/4500 | 6316/4313 | 6316/4334 | 6316/4346 |
| 6316/4364 |

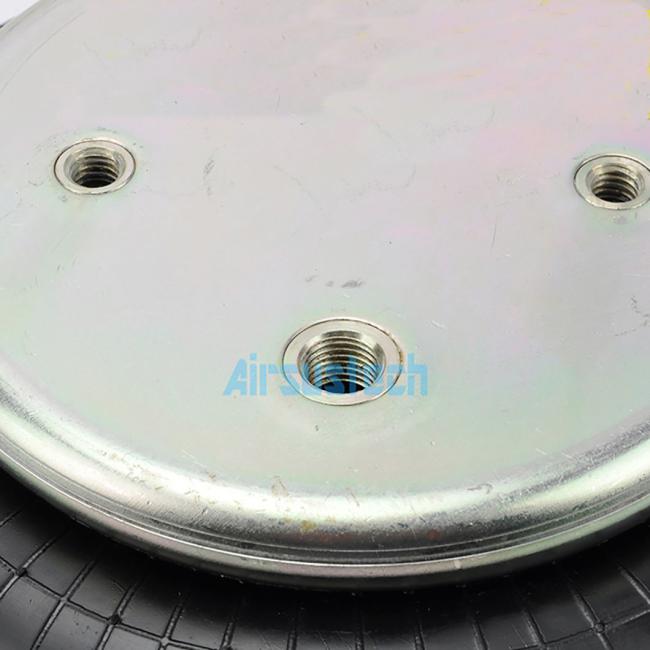

2B6910 Detailed Photos
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
