Contitech FT 22-6 DI CR Triple Convolutions Industrial Air Spring G1/4 Air Connection
Contitech FT 22-6 DI CR Triple Convolutions Industrial Air Spring G1/4 Air Connection
OEM NO.
Contitech FT 22-6 DI CR
Contitech FT 22 6 DI CR
Contitech FT 22-6
Contitech FT22-6
Contitech 63920
Specifications and Detailed Technical Parameters
- Nut/blind nut
Screw (nut) teeth of the bottom cover plate: 2×M6
- Air hole/air inlet/air fittings
- Rubber Bellows
Diameter (width) of the bottom cover plate: 78mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 80mm
Rubber bellows stroke: 80mm-140m
Required installation space: 95mm
- Bumper block/bumper block
- Belt loop/Belt loop/Girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤100N
Overall weight with clamped plates: 0.53kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 130 | 0.43 | 0.60 | 0.76 | 0.94 | 1.12 | 1.31 | 0.25 |
| 110 | 0.72 | 0.96 | 1.21 | 1.46 | 1.71 | 1.96 | 0.21 | |
| 90 | 0.93 | 1.23 | 1.53 | 1.84 | 2.14 | 2.45 | 0.15 | |
Other types Contitech DI Air Spring( Air Bellows) We could offer
| Size | Max. Rubber Bellows Diameter | Rubber bellows stroke | Air Inlet |
| FS 22-3 DI CR | 80mm | 50mm-70mm | G1/4 |
| FS 44-5 DI CR | 125mm | 50mm-90mm | G3/8 |
| FS 76-7 DI CR | 175mm | 55mm-110mm | G1/2 |
| FD 22-4 DI CR | 80mm | 65mm-110mm | G1/4 |
| FD 44-10 DI CR | 125mm | 65mm-150mm | G3/8 |
| FD 76-14 DI CR | 178mm | 80mm-195mm | G1/2 |
| FT 44-15 DI CR | 125mm | 90mm-200mm | G3/8 |
| FT 76-20 DI CR | 178mm | 100mm-290mm | G1/2 |

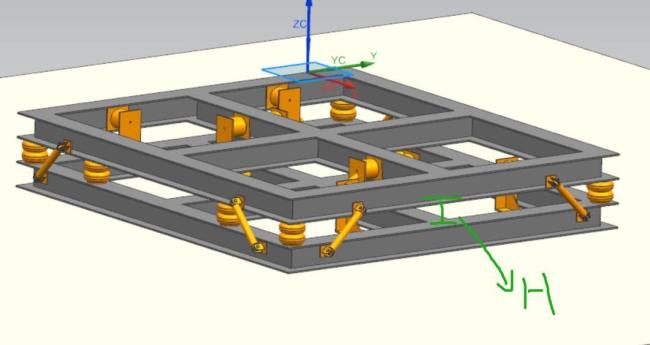

Application range of air spring
Air springs can guarantee the stability of mechanical equipment; improve the self-vibration of mechanical equipment during operation; prolong the service life of mechanical equipment; reduce the wear and tear of mechanical equipment due to vibration. To keep the system stable; to make the system not resonate when disturbed; to stabilize soon after being disturbed. Therefore, it is more and more widely used in the following industrial field:
Power plant (rotary) equipment, such as pipelines, transformers, diesel generators, steam-driven feed pumps, steam turbine generators, condensers, control rooms, fans, coal mills, crushers, water pumps;
Precision instruments, such as three-coordinates, roll grinders, control cabinets, marine precision instruments;
Forging hammer equipment, such as forging hammers, presses, high-speed punches;
Test bench equipment, such as engine test bench, motor vehicle test bench
ContiTech Air Spring is a product line developed by ContiTech Air Spring Systems, a division of Continental AG. ContiTech Air Spring Systems has been producing high-quality air springs and air actuators for over 50 years. Their product portfolio includes components and complete systems for adjustable air suspension systems in commercial vehicles, buses, rail vehicles, stationary machines, and foundation mounts
