China Industrial Air Spring Contitech FD 76-14 DI Double Air Bellows for Damping
China Industrial Air Spring Contitech FD 76-14 DI Double Air Bellows for Damping
2B6×2P Air Spring Specifications
| Cover Plate | |
| Top Cover Plate Diameter | 178 mm |
| Screw Center Distance of Top Cover Plate | 127 mm |
| Bottom Cover Plate Diameter | 178 mm |
| Screw Center Distance of Bottom Cover Plate | 127 mm |
| Nut/Blind Nuts | |
| Top Cover Plate Screw(Nut) Tooth | 4×M8 |
| Bottom Cover Plate Screw(Nut) Tooth | 4×M8 |
| Gas Hole/Air Inlet/Air Fitting | |
| Air Connection | G1/2 |
| Rubber Bellow | |
| Rubber Bellow Max. Diameter | 178 mm |
| Installation Space | 195 mm |
| Minimum Height | 80 mm |
| Maximum Height | 195 mm |
OEM Cross References
Contitech FD 76-14 DI CR
Contitech FD 76 14 DI CR
Norgren PM/31062
Norgren PM 31062
Norgren PM31062
Fire-stone W01-R58-4070 - (6 x 2 Alu )
Fire-stone W01 R58 4070 - (6 x 2 Alu )
Fire-stone W01R584070 - (6 x 2 Alu )
Dunlop Part NO.6"x2
Product Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Equipment Longevity
Other Types Convoluted Air Suspensions
| GUOMAT NO. | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''×2 | 2 3/4''×2 | SP2904 | FD 22-4 DI | 9109009 | ||
| 2B4.5×2 | W01R584051 | 4 1/2''×2 | SP2441 | FD 44-10 DI | PM/31042 | 9109401 |
| 2B4.5×2-E | ||||||
| 2B6×2T(AI) | W01R584070 | 6''×(AI) | SP2917 | FD 76-14 DI | PM/31062 | 9109001A |
| 2B6×2T(Steel) | W01R584053 | 6''×2(Steel) | SP1482 | FD 76-14 DS | M/31062 | 9109001 |
| 2B8×2T | W01R584055 | 8''×2 | SP1490 | FD 138-18 DS | M/31082 | 9109011 |
| 2B10×2T | W01R584058 | 10''×2 | SP1538 | FD 210-22 DS | M/31102 | 9109021 |
| 2B12×2T | W01R584061 | 12''×2 | SP1541 | FD 412-22 DS | M/31122 | 9109041 |
| 2B12''×2-E | W01R584039 | 12''×2 Extend | SP2782NB | |||
| 2B14 1/2''×2T | W01R584064 | 14'' 1/2×2 | SP1556 | FD 614-26 DS | M/31142 | 9109061 |
| 2B16×2T | W01R584067 | 16''×2 | SP1557 | FD 816-30 DS | M/31162 | 9109171 |
| 2B21 1/2''×2T | 21 1/2''×2 | SP1408 | M/31212 | 9109153 | ||
| 2B26''×2T | 26''×2 | SP2342 | M/31262 | 9109159 |

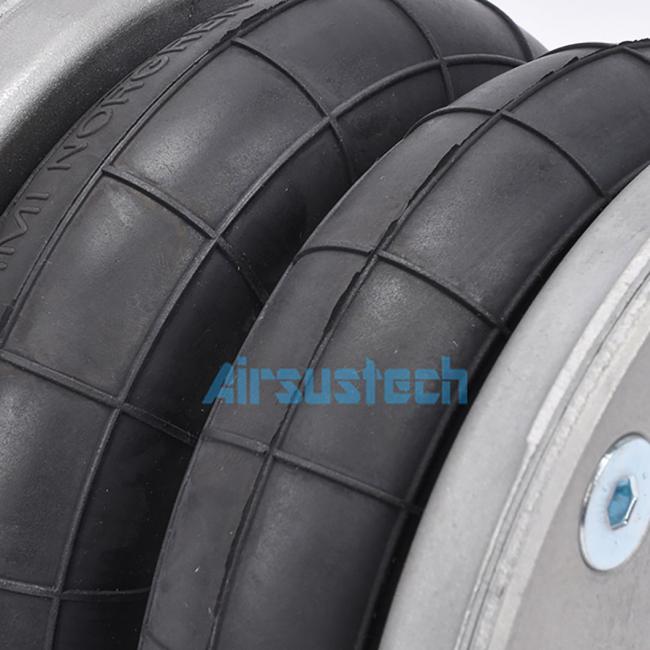

The Related Picture of 6x2
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory Workshop
