High Quality Guomat 2B5338 Double Convoluted Air Shock Suspension G1/2 Air Hole
High Quality Guomat 2B5338 Double Convoluted Air Shock Suspension G1/2 Air Hole
Product Introduction
Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
Product Technical Datas
| Bottom Plate Alignment: Parallel Bottom Plate Center To Center Diameter: 157.5 mm Bottom Plate Diameter: 231 mm Bottom Plate Hole Quantity: 2×M10×1.5 Bottom Plate Type: Steel |
| Top Plate Alignment: Parallel Top Plate Center To Center Diameter: 157.5 mm Top Plate Diameter: 231 mm Top Plate Hole Quantity: 2×M10×1.5 Top Plate Type: Steel |
| Expanded Height: 290 mm Compressed Height: 75 mm Spring Type: Double Convoluted Nut/Blind Nuts Type: 2×M10×1.5 Max Rubber Bellow Diameter: 325 mm |
| Air Connection: G1/2 Operation: Gas-filled |
Six Reasons to Choose Us
1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound
Other Airride Air Springs We Could Provide
| Single Convolutions | |
| Fire-stone : W01 358 7731 | Fire-stone : W01 M58 6165 |
| Fire-stone : W01 358 7564 | Fire-stone : W01 358 7598 |
| Fire-stone : W01 M58 6374 | FIRE-STONE FLEX 115 |
| FIRE-STONE W01 358 0118 | Fire-stone : W01 358 7008 |
| Fire-stone: W01 358 7009 | Fire-stone. W01 358 7103 |
| Fire-stone. W01 358 7112 | |
| Double Convolutions | |
| FIRE-STONE W01 095 0111 | FIRE-STONE W01 358 7325 |
| FIRE-STONE W01 358 7327 | Fire-stone : W01 358 7325 |
| Fire-stone : W01 M58 6353 | FIRE-STONE W01 M58 7894 |
| Fire-stone : W01 358 6926 | Fire-stone : W01 358 6910 |
| Fire-stone : W01 358 6902 | Fire-stone : W01 358 6927 |
| Fire-stone : W01 358 6943 | Fire-stone : W01 358 6946 |
| Fire-stone : W01 358 6945 | Fire-stone : W01 M58 7679/20C2 |
| Fire-stone:W01 358 6948 | FIRE-STONE W01 358 6951 |
| FIRE-STONE W01 358 6952 | Fire-stone:W01 M58 6944/20-2 |
| Fire-stone:W01 M58 6891/20-2 | Fire-stoneW01 358 7180/22 |
| FIRE-STONE W01 358 0226 | FIRE-STONE 22T3 095 .0257 |
| FIRE-STONE fole 210 095.008 | Fire-ston:W01 358 7400/22 |
| Fire-stone:W01 358 7405 | Fire-stone:W01 358 7406 |
| Fire-stone:W01 358 7424 | Fire-stone:W01 358 7545 |
| Fire-stone:W01 358 7550 | Fire-stone:W01 358 7555 |
| Fire-stone : W01 358 7136 | FIRE-STONE W01 358 7146 |
| FIRE-STONE W01 358 7143 | Fire-stone:W01 358 7557 |
| Fire-stone:W01 358 7781 | Fire-stone:W01 095 0289 |
| Fire-stone. W01 095 0508 | Fire-stone.W01 358 9529 |
| Fire-stone Style 21D-2 | |
| Triple Convolutions | |
| Fire-stone:W01 358 8008 | Fire-stone:W01 358 8010 |
| Fire-stone:W01 358 8027/38 | Fire-stone:W01 358 8029 |
| Fire-stone:W01 358 8030/38 | FIRE-STONE W01 358 8006 |
| FIRE-STONE FLEX 38R/38D | FIRE-STONE W01 358 7808 |
| FIRE-STONE W01 358 7798 | FIRE-STONE FLEX 313D |
| FIRE-STONE FLEX 313D | FIRE-STONE W01 358 7800 |
| FIRE-STONE W01 358 7818 | FIRE-STONE FLEX 313D |

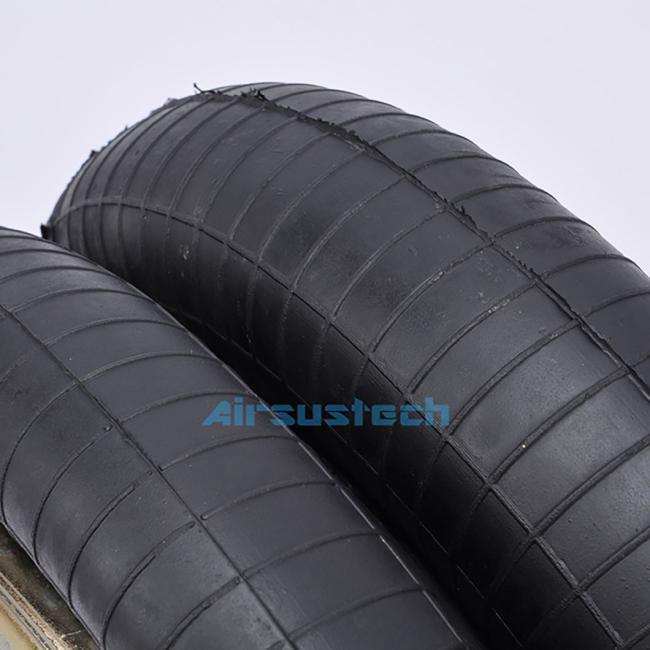

Product Images
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
