China Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring for sale

Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring

Price Negotiable
Price: $89.9-99.9/pc
MOQ: 6pcs
Delivery Time: 3-7 Working Days
Brand: GUOMAT
Product Description

Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring


Product Description


Product Name: Triple Convoluted Air Spring
Brand: GUOMAT
Model Number: 3B8006
Warranty: 1 Year
Material: Rubber, Steel


Cross-Reference Number

Contitech 64561
Contitech FT330-29 430
Contitech FT 330-29 430
Firestone 38
Firestone W01-358-8006
FleetPride AS8006
Taurus 6334
Triangle AS-4430
Automann SP3B22R-8006



OE Manufacturer

Meritor 200620


Specifications and Detailed Technical Parameters: 3B8006


Nut/blind nut

The top/bottom cover plate screw: 2×M10×1.5

The screw center distance of the Top cover plate: 157.5mm

The screw center distance of the bottom cover plate: 157.5 mm

Screw And Gas Hole Distance of Top Cover Plate:73mm

Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 295mm

The Working Stroke: 297mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop


The related picture of 3B8006

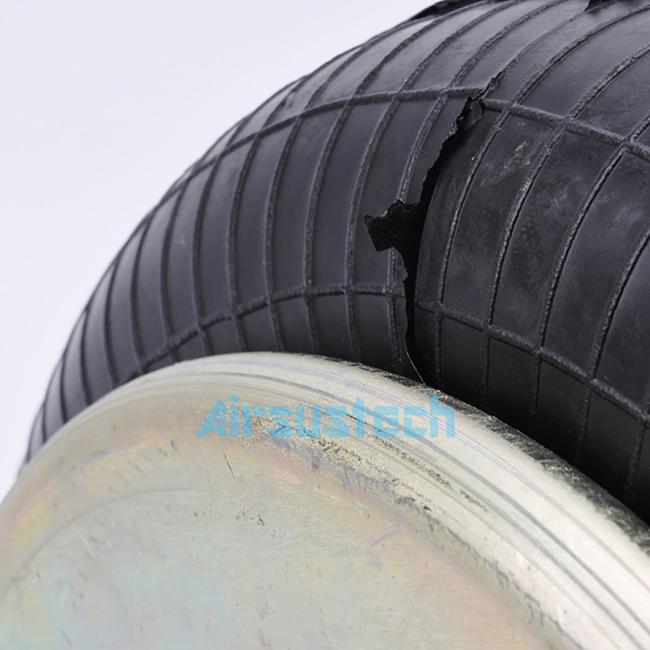

Contitech FT330-29 430 Air Bellows Suspension Parts Triple Convoluted Spring
