Product Description
The Goodyear Air Spring is a flexible rubber bladder supported by compressed air. It is essentially an inflatable rubber container that replaces traditional steel coil or leaf springs.
GOODYEAR: 1B12-318
GOODYEAR: 1B 12-318
GOODYEAR: 1B12 318
GOODYEAR: 578-91-3-301
GOODYEAR: 578 91 3 301
GOODYEAR: 578913301
Refer No.
Continental ContiTech: FS 330-11 CI 62743
Continental ContiTech: FS 330-11 3/4 M8
Continental ContiTech: FS 330-11 G3/4 M8
Continental ContiTech: FS 330-11 CI G3/4
Continental ContiTech: FS 330-11 CI G3/4 M8
Continental ContiTech: FS 330-11 CI / FS330-11CI / FS33011CI
Continental ContiTech Bellow: FS 330-11 / FS330-11 / FS33011
Fire-stone No.: W01-M58-6011 / W01 M58 6011 / W01M586011
Fire-stone Style: 19
Dunlop FR: 12"x1 S12100
Enidine: YI-1B12-318 / YI 1B12 318 / YI1B12318
Norgren:PM/31121 / PM 31121 / PM31121
Nominal (inch) x convolutions: 12″ x 1 / 12"x1 / 12x1
Specifications and Detailed Technical Parameters: Goodyear 1B12-318
Maximum diameter at 7 bar: 328mm
Maximum height: 140mm
Maximum travel: 89mm
Bead type: 3
Dim. A( Blind hole center): 158 mm
Dim. B: 73mm
Natural frequency at 5 bar: 2.5 fn( Hz)
Material: 2 layer standard line
About W01-M58-6011 Firestone Air Spring
| Style 19 | Blind nuts,1/4BSP | W01-M58-6008 |
| Double Convoluted | Blind nuts,1/4BSP,bumper | W01-M58-6373 |
| Blind nuts,3/4BSP | W01-M58-6011 | |
| Blind nuts,3/4BSP,bumper | W01-M58-6372 | |
| Countersunk steel bead rings,40mm bolts,nuts,washers | W01-M58-6975 | |
| Rubber bellows only | W01-358-0134 |
| Fore Table | |||||||
| Assembly Height(mm) | Volume@7 BAR(cu cm) | EFF Area@7 BAR(cm sq) | kN Force | ||||
| @3 BAR | @4 BAR | @5 BAR | @6 BAR | @7 BAR | |||
| 130 | 6379 | 345 | 9.61 | 13.28 | 16.74 | 20.6 | 24.15 |
| 120 | 6004 | 398 | 11.24 | 15.49 | 19.48 | 23.85 | 27.87 |
| 110 | 5555 | 444 | 12.67 | 17.39 | 21.84 | 26.65 | 31.1 |
| 100 | 5093 | 482 | 13.85 | 18.9 | 23.74 | 28.92 | 33.71 |
| 90 | 4566 | 513 | 14.87 | 20.18 | 25.35 | 30.86 | 35.94 |
| 80 | 4048 | 539 | 15.67 | 21.16 | 26.59 | 32.38 | 37.69 |
| 70 | 3474 | 559 | 16.27 | 21.93 | 27.58 | 33.60 | 39.13 |
| 60 | 2923 | 574 | 16.68 | 22.48 | 28.26 | 34.45 | 40.15 |

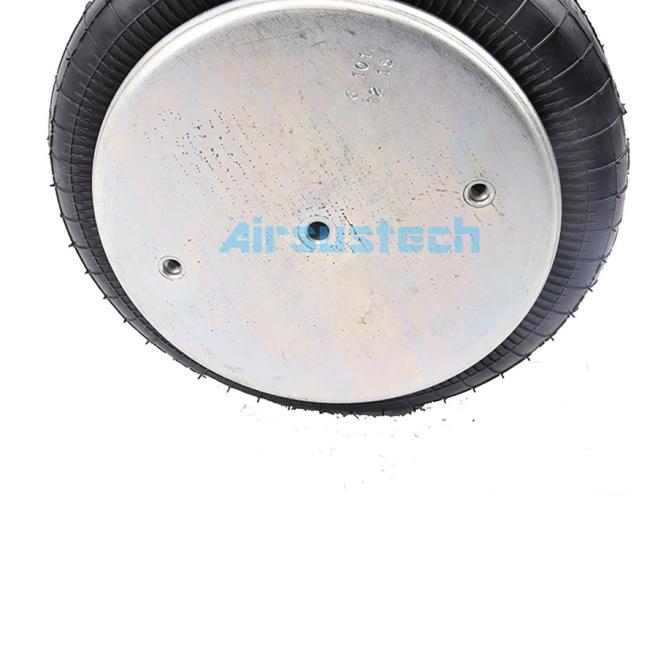

The related picture of 1B12-318
