Convoluted Rubber Air Spring GF400/215-2 Rubber Air Bellows For Equipment Shock Absorption

Technical parameters

Rubber Bellows MAX Diameter: 262 mm

Rubber Bellows Natural Diameter: 225 mm / 8.88 inches

The Working Stroke: MAX 325mm to MIN 81 mm

Maximum Height: 325 mm

Minimum Height: 81 mm / 3.12 inches

Stroke Height: 224 mm

Key Advantages of Air Springs

• Adjustable Stiffness: By varying the internal air pressure, the suspension's firmness or softness can be flexibly adjusted to suit varying loads and field conditions.
• Non-Linear Stiffness: Its stiffness varies with travel, providing soft, comfortable filtering of small vibrations and strong support during large impacts.
• Long Life: Compared to traditional leaf springs, air springs offer longer fatigue life and lower maintenance costs.
• Lightweight: They contribute to overall vehicle weight reduction.

Installing the GF400/215-2 Air Spring on a Lifting Platform

Before installing the GF400/215-2 air spring bellows, ensure that the lifting platform is completely de-energized and securely supported by mechanical struts. This is the most important safety precaution. During installation, first bleed the air from the old bellows, disconnect its air intake line, and remove the center bolt or flange bolts to remove the old bellows. Next, thoroughly clean the upper and lower mounting surfaces to ensure they are free of debris. Then, accurately center the new bellows and place them in position. Manually pre-tighten all bolts. Finally, use a torque wrench to tighten all bolts in a diagonal pattern to the manufacturer's specified torque value. After installation, connect the air line and perform a low-speed inflation test. Use soapy water to check all connections for leaks. Perform several complete lifting and lowering cycles to verify smooth and stable operation, with no unusual distortion or noise.

Other types GF-Air Spring

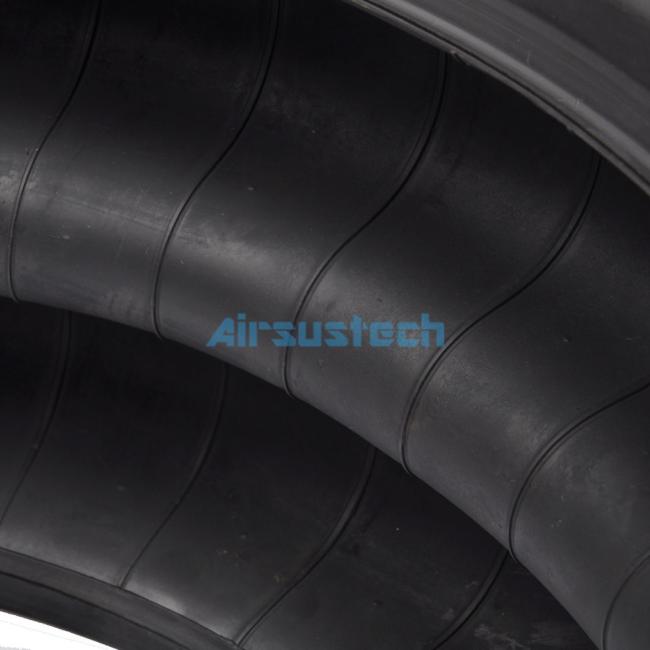

The related picture of GF400/215-2
