Triangle 6374 4474 Convoluted Industrial Air Springs For Cam Follower
Triangle 6374 4474 Convoluted Industrial Air Springs For Cam Follower
Cross Reference
Triangle: 6374
Triangle: 4474
Holland: 90557226
Firestone:W01-358-7008
Firestone: W01 358 7008
Firestone: W013587008
Firestone: WO13587008
Firestone: WO1 358 7008
Firestone: WO1-358-7008
Firestone: w013587008
Firestone: w01 358 7008
Firestone: w01-358-7008
Contitech: FS 330-11 474
Contitech: FS 330 11 474
Contitech: FD 33011474
Good Year: 1B12-300
Good Year: 1B12-313
The detailed Specifications and techical paremeters:1B5330
Blind Nut
Top plate screw(nut) teeth: 2 x 3 / 8-16UNC
Bottom plate screw(nut) teeth: 2 x 3 / 8-16UNC
Screw center distance: 157.5mm
Cover Plate
Top cover diameter: 9.00 inches / 231 mm
Bottom cover diameter: 9.00 inches / 231 mm
Air Inlet/Air Hole/Air Fittings
1/4 N P.T.F.
The air hole distance between the nuts: 73mm
Rubber Bellows
The Max. diameter: 325mm
Height/Working stroke
Minimum height: 55mm
Maximum height:160mm
Bumper block
Without
Belt loop/Girdle ring/Girdle hoop
Without
Min. pressure: 0 bar
Return force to min. height: ≤300N
Overall weight with clamped plates: 4.1kg
|
Vibration isolation - dynamic characteristic values Design height H: recommended 130mm, minimum 100mm |
|||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [kN] | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29 | 7 |
| Spring rate [N/mm] | 264.5 | 329 | 393.5 | 458 | 522.5 | 587 | 7 |
| Natural frequency [Hz] | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 | 7 |
|
1B5530 Pneumatic application - static characteristic values Force F [kN] |
|||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | |
| Height H [mm] | 140 | 9.46 | 12.7 | 15.8 | 19.5 | 22.8 | 26 |
| 120 | 11.9 | 15.7 | 19.6 | 23.8 | 27.8 | 31.8 | |
| 100 | 13.6 | 18.1 | 22.7 | 27.6 | 32.1 | 36.7 | |
1B5330 Guomat air springs used in cam follower
Introducing an air spring into the cam follower greatly increases the life of the cam. The air spring eliminates the rigid contact and friction of traditional cam followers, thereby significantly reducing wear on the cam surface, and also makes the cam mechanism run more smoothly, reducing fatigue damage to the entire mechanism.
In addition, this air spring can also be used in industrial equipment such as vibrating packaging machines, hopper boxes, compressors, commercial washing machines, consoles, vibrating screens, blowers and motors, control panels, pipe crawlers, swashplate motors, etc. .

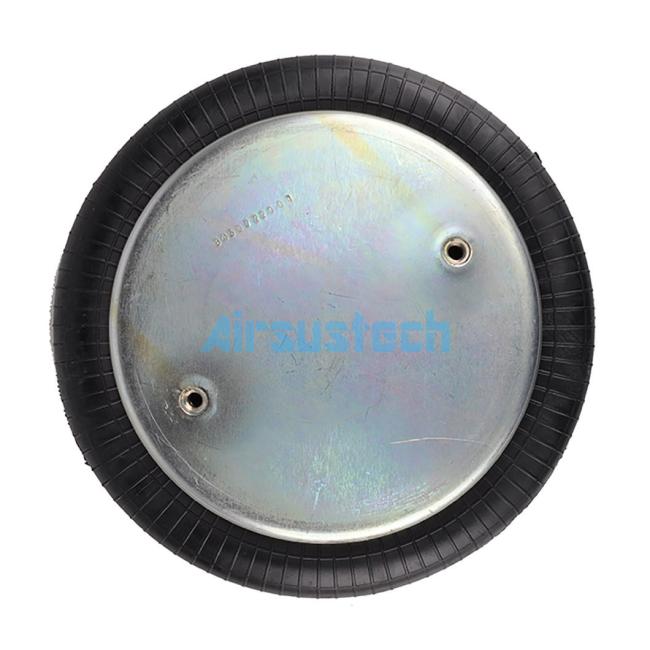

The reated picture of 1B5330 air spring/shock absorbers/air suspension spring
