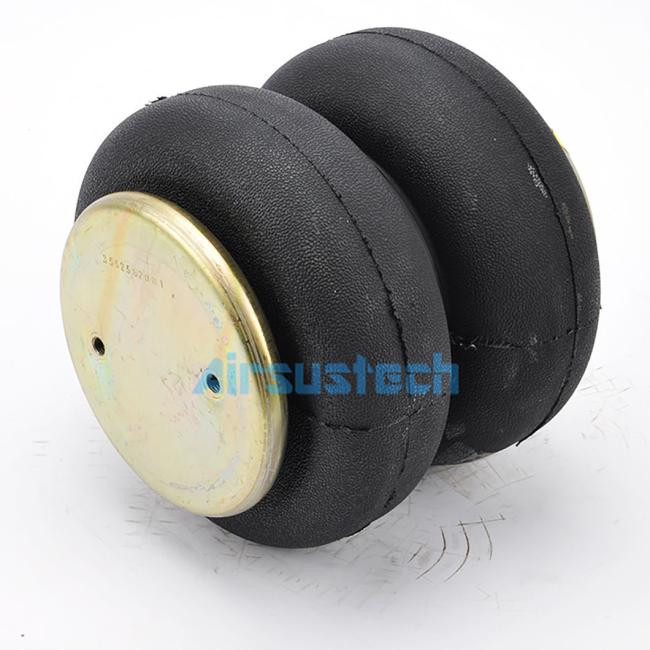

Firestone Air Bags W01-M58-7679/20C2 Double Convoluted Industrial Cutting Machine Springs
Firestone Air Bags W01-M58-7679/20C2 Double Convoluted Industrial Cutting Machine Springs
OEM NO.
Firestone W01-M58-7679
Firestone W01M587679
Firestone W01 M58 7679
Firestone WO1-M58-7679
Firestone WO1M587679
Firestone WO1 M58 7679
Firestone 20C2
Goodyear 2B9-269
Goodyear 2B9 269
Goodyear 2B9269
Contitech FD200-19
Contitech FD 200-19
Contitech FD200-19 1/4 M8
Contitech FD 200-19 1/4 M8
Dunlop S0 9280
Dunlop S09280
Gart T291/2B
R.O.R/Meritor 21221356
Weweler US 07394F
Schmitz Trailer 016808
Granning 15670
FD 200-19 Purchase Order
| Type | Order No. |
| rubber bellows only | |
| with bellows plates,G1/4 air inlet A=44.5mm excentrical | |
| with bellows plates,G3/4 air inlet A=38.1mm excentrical |
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B7679
Nut/blind nut
Top plate screw (nut) teeth: 2XM10×1.5
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2XM10×1.5
The screw center distance of the bottom cover plate: 89 mm
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 44mm
Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm
Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 95 mm
Stroke height: 230mm
Bumper block/bumper block
Without bumper block
Belt loop/Girdle hoop/Girdle ring
One piece of belt loop/girdle hoop/girdle ring
| Min.pressure | 0 bar |
| Return force to min height | ≤200N |
| Overall | 3kg |
Packing Details
|
Model No. |
Net Weight |
Gross Weight |
Box Weight |
Box Size |
Packing Quantity |
|
2B7679 |
4.07kg |
4.45kg |
0.38kg |
24*24*24cm |
1 |
Rubber air springs for cutting machines
Cutting machine tools belong to the category of electrical processing, and are mainly composed of three major parts: CNC wire cutting machine tools, mechanical, electrical and working systems. On the premise of not using any shock absorption equipment, the cutting machine will vibrate during use.
In order to avoid unnecessary trouble caused by vibration and improve the service life of the machine, it is necessary to dampen it. The rubber air spring has a good effect of absorbing shock absorption, so the rubber air spring of Guomat can be widely used in cutting machine tools. If you have any requirements, please feel free to contact us via email or telephone.
The related picture of 2B7679
