Triple Convolutions 10×3  Fire-stone W01-R58-4047 DUNLOP SP258 Rubber Spring Bellows

Cross Reference


Specifications and Detailed Technical Parameters

Type: Triple/ Three Bellows

Min. Height: 100mm

Rubber Bellow Diameter: 254mm

Rubber Opening Diameter: 123mm

Girdle hoop/Girdle ring: 2 pieces

Other Model Rubber Bellow

4 1/2 X 1

Fire-stone: W01-R58-4043; W01 R58 4043; W01R584043; WO1-R58-4043; WO1 R58 4043; WO1R584043

DUNLOP: SP 2008; SP2008

Min. Height: 33mm

Rubber Bellow Diameter: 114mm

4 1/2 X 2

Fire-stone: W01-R58-4076; W01 R58 4076; W01R584076; WO1-R58-4076; WO1 R58 4076; WO1R584076;

DUNLOP: SP 1457; SP1457

Min. Height: 53mm

Rubber Bellow Diamter: 114mm

6 X 2

Fire-stone: W01-R58-4036; W01 R58 4036; W01R584036; WO1-R58-4036; WO1 R58 4036; WO1R584036

DUNLOP: SP543; SP 543

Height: 127mm

Rubber Bellow Diameter: 153mm

8 X 1

Fire-stone: W01-R58-4085; W01 R58 4085; W01R584085; WO1-R58-4085; WO1 R58 4085; WO1R584085

DUNLOP: SP 1218; SP1218

Min Height: 50mm

Rubber Bellow Diameter: 203mm

8 X 2

Fire-stone: W01-R58-4045; W01 R58 4045; W01R584045; WO1-R58-4045; WO1 R58 4045; WO1R584045

DUNLOP: SP 253; SP253

Min. Height: 72mm

Rubber Bellow Diameter: 203mm

10 X 2

Fire-stone: W01-R58-4048; W01 R58 4048; W01R584048; WO1-R58-4048; WO1 R58 4048; WO1R584048

GIGANT
SAMRO
DUNLOP SP 255; SP255

Height: 165mm

Rubber Bellow Diameter: 254mm

12 X 2

Fire-stone: W01-R58-4044; W01 R58 4044; W01R584044; WO1-R58-4044; WO1 R58 4044; WO1R584044

DUNLOP: SP 256NB; SP256NB

Min. Height: 68mm

Rubber Bellow Diameter: 304mm

12 X 3

Fire-stone: W01-R58-4046; W01 R58 4046; W01R584046; WO1-R58-4046; WO1 R58 4046; WO1R584046

DUNLOP 12 x 3
PNEUMATIS DB1235

Min. Height: 100mm

Rubber Bellow Diameter: 304mm

16 X 2

Fire-stone: W01-R58-4023; W01 R58 4023; W01R584023; WO1-R58-4023; WO1 R58 4023; WO1R584023

DUNLOP: SP 1129; SP1129

Min. Height: 77mm

Rubber Bellow Diameter: 430mm


Company Profile

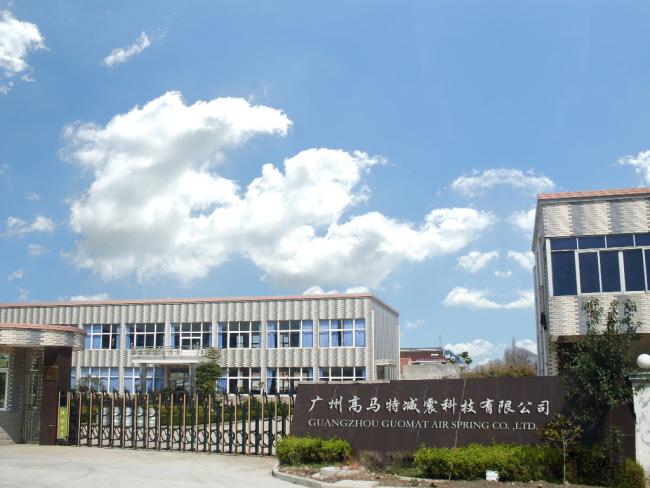

Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.

The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
