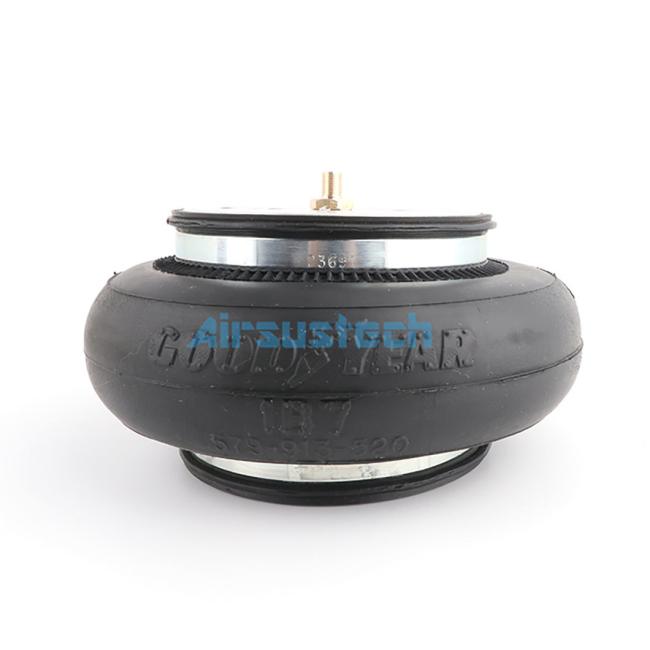

Goodyear 1B7-544 Industrial Air Spring 579-91-3-520 Single Convoluted Airbag

Name: Goodyear 1B7-544 Industrial Air Spring 579-91-3-520 Single Convoluted Airbag
Brand: GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Price Negotiable

Price: USD99.9-129.9/PC

MOQ: 5pcs

Delivery Time: 3-7 Working Days

Brand: Goodyear

Product Description

Goodyear 1B7-544 Industrial Air Spring 579-91-3-520 Single Convoluted Airbag

Cross Reference

This air spring is imported from Mexico.

Goodyear Part number: 1B7-544; 1B7 544; 1B7544

Goodyear Bellow number: 579-913-520; 579 913 520; 579913520

It can replace Enidine: YI-1B7-544

It can replace Enidine: YI 1B7 544

It can replace Enidine: YI1B7544

Spring Weight: 1.59KG

Convoluted: Single

The advantages of air springs are mainly reflected in the following aspects:

1. Controllable spring expansion coefficient
2. Adjustable load bearing capacity
3. Easy to achieve height control
4. Reduce friction
5. Load changes, but the natural frequency remains basically unchanged

Goodyear Convoluted Type Air Spring

Part Number	Air Fitting	Force Available At Actuator Height Limit(Pounds)				Force Available At Compressed Height Limit(Pounds)
Part Number	Air Fitting	100 psi	80 psi	60 psi	40 psi	100 psi	80 psi	60 psi	40 psi
1B5-500	1/4	570	425	290	175	1525	1210	900	595
1B5-502	3/4	570	425	290	175	1525	1210	900	595
1B5-503	1/4 TV	570	425	290	175	1525	1210	900	595
1B5-510	1/4	530	390	260	145	1620	1290	955	635
1B5-512	3/4	530	390	260	145	1620	1290	955	635
1B5-520	1/4	445	305	180	80	2100	1660	1230	850
1B5-521	3/4	445	305	180	80	2100	1660	1230	850
1B5-530	1/4	880	635	440	235	2115	1655	1240	840
1B5-531	1/4 OS	880	635	440	235	2115	1655	1240	840
1B6-532	1/4 OS	880	635	440	235	2065	1640	1230	810
1B6-535	1/4	780	510	320	165	3020	2380	1815	1290
1B6-536	1/4 OS	780	510	320	165	3020	2380	1815	1290
1B6-538	1/4 OS	780	510	320	165	2715	2110	1585	1085
1B7-540	1/4	445	290	130	30	2635	2095	1540	1015
1B7-541	1/2	445	290	130	30	2635	2095	1540	1015
1B7-542	3/4	445	290	130	30	2580	2095	1505	990
