Air Spring For Trucks Firestone W01M588966 Goodyear 1R14-703 Replacement Parts Air Spring Kit

Air Spring For Trucks Fire-stone W01M588966 Goodyear 1R14-703 Replacement Parts Air Spring Kit

Product Description
GUOMAT NO. 1T8966
Material: Rubber+Steel
Warranty: 12 Months
MOQ: 1pc
For Car: Light Trucks, Trailers
Refer Nomber


Technical parameters of GUOMAT 1T8966 air spring
❶ Screw Bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75
Screw Center Distance of Top Cover Plate : 210 mm
Distance Between Stud and Air Hole : 95 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M22x1.5
❸ Cover Plate
Top Cover Plate Diameter: Ø315 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 355 mm
Rubber Bellows MAX Height : 810 mm
Rubber Bellows MIN Height :300 mm
Working stroke : 510mm
❺ Bumper block / Buffer block
Bumper Block height :212 mm
❻ Bottom Piston
Bottom Piston Diameter : Ø251mm
Bottom Piston Height :212 mm
❼ Piston Bolt
Piston Bolt Tooth : M16 X2.0
About Us
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

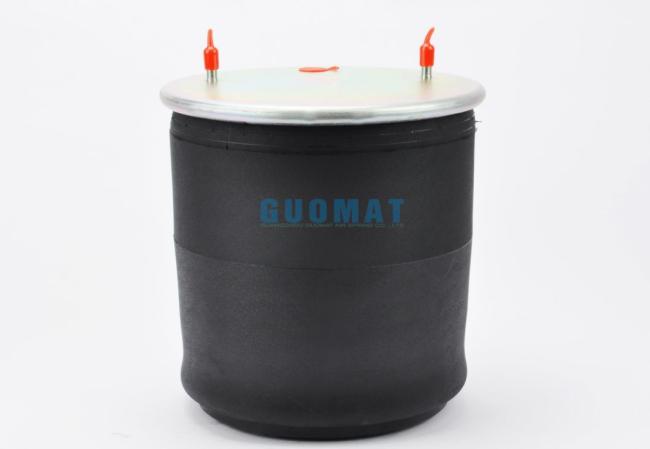

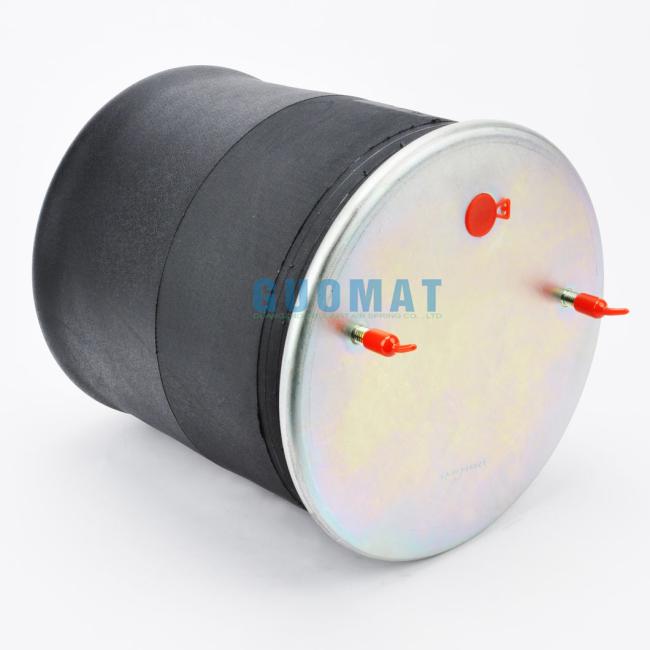

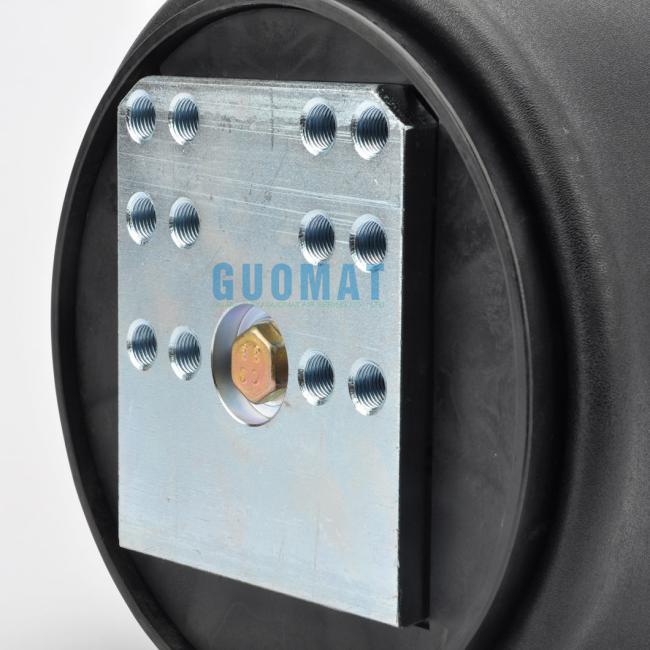

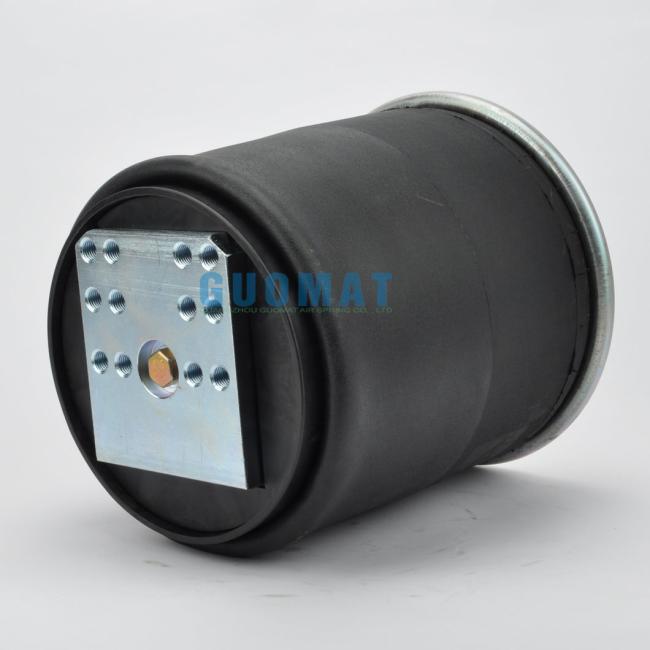

Product Picture
