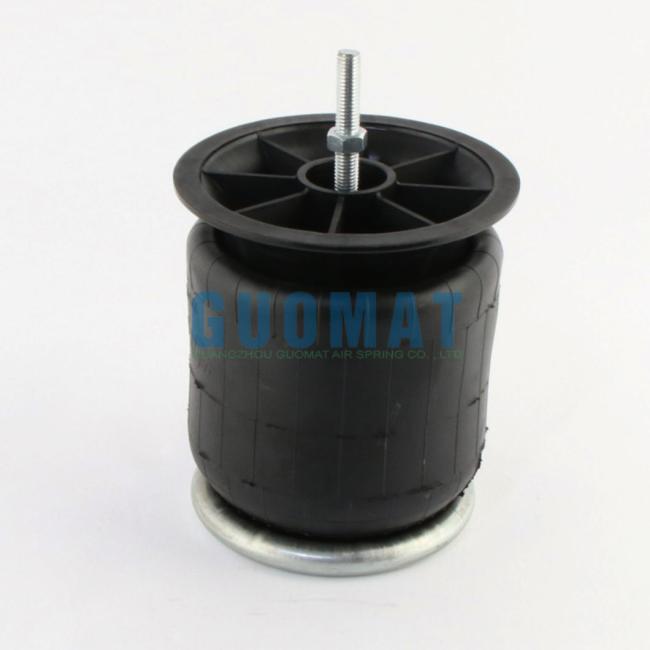

W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension

Product Details

OEM Number

FIRESTONE  W01-358-5311
FIRESTONE  W01 358 5311
FIRESTONE  W013585311
FIRESTONE 1T14C-1 & 1T14F-2
RIDE 1003585311C
RIDE 100 358 5311C
Note:Flxible 6-379-1


GUOMAT 1T5311 Truck Air Spring Technical Data

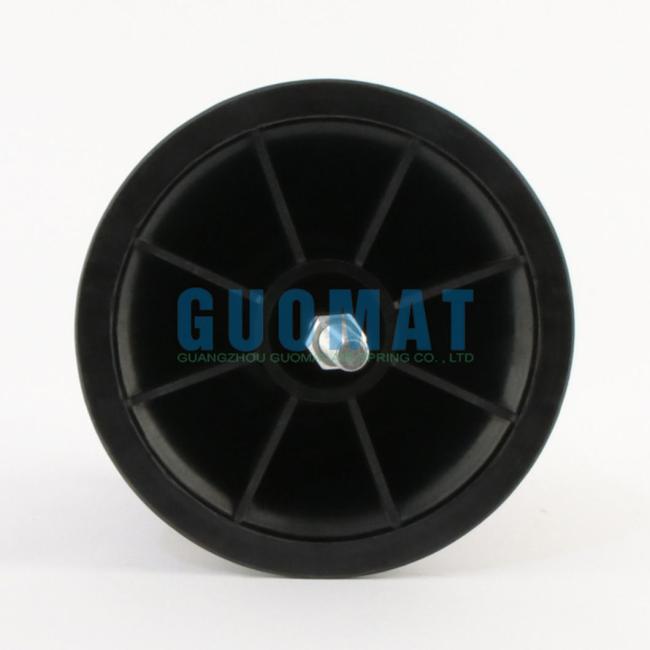

The Top Cover Plate Diameter: 160mm

Gas Hole: 1/4NPT

Combo Stud: 2X3/8-16UNC

The Distance Between Combo Stud: 89mm

The Distance Between Combo Stud and Gas Hole: 44mm

Natural Height: 230mm

Piston Width: 179mm

Piston Height: 93mm


How to Choose the Right Truck Air Suspension Spring

1. Suspension Type: There are two main types of suspensions used in trucks: air ride and spring ride. Air ride suspensions use pressurized, expandable rubber or rubber-like bags to absorb road shocks and changing weights of the trailer loads. On the other hand, spring ride suspensions use steel or composite spring packs for the same purpose .

2. Ride Quality: Air ride suspensions are known for providing a smoother and more comfortable ride compared to spring ride suspensions. They can automatically adapt to changing cargo loads and road shocks, keeping the floor mostly level and reducing vibration. However, personal preference and the specific application of the truck can also play a role in the decision-making process .

3. Maintenance and Cost: Spring ride suspensions generally require less maintenance and have lower upfront costs compared to air ride suspensions. Air ride suspensions can be more complex and may require additional maintenance, such as checking for air bag cracking, dry rot, and leveling valve problems. It's important to consider the long-term maintenance costs when choosing the right suspension for your truck .

4. Cargo Protection: Air ride suspensions are often preferred when hauling fragile loads, such as glass, as they provide better cushioning and reduce the risk of cargo damage.

5. Driving Conditions: The choice of suspension may also depend on the driving conditions. Air ride suspensions are generally better suited for rough or uneven road surfaces, as they can provide a smoother ride and improved handling and stability. Spring ride suspensions may be more suitable for applications where ride quality is not a significant concern .

Product Images
