Trailer Suspension Air Shock 1R12-702 Firestone Air Spring Bellow W01-M58-8859 Complete With Piston

Trailer Suspension Air Shock 1R12-702 Firestone Air Spring Bellow W01-M58-8859 Complete With Piston

Product Description

Product Name: Truck Air Spring

Brand: GUOMAT

Model: 1T8859

Warranty: 12 Months

Position: Truck Axles

Color: Black

MOQ: 1pc if we have stock

Package: Carton


Specifications and Detailed Technical Parameters

Truck air spring
Aluminum piston

Stud one top plate: M12X1.75
Combo stud on top plate: M12X1.5 ; M20X1.5
Rubber bellow diameter: 315-325mm
Piston height: 188mm
Bottom plate threaded hole: 4pcs x M12x 1.75
Height: 234mm-650mm

GUOMAT 1T8859 Refer Number

Firestone: 1T15M-9

Firestone: W01-M58-8859 / W01 M58 8859 / W01M588859

Firestone: W01-379-9091 / W01 379 9091 / W013799091

Contitech: 4159NP06 / 4159 NP06 / 4159 NP 06

Contitech: 4159NP07 / 4159 NP07 / 4159 NP 07

Goodyear: 1R12-702 / 1R 12-702 / 1R12 702

Goodyear: 566-24-3-501 / ​566 24 3 501 / ​566243501

Phoenix: 1DK23L-25 / 1 DK 23 L-25

Vibracoustic: V1DK23B-9

CF Gomma: 1T323-40

CF Gomma: 202302

Gart: D278/H

Gart: 278.2.511

Blacktech: RML75260C7

Airtech: 34159-05C

Fruehauf: UA0894 /

SMB: UJB0203-001 / UJB 0203-001

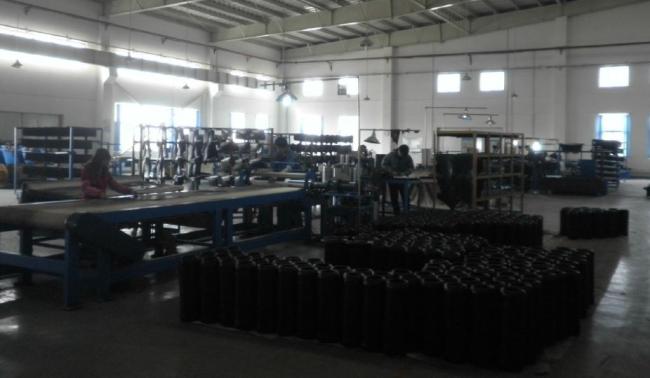

Factory workshop


FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
