Firestone Truck Air Spring Spare Parts W01-358-8460 Heavy Truck Air Suspension
Firestone Truck Air Spring Spare Parts W01-358-8460 Heavy Truck Air Suspension
Products Description
| Model | 1T8460 |
| Product Name | Air Spring |
| Application | For Truck,For Trailer |
| Material | Rubber Bellows and Steel Cover Plate |
| Warranty | 1 Year |
| Purpose | For Replace/Repair |
Cross Reference Number
Firestone OEM Number: W01-358-8460
Firestone OEM Number: W01 358 8460
Firestone OEM Number: W013588460
Firestone OEM Number: WO1-358-8460
Firestone OEM Number: WO1 358 8460
Firestone OEM Number: WO13588460
Specifications and Detailed Technical Parameters: GUOMAT 1T8460
Top plate 2pcs Combo studs: 2pcs x M20x 1.5 , 2pcs x 1/4NPTF
The screw center distance: 169
Height : 280mm
Top plate diameter: 289mm
Bottom plate diameter: 296.3mm
Rubber bellow outer diameter: 304± 5mm
GUOMAT 1T-Air Spring Assembly Cross Firestone
|
Bellow NO. |
Firestone Part NO. |
GUOMAT NO. |
Bellow NO. |
Firestone Part NO. |
GUOMAT NO. |
|
1T14C-1 |
W01-358-2119 |
1T2119 |
1T14C-1 |
W01-358-2120 |
1T2120 |
|
1T14C-1 |
W01-358-2131 |
1T2131 |
1T14C-1 |
W01-358-5310 |
1T5310 |
|
1T14C-1 |
W01-358-5311 |
1T5311 |
1T14C-1 |
W01-358-5323 |
1T5323 |
|
1T14C-1 |
W01-358-5328 |
1T5328 |
1T14C-3 |
W01-358-5405 |
1T5405 |
|
1T14C-3 |
W01-358-5406 |
1T5406 |
1T14C-3 |
W01-358-5408 |
1T5408 |
|
1T14C-3 |
W01-358-5410 |
1T5410 |
1T14C-3 |
W01-358-5412 |
1T5412 |
|
1T14C-3 |
W01-358-5414 |
1T5414 |
1T14C-3 |
W01-358-5422 |
1T5422 |
|
1T14C-3 |
W01-358-5423 |
1T5423 |
1T14C-3 |
W01-358-5433 |
1T5433 |
|
1T14C-3 |
W01-358-5434 |
1T5434 |
1T14C-3 |
W01-358-5436 |
1T5436 |
|
1T14C-3 |
W01-358-9478 |
1T9478 |
1T14C-5 |
W01-358-5335 |
1T5335 |
|
1T14C-5 |
W01-358-5336 |
1T5336 |
1T14C-5 |
W01-358-8868 |
1T8868 |
|
1T14C-6 |
W01-358-5439 |
1T5439 |
1T14C-6 |
W01-358-8977 |
1T8977 |
|
1T14C-6 |
W01-358-8979 |
1T8979 |
1T14C-7 |
W01-358-5426 |
1T5426 |
|
1T14C-7 |
W01-358-5702 |
1T5702 |
1T14C-7 |
W01-358-5712 |
1T5712 |
|
1T14C-7 |
W01-358-5429 |
1T5429 |
1T14CB-1 |
W01-358-5297 |
1T5297 |
|
1T14CB-1 |
W01-358-5319 |
1T5319 |
1T14CB-1 |
W01-358-8872 |
1T8872 |
|
1T14CB-1 |
W01-358-8992 |
1T8992 |
1T14CB-1 |
W01-358-8997 |
1T8997 |
|
1T15L-1.5 |
W01-358-8886 |
1T8886 |
1T15L-1.5 |
W01-358-9422 |
1T9422 |
|
1T15L-1.5 |
W01-358-9584 |
1T9584 |
1T15L-1.5 |
W01-358-9616 |
1T9616 |
|
1T15L-2 |
W01-358-8900 |
1T8900 |
1T15L-2 |
W01-358-8901 |
1T8901 |
|
1T15L-2 |
W01-358-9075 |
1T9075 |
1T15L-2 |
W01-358-9376 |
1T9376 |
|
1T15L-2 |
W01-358-9377 |
1T9377 |
1T15L-2 |
W01-358-9378 |
1T9378 |
|
1T15L-2 |
W01-358-9387 |
1T9387 |
1T15L-2 |
W01-358-9440 |
1T9440 |
|
1T15L-2 |
W01-358-9445 |
1T9445 |
1T15L-2 |
W01-358-9447 |
1T9447 |

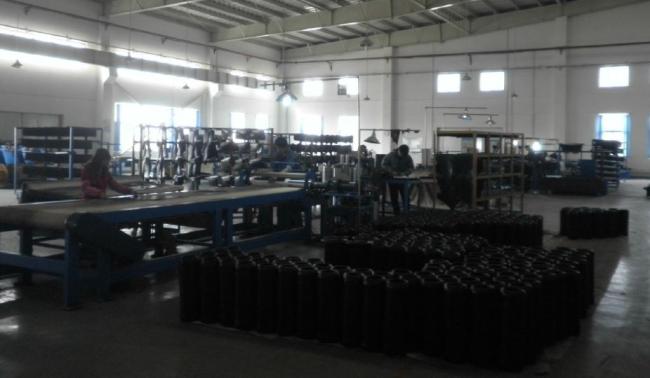

Factory workshop
