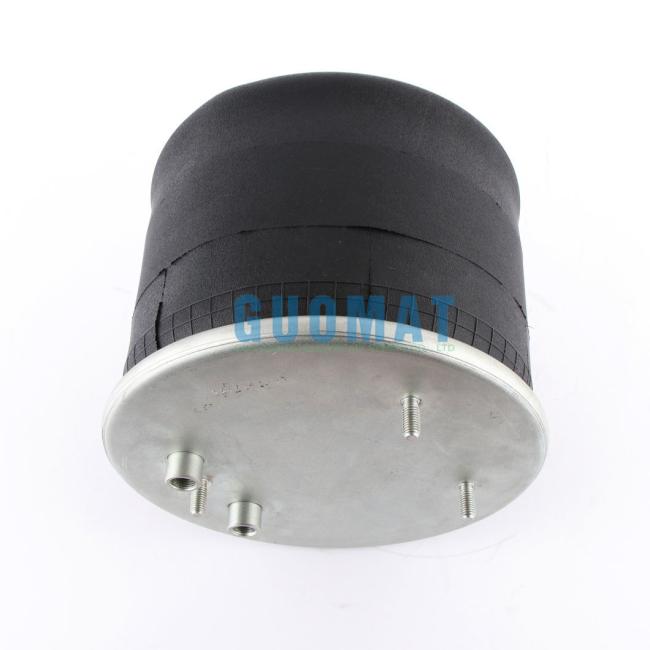

1R12-711 Goodyear Air Suspension Parts W01-M58-8721 Firestone Assembly Truck Air Springs
Product Description
Item : Rolling Lobe Air Spring
Item Number : 1T8721
OEM Number : W01M588721 / 836M2 K1 / 1R 12-711
Reference Numbers
|
Firestone |
W01-M58-8721 |
Firestone |
W01M588721 |
|
Firestone |
W01 M58 8721 |
Firestone |
W01-m58-8721 |
|
Firestone |
w01-m58-8721 |
Contitech |
836 M2K1 |
|
Contitech |
60210 |
Goodyear |
1R 12-711 |
|
Phoenix |
1DF25-13 |
Taurus |
KR 721-03 |
|
Dunlop FR |
D13B31 |
Airbech |
131 062 |
|
Granning |
15996 |
WABCO |
951 812 7110 |
|
Meritor |
MLF8059 |
VDL/DAF |
0388167 |
GUOMAT 1T8721 Truck Air Ride Suspension Technical Data

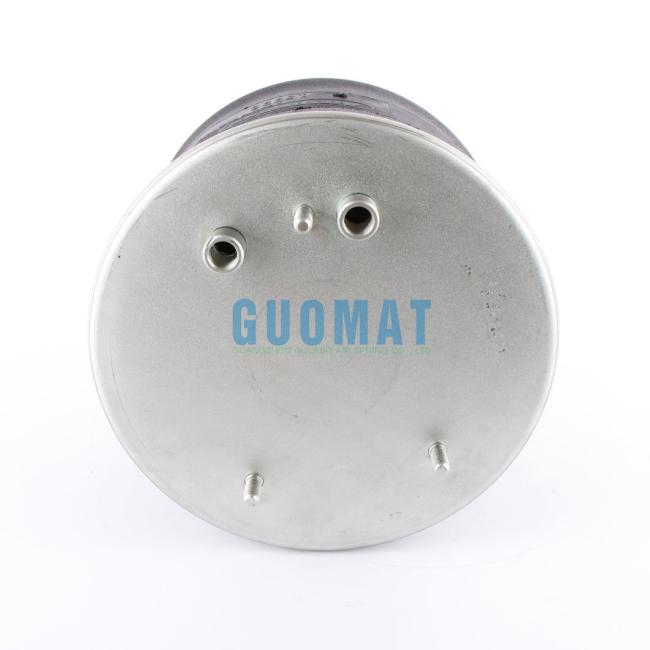

The GUOMAT 1T8721 air spring assembly is based on Firestone's W01-M58-8721, with high performance and strong substitutability. The top cover has a diameter of 272mm, an M10X1.5 air hole, a center distance of 150mm between the screw and the air hole, and a center distance of 110mm between the screws. The base has a diameter of 225mm, with an M16 threaded hole. The natural outer diameter of the air spring is 305mm, the height of the piston is 130mm, the maximum height is 420mm, and the minimum height is 155mm
