W013589121 Firestone Trailer Air Spring 11 10.5-17 A317 Contitech Truck Air Pillow 4810N03
Product Description
Item : Rolling Lobe Air Spring
Item Number : 1T9121
Reference Numbers
Firestone W01-358-9121
Firestone 1T19L-7
Contitech 11 10.5-17 A317
Contitech 4810 N 03
Goodyear 1R13-039,1R13-043,1R13-049,1R13-067
Goodyear 1R11-918
Goodyear 1R14-043
Sauer P50-733
Leland SC 2040
Reyco 12882-02
Dayton 3529121
Triangle 8137 / 6365
Airtech 39121P/K
Brake&Wheel M3517
Hendrickson 554773C1
Waston&Chalin AS-0013(G) / WCTA300(9)
Tuthill 6424 / 1288202
Holland(Neway) 90557019/AR11151/90557052/AR70/90557083/90557110/90557078/AR80(6.75)
R&S Truck&Body 1090023
Ridewell 1003589121C
Vol-vo 3130503
GUOMAT 1T9121 Truck Air Spring Technical Data
| Top Cover Plate Diameter | 289mm |
| Combo Stud on the Top Cover Plate | 1/4NPT,3/4-16UNF |
| Bolt/Stud on the Top Cover Plate | 1/2-13UNC |
| The Between Distance of the Combo Stud and Bolt | 140mm |
| Base Piston Width | 260mm |
| The Rubber Bellow Diameter | 270mm |
| Max Height | 540mm |
| MIn Height | 180mm |

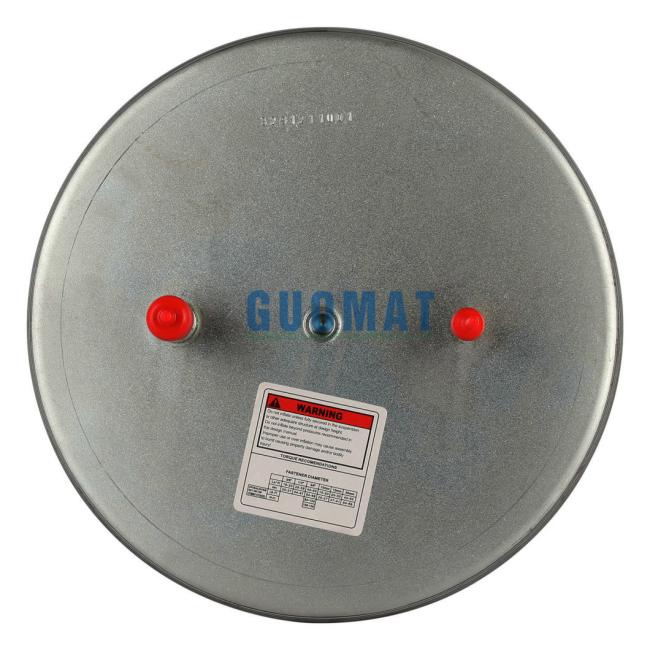

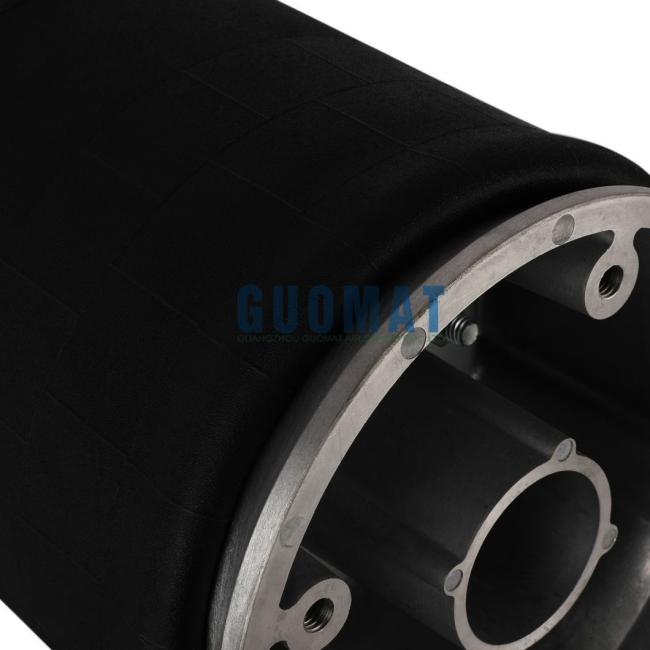

Pictures of Details
