9 10-14 P 465 Contitech 1R12-620 Goodyear Pneumatic Bellows Actuators Ford F3HS5580AA
Price:
USD79.9-99.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
9 10-14 P 465 Contitech 1R12-620 Goodyear Pneumatic Bellows Actuators Ford F3HS5580AA
Product Description
Firestone W01-358-9335 / WO1-358-9335
Firestone W01 358 9335 / WO1 358 9335
Firestone W013589335 / WO13589335
Firestone W01 358 9335 / WO1 358 9335
Firestone W013589335 / WO13589335
Firestone 1T15M-4 / 1T15M 4
Contitech 9 10-14 P 465
Goodyear 1R12-620 / 1R 12-620
Goodyear 566-24-3-076 / 566 24 3 076 / 566243076
Goodyear 566-24-3-104 / 566 24 3 104 / 566243104
Hendrickson 569172 / 569171
Triangle 8465 / 6362
Ford F3HS5580AA
Note: Bracket 6042
Contitech 9 10-14 P 465
Goodyear 1R12-620 / 1R 12-620
Goodyear 566-24-3-076 / 566 24 3 076 / 566243076
Goodyear 566-24-3-104 / 566 24 3 104 / 566243104
Hendrickson 569172 / 569171
Triangle 8465 / 6362
Ford F3HS5580AA
Note: Bracket 6042
1T9335 Truck Air Spring Technical Data
Top cover diameter 231mm, base piston diameter 242mm, 1/4NPT air hole, 1/2-13UNC screw. Rubber bellow natural 310mm, the natural height 250mm, base piston height 7mm.
Extended Height:15.80 inches
Compressed Height: 6.00 inches
Top Plate Number:3313
Top Plate Width:9.00 inches
Piston Number:9573
Piston Width:9.50 inches
Compressed Height: 6.00 inches
Top Plate Number:3313
Top Plate Width:9.00 inches
Piston Number:9573
Piston Width:9.50 inches
Common Causes and Trouble Shooting Methods of Trailer Air Suspension
1.Insufficient Air Spring Pressure
| Reasons | Insufficient air supply pressure |
| Abnormal pressure protection valve | |
| Height valve not working | |
| Air leakage or pipeline damage | |
| Air spring puncture or leakage | |
| Trouble Shooting Method | Make the vehicle pressure reach 0.6MPa |
| Check the pressure protection valve | |
| Replace if necessary | |
| Check the height control valve | |
| Find the air leakage and repair it | |
| Replace the air spring with a new one and check whether the surrounding clearance meets the requirements | |
| Check the shock absorber at the same time |
2.Broken Air Spring
| Reasons | Tires or brake parts rubbing against air springs |
| Brake chamber and air spring friction | |
| Suspension height is too high | |
| Wrong shock absorber model | |
| Trouble Shooting Method | Check the gap around the air spring, if it is too small it must be reinstalled |
| Change brake chamber position or turn clamp to increase clearance | |
| Adjust the height valve to the correct height | |
| Replace shock absorber |
Other Firestone models of the same Rubber Bellows 1T15M-4
Firestone W01-358-9069 / W01 358 9069 / W013589069
Firestone W01-358-9482 / W01 358 9482 / W013589482
Firestone W01-358-8813 / W01 358 8813 / W013588813
Firestone W01-358-9978 / W01 358 9978 / W013589978
Firestone W01-358-8810 / W01 358 8810 / W013588810
Firestone W01-358-9484 / W01 358 9484 / W013589484

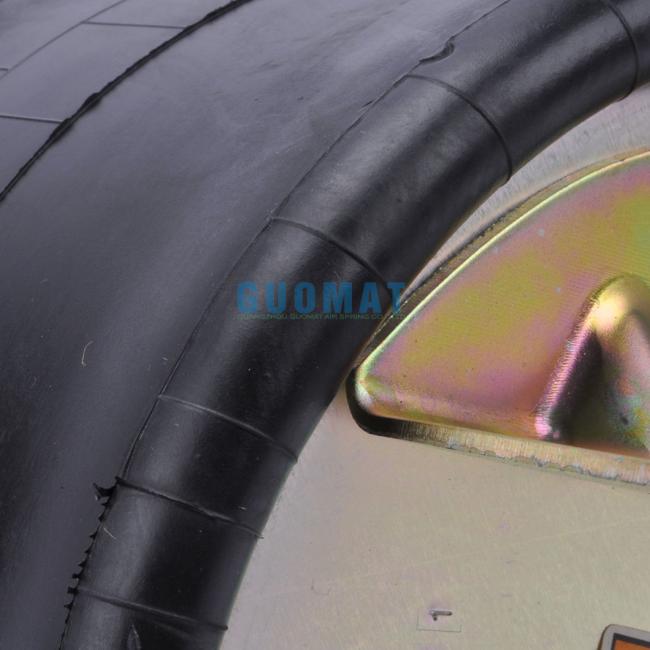

GUOMAT 1T9335 Truck Air Bags Pictures of Details
