FD 330-22 CI Original Contitech Double Convolution Air Actuator G1/4 Air Connection Air Spring


Product Description

Model Number: FD330-22 G1/4
Material: Steel and Rubber
Weight: 4.8kg
Pressure Ability: 0.2-0.8 MPa
Air Inlet: G1/4
Air Inlet Excentrical: 73 mm
Top Screw (Nut) Tooth: 2pcsXM8-15 mm deep
Top Cover Plate Diameter: 228mm
Bottom Cover Plate Diameter: 228mm

Center Distance Between Threaded Holes: 157.5mm

The Rubber Bellow Max Outer Diameter: 325mm

Max Height: 305mm

Min Height: 75mm
Minimum Order Quantity: 1pc
Certification: ISO/TS16949:2009
Warranty: 12 Months
Supply Ability: 1000pcs/week
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, Paypal or Others

Original Equipment Manufacturer Number

Contitech Number: FD330-22

Contitech Number: FD 330-22

Contitech Number: FD330-22 CI

Contitech Number: FD 330-22 CI

Contitech Number: FD330-22 CI G1/4

Contitech Number: FD 330-22 CI g1/4

Contitech Number: FD330-22 CI 60031

Contitech Number: FD 330-22 CI 60031

Application and Features

The Contitech FD 330-22 air spring is expertly designed to provide superior performance and versatility for a wide range of industrial applications. It features a crimped assembly that ensures enhanced strength and durability, along with a convoluted bellow meticulously crafted from natural rubber. The top and bottom plates are crimped and coated with zinc plating to provide excellent corrosion resistance, ensuring long-term high-quality performance. The air spring is suitable for industrial washing machinery and offers a pressure ability ranging from 0.2 to 0.8 MPa

Purchase Order Data

Convoluted Air Spring

1. Top/bottom plate

2. Air inlet

3. Bolts or blind nuts

4. Bumper

5. Rolling lobe

6. Piston(steel or plastic)

7. Bump stop

8. Convoluted bellow

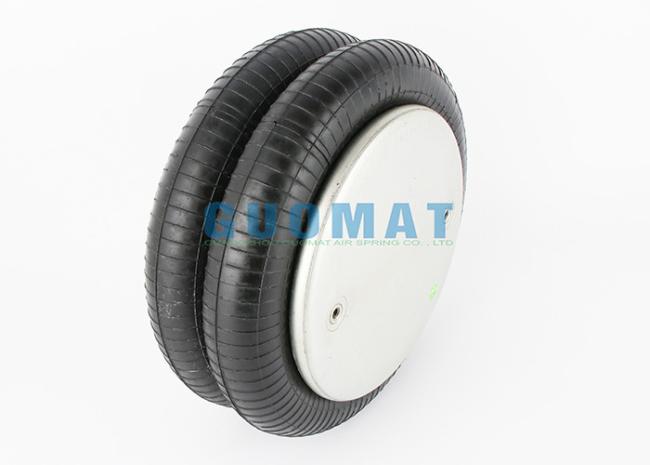

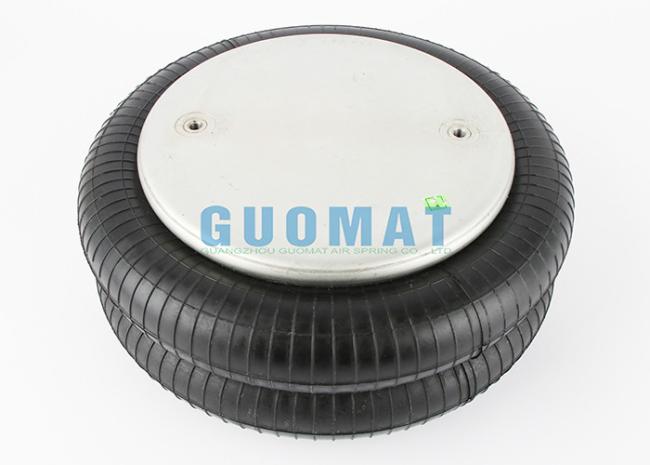

FD 330-22 Contitech Rubber Air Spring Real Picture
