M10 Flange Connection Airbag 230214H-2 Double Type Suspension Air Spring 214mm Natural Height

M10 Flange Connection Airbag 230214H-2 Double Type Suspension Air Spring 214mm Natural Height

Product Description

An air spring with flange ring is an air suspension component used in a variety of applications, including industrial machinery, vehicles, and robots. It consists of a rubber bellows or sleeve reinforced with wire and with a flange ring attached. Flange rings provide a secure connection between the air spring and other components such as mounting plates or brackets.

Air springs with flange rings are designed to provide cushioning, support and vibration isolation. They can handle heavy loads and provide a smooth and comfortable ride. Flange rings can be easily installed and connected to other parts of the system.

These air springs are available in different sizes and specifications to suit various applications. They can be used in industries such as automotive, construction, transportation and robotics. Air springs with flange rings are commonly used on trucks, trailers, RVs, work trucks and industrial machinery.

230214H-2 Double Convoluted Air Spring Technical Data

Top Cover Plate Diameter: Ø223mm

Top Cover Plate Screw (Nut) Tooth: M10

Top Cover Distance Plate Screw (Nut): Ø185mm

Bottom Cover Plate Diameter: Ø223mm

Bottom Cover Plate Screw (Nut) Tooth: M10

Bottom Cover Distance Plate Screw (Nut): Ø185mm

Number of the Screw (Nut) Tooth on the Top: 8pcs

Number of the Screw (Nut) Tooth on the Bottom: 8pcs

The Rubber Bellow Max.Outer Diameter: Ø255mm (At 0.7Mpa)

Rubber Air Bag's Effect on Vibrating Screen

Rubber air bags, also known as air springs, can have an effect on vibrating screens by providing vibration isolation. Air springs are made of strong rubber and fabric-reinforced balloons or bellows. They can be tubular or convoluted in shape, with the convolutions stacked to achieve different performance levels .

The main advantage of air springs compared to other isolators like coil springs and solid rubber pads is their low natural frequency. The lower the natural frequency of an isolator, the better its effectiveness in isolating vibrations .

Rubber springs for vibrating screens are made of ordinary rubber and have a small elastic modulus, allowing for large elastic deformation when loaded. They have high internal resistance, good shock absorption, and a small resonance field, resulting in effective vibration isolation. Rubber springs can be used in vibrating screens, vibrating feeders, vibrating crushers, vibrating platforms, and other machinery .

Typical Applications for Actuation

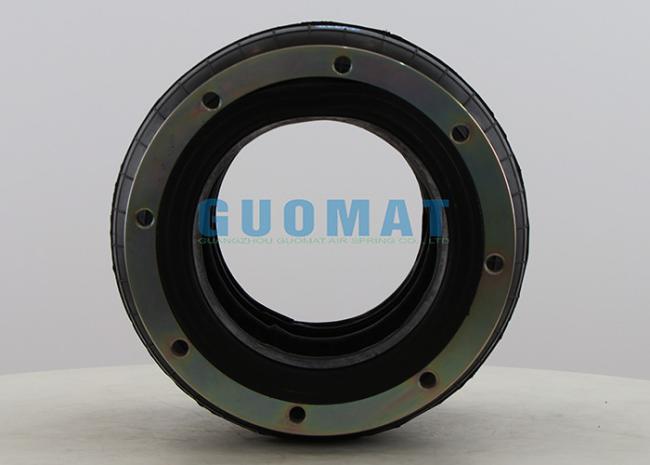

The Real Picture
