Triple Convoluted Industrial Air Bag LHF320/350-3 With Stainless Steel Flange Papermaking Equipment Air Springs

Triple Convoluted Industrial Air Bag LHF320/350-3 With Stainless Steel Flange Papermaking Equipment Air Springs

LHF320/350-3 Air Spring Specifications

Part no.: LHF320/350-3

Brand: GUOMAT

Convolutions: 3

Design diameter: 327mm
Maximum outer diameter: 417mm
Front end outer diameter: 340mm
Design height: 240mm
Full stroke: 102mm-280mm
Effective area: 839.8cm²
0.4-0.7MPa Load capacity (KG): 3359kg-5879kg

Advantages of Stainless Steel Cover

The LHF320/350-3 airbag is composed of high-strength stainless steel flange and high-performance durable rubber. This design not only ensures the durability of the structure, but also integrates the concept of lightweight, making the overall operation more stable and efficient. The high-performance airbag can freely adjust the balance of air pressure and force to ensure that every vibration is accurate.

Stainless steel flanges have mechanical design strength and relatively high stretchability, and have very good stainless steel material performance. Stainless steel flanges are generally used to connect air springs and machinery and equipment. There are holes on the flange connecting plate, and the bolts are penetrated through the holes to tightly connect the two flanges. Stainless steel materials have very good metal material properties and strong corrosion resistance. Therefore, air springs are equipped with stainless steel flanges to enhance the durability of the product, which is suitable for corrosive machinery and equipment and prolongs the life of the product.

More Models

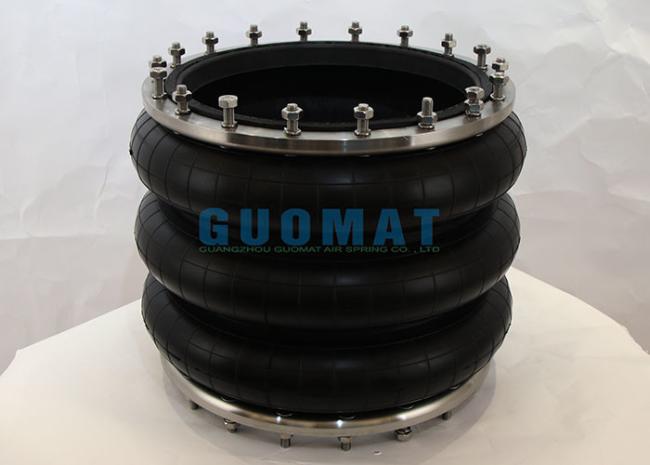

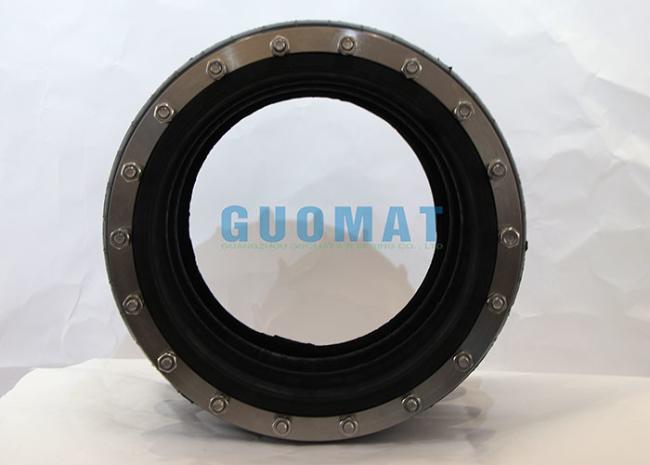

The Related Picture of LHF320/350-3
