W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension
W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension
Product Description
GUOMAT Number: 1T0738
Material: Natural Rubber
Warranty: 12 Months
MOQ: 10 Pieces
Packing:1.Neutral packaging
2. According to customer requirements
Suspension Type: Air Suspension System
Application: Heavy Duty Truck
Car Fitment: ERF Truck/Hendrickson/Trailer
Weight: 12KG
Packing Length: 29cm
Packing Height: 29cm
Packing Width: 42cm
OEM Manfacturer Number
Firestone Manfacturer Number: W01-358-0738
Firestone Manfacturer Number: W01 358 0738
Firestone Manfacturer Number: W013580738
Firestone Manfacturer Number: WO1-358-0738
Firestone Manfacturer Number: WO1 358 0738
Firestone Manfacturer Number: WO13580738
1T0738 GUOMAT Truck Air Spring Technical Data
Top cover diameter: 231mm
Air hole: 1/4NPT
Threaded hole: 2-3/8-16UNC
Center distance between threaded holes: 157.5±0.5mm
Distance between threaded hole and air hole: 73±0.5mm
Maximum height: 330mm
Minimum height: 110mm
Compression height: 220mm
Width of piston: 241mm
Height of piston: 77mm
Threaded hole at bottom: 1/2-13UNC
Center distance between threaded holes at bottom: 104.5mm
Why Choose Us?
| 1. Flexible cooperation model |
| We accept sample orders (to verify quality) and small orders (trial sales/replenishment), significantly reducing the cooperation risk of new customers. |
| 2.Comprehensive competitiveness of the supply chain |
|
|
| 3. Value-added service system |
|
|

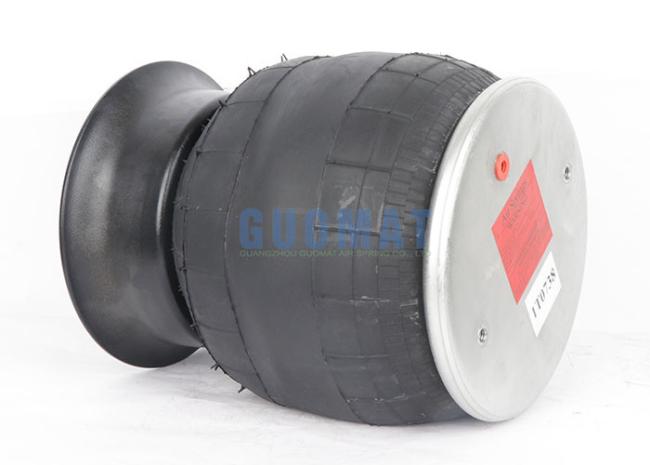

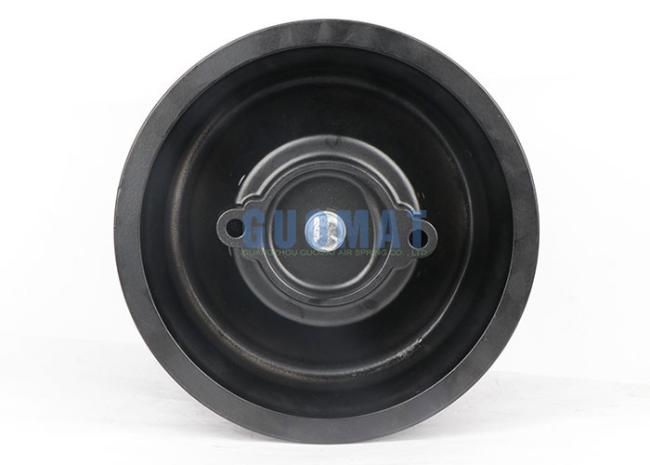

Product Pictures
