1B8X6 Single Convoluted Air Spring Ball W01-358-7598 Firestone Rubber Air Bellows
1B8X6 Single Convoluted Air Spring Ball W01-358-7598 Firestone Rubber Air Bellows
Product Information
Manufacturer: GUOMAT
Manufacturer Part Number: 1B8X6
Size and Quality: OEM Standard
Benefits: Air suspension struts improve ride comfort by more efficiently absorbing shock and decreasing vibration. They also make it easier to alter ride height and stiffness to suit varying loads, driving preferences, and road conditions.
Purchase with Confidence: we Provide 1 year warranty,we provide a large range of car accessory categories.
Can replace Firestone W01-358-7598 / WO1-358-7598
Can replace Firestone W013587598 / WO13587598
Can replace Firestone W01 358 7598 / WO1 358 7598
Can replace Firestone 116-1
Can replace Goodyear 1B8-580
Can replace Goodyear 1B 8-580
Air Spring Technical Data
Temperature Range【MIN】: -40℃
Temperature Range【MAX】: 70℃
Bellows O.D.【MAX】:240mm
Convoluted:Single
Air Inlet Type:NPT
Air Inlet :1/4-18NPT
Top Cover Plate Diameter:135mm
Bottom Cover Plate Diameter:135mm
Screw Center Distance of Top Cover Plate:70mm
Screw Center Distance of Bottom Cover Plate:70mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC
The Working Stroke:120mm
Natural Height: 157mm
Max.Height: 180mm
Min.Height: 60mm
W01-358-7598 Force Table
| Assembly Height (in.) | Volume@100PSIG(in3) | Pounds Force | ||||
| @20PSIG | @40PSIG | @60PSIG | @80PSIG | @100PSIG | ||
| 6.0 | 237 | 360 | 750 | 1150 | 1580 | 2090 |
| 5.0 | 210 | 540 | 1100 | 1650 | 2240 | 2920 |
| 4.0 | 178 | 650 | 1330 | 2000 | 2710 | 3490 |
| 3.0 | 139 | 710 | 1450 | 2200 | 2980 | 3810 |

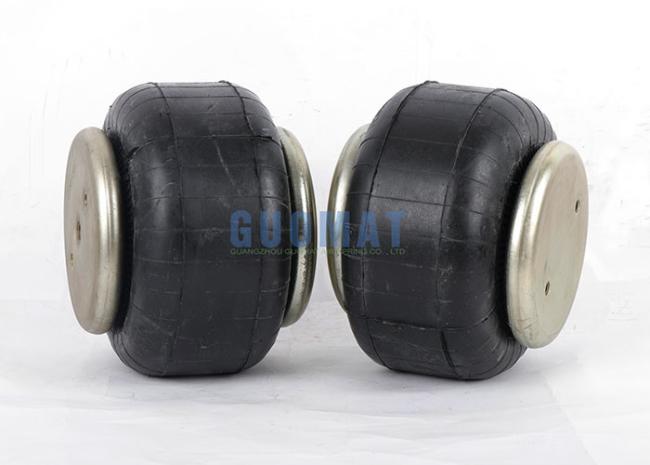

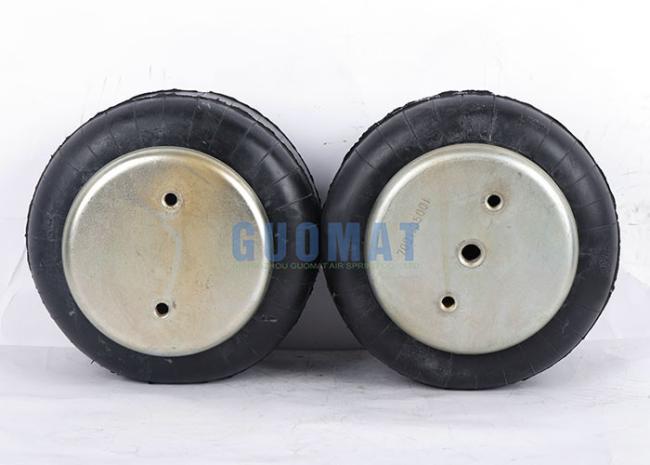

Product Image
