Trailer Air Spring Bag W01-358-9875 Firestone Truck Air Suspension 1R12-432 Goodyear
Trailer Air Spring Bag W01-358-9875 Firestone Truck Air Suspension 1R12-432 Goodyear
Product Description
Truck air spring assembly is the core component of heavy-duty vehicle suspension system, which consists of air spring body, airbag, piston, upper cover, lower seat and air circuit accessories. Its working principle is to achieve shock absorption function through elastic deformation of compressed air, and can dynamically adjust stiffness and height.
Can replace Firestone W01-358-9875 / W01 358 9875 / W013589875
Can replace Firestone W01-358-1191 / W01 358 1191 / W013581191
Can replace Goodyear 1R12-432 / 1R 12-432 / 1R12432
Can replace Continental-ContiTech 910B1-95P889
Can replace Continental-ContiTech 910B195P889
Can replace Continental-ContiTech AS10673
Can replace Dayton Parts 352-1191
Can replace Navistar 3541731C1
Can replace Triangle Air Springs 8889
Can replace Automann AB1DF23I-P1067
Can replace Automann AB1DK23R-1731
Can replace Triangle Air Springs AS-8889
Can replace Triangle Air Springs AS-9875
Can replace Paccar Parts AS10663
Can replace Barksdale AS1R121077
Can replace Meritor FS1191
Can replace Paccar Parts AS78659
Can replace Meritor FS9875
Can replace S&S Truck Parts S-22471
Can replace World American WA01-1191
Can replace World American WA01-9875
GUOMAT 1T9875 Core Functions
- Intelligent load-bearing: Using air compressibility to absorb road impact, the shock absorption efficiency is improved by 40%-60% compared with traditional leaf springs
- Height adjustment: Equipped with an ECU control system, it can automatically level within the range of ±80mm to adapt to different load conditions
- Stiffness control: The air pressure can be accurately adjusted between 0.5-8bar, taking into account the comfort and stability of empty/full load
Technical Advantages
- The service life is more than 800,000 kilometers, which is 2-3 times that of leaf springs
- It can reduce the vibration amplitude of the vehicle body by 70%, effectively protecting delicate goods
- Reducing tire wear rate by about 30%, saving 15% in comprehensive operating costs
1T9875 Truck Air Spring Technical Data
| Natural outer diameter | 257mm |
| Maximum height | 604mm |
| Minimum height | 151mm |
| Top cover diameter | 231mm |
| Bottom piston diameter | 254mm |
| Bottom piston height | 123mm |

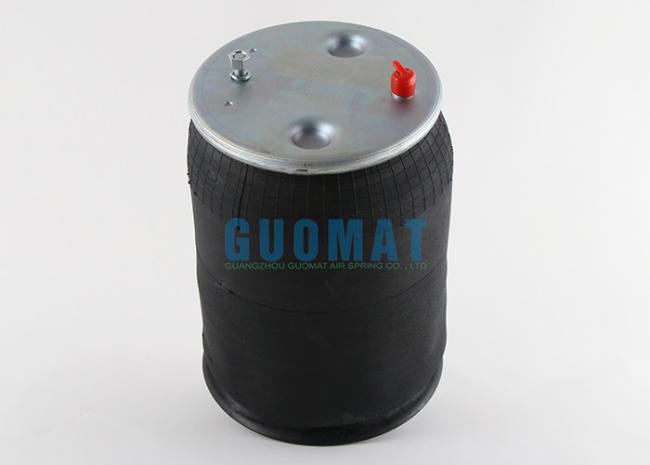

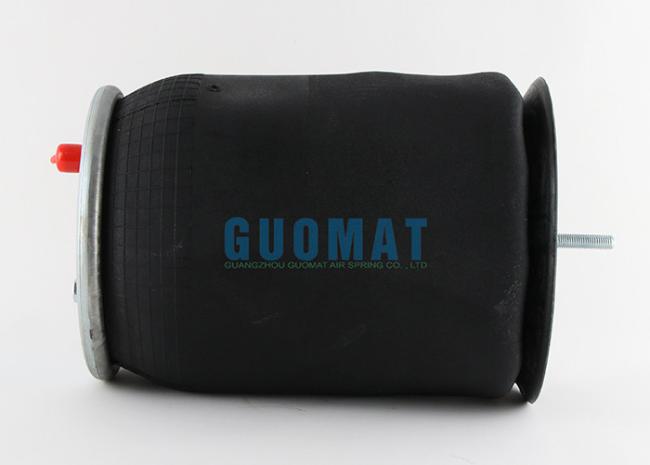

The Real Pictures
