FS 330-14 Contitech Crimped Convoluted Air Springs G1 Air Fitting Pneumatic Bellows Actuators
FS 330-14 Contitech Crimped Convoluted Air Springs G1 Air Fitting Pneumatic Bellows Actuators
Product Description
Brand: GUOMAT
Manufacturer Part Number: 1B33014
Manufacturer Warranty: 12 Months
Material: Rubber+Steel
Color: Balck
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
Packing: Neutral Packing
Quality: High-Quality
Refer to Contitech: FS 330-14 ; FS330-14 ; FS 330-14 CI ; FS330-14 CI
Technical Data
Cover
Top cover diameter: 231mm
Bottom cover diameter: 231mm
Air hole/Gas hole
Air hole: G1
Threaded hole/screw thread
Center distance between threaded holes in top cover: 157.5mm
Distance from air hole to threaded hole in top cover: 66mm
Center distance between threaded holes in bottom cover: 157.5mm
Rubber bellow
The rubber bellow max outer diameter: 325mm
Max height: 166mm
Min.height: 55mm
Vibration isolation – dynamic characteristic values
Design height H: recommended 140mm, minimum 120mm
| Pressure p | bar | 3 | 4 | 5 | 6 | 7 | 8 | VoI.V(I) |
| Force (Load) | kN | 11.6 | 15.5 | 19.5 | 23.4 | 27.4 | 31.8 | 7.4 |
| Spring rate | N/mm | 261 | 332.2 | 409.4 | 486.5 | 486.5 | 567.8 | |
| Natural frequency | Hz | 2.4 | 2.3 | 2.3 | 2.3 | 2.3 | 2.2 |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V(I) |
| Height H (mm) | 151 | 10 | 13.3 | 16.8 | 20.3 | 24 | 27.6 | 7.8 |
| 130 | 12.6 | 17 | 21.4 | 26 | 30.2 | 34.8 | 7 | |
| 110 | 14.8 | 19.8 | 25 | 30 | 35.2 | 40.2 | 6.1 | |
| 90 | 16.2 | 21.8 | 27.4 | 33 | 38.6 | 44.2 | 5 | |
| 70 | 17.2 | 23 | 28.8 | 34.9 | 40.6 | 46.6 | 3.9 |

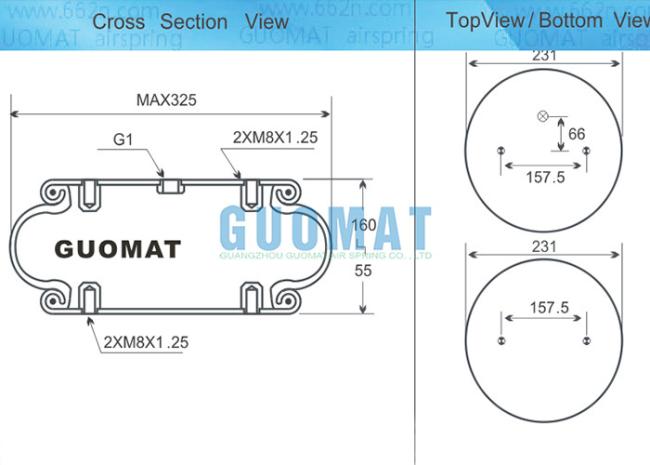

The Drawing: GUOMAT 1B33014
