Goodyear 1B5-510 Aluminum Cover Industrial Air Spring 50mm-120mm Stroke Air Bag Replacement
Goodyear 1B5-510 Aluminum Cover Industrial Air Spring 50mm-120mm Stroke Air Bag Replacement
Product Description
Brand: GUOMAT
Part No.: 1B5510S
Goodyear Super-Cushion Air Spring 1B5-510
Goodyear Super-Cushion Air Spring 1B 5-510
Goodyear Super-Cushion Air Spring 1B5 510
Goodyear Super-Cushion Air Spring 1B5510
Goodyear Super-Cushion Air Bellow 579-913-501
Goodyear Super-Cushion Air Bellow 579 913 501
Goodyear Super-Cushion Air Bellow 579913501
Enidine Air Springs YI-1B5-510
Enidine Air Springs YI 1B5-510
Technical Parameter
Air Fitting: 1/4" BSP - On Center
End Plate Dia.: 85mm
Mounting Holes: (2) 3/8"-16
Mtg. Hole Spacing: 44.5mm
Max Height: 120mm
Min Height: 50mm
Max Outer Dia.: 150mm
Bumper: No
Goodyear Single Convoluted Air Spring
| Model No. | Bellow No. | Stroke(inch) | Cover dia.(inch) | Threaded hole center dia.(inch) | Distance between threaded hole and air hole(inch) |
| 1B12-301 | 578-91-3-301 | 7.2-2.6 | 9.0 | 6.2 | 2.88 |
| 1B12-305 | 578-91-3-301 | 7.2-2.6 | 9.0 | 6.2 | 2.88 |
| 1B12-306 | 578-91-3301 | 7.2-4.2 | 9.0 | 6.2 | 2.88 |
| 1B12-313 | 578-91-3-301 | 7.2-2.3 | 9.0 | 6.2 | 2.88 |
| 1B12-322 | 578-91-3-301 | 7.2-2.6 | 9.0 | 5.5 | 3.1 |
| 1B14-350 | 578-91-3-351 | 7.2-2.3 | 11.3 | 6.25 | 3.12 |
| 1B14-351 | 578-91-3-351 | 7.2-4.2 | 11.3 | 6.25 | 3.12 |
| 1B14-373 | 578-91-3-351 | 7.2-2.6 | 11.3 | 6.20 | |
| 1B14-358 | 578-91-3-352 | 8.3-2.3 | 11.30 | 6.25 | 3.12 |
| 1B8-564 | 579-91-3-532 | 6.7-2.3 | 5.03 | 2.75 | 1.38 |
Common Applications for Air Springs
- Commercial Trucks and Trailers – Ensure stability and load-carrying capacity.
- Buses and Coaches – Improve passenger comfort.
- RVs and Campers – Help with weight distribution and ride comfort.
- Luxury and High-Performance Vehicles – For advanced air suspension systems.

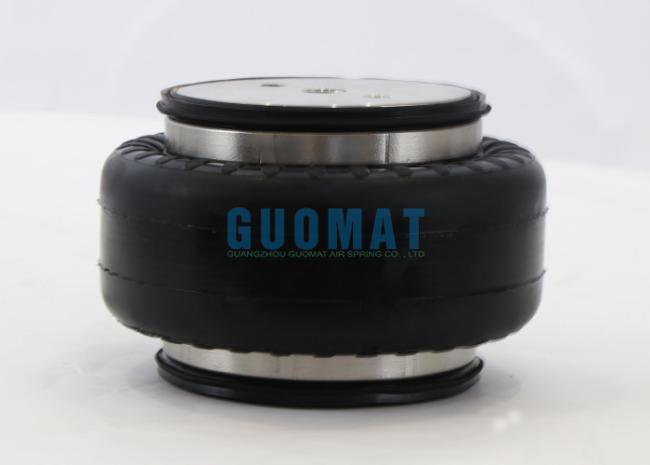

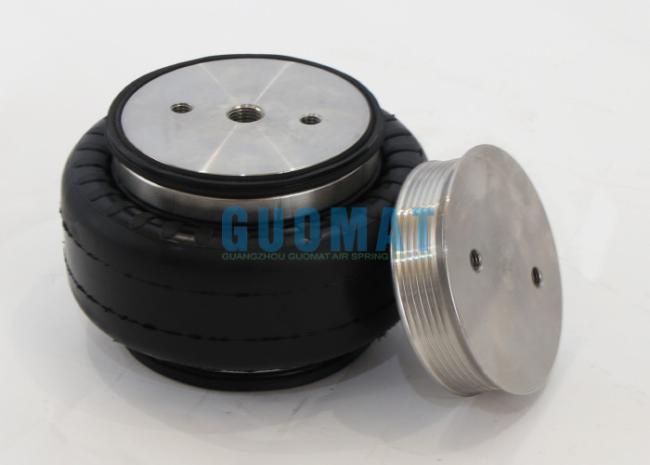

Product Image
