FD76-14 DI CR Contitech Double Convoluted Air Shock G1/2 Air Fitting Industrial Air Spring
FD76-14 DI CR Contitech Double Convoluted Air Shock G1/2 Air Fitting Industrial Air Spring
Product Description
| Continental Contitech |
| FD 76-14 DI CR |
| 70215 |
| Double Convoluted Type |
| With Flange |
| Original Model |
Original Contitech FD76-14
Original Contitech FD 76-14
Original Contitech FD76-14 DI
Original Contitech FD 76-14 DI
Original Contitech FD76-14 DI G1/2
Original Contitech FD 76-14 DI G1/2
Original Contitech FD76-14 DI G1/2 M10
Original Contitech FD 76-14 DI G1/2 M10
Original Contitech FD76-14 DI / 70215
Original Contitech FD 76-14 DI / 70215
Cross Reference Number
Firestone W01-R58-4070 / WO1-R58-4070
Firestone W01 -R58 4070 / WO1 -R58 4070
Firestone W01R584070 / WO1R584070
Dunlop SP2917 / SP 2917
Dunlop 6X2 / 6''X2
Norgren PM/31062 / PM31062 / PM 31062
GUOMAT 2B6X2T
FD 76-14 Technical Data
Maximum stroke: 110 mm
Maximum height: 190 mm
Minimum height: 75 mm
Recommended maximum working height: 170 mm
Maximum diameter (eight bar): 178 mm
Plate diameter: 153.5 mm
Mounting threads: 4 x M10
Plate material: Galvanized steel
Air inlet: G1/2
Temperature range: -40 to +85°C
Rubber: CR elastomer
| Type | Order No. |
| CR-Rubber bellows, with dismountable plates, G1/2 air inlet | 70215 |
| Rubber bellows only | 77215 |
Contitech Model Series D-Double Convoluted Air Bellows
| Model | Min.design height | Max. | installation space required(in) | Max. | Max. | Force at P=116psi | Connection part variant | Distance D (in) | ||
| min.height (Ib) | Half stroke(Ib) | max.stroke (Ib) | ||||||||
FD 22-4 DI CR | 2.56 | 3.15 | 3.74 | 1.54 | 1.77 | 674.43 | 427.14 | 202.33 | 1 | 1.42 |
FD 44-10 DI CR | 2.56 | 4.92 | 5.51 | 2.95 | 3.35 | 1663.59 | 1011.4 | 382.18 | 2 | 3.66 |
FD 76-14 DI CR | 3.15 | 6.89 | 7.48 | 3.74 | 4.53 | 3259.73 | 2090.72 | 1056.60 | 3 | 5.00 |
FD 76-14 DS CR | 2.95 | 6.89 | 7.48 | 3.74 | 4.53 | 3259.73 | 2090.72 | 1056.60 | 4 | 5.00 |
FD 138-18 DS | 2.95 | 9.06 | 9.65 | 5.71 | 6.89 | 5552.78 | 2540.34 | 1124.04 | 4 | 5.00 |
FD 209-21 DS | 2.95 | 10.04 | 10.63 | 7.28 | 8.07 | 7014.04 | 4158.96 | 1686.07 | 4 | 6.61 |
FD 210-22 DS | 2.95 | 10.63 | 11.81 | 6.69 | 8.86 | 7868.31 | 4743.47 | 1596.14 | 4 | 7.13 |
FD 412-18 DS | 2.95 | 12.99 | 13.78 | 6.69 | 8.86 | 12049.76 | 8115.60 | 3462.06 | 4 | 9.13 |
FD 614-26 DS | 2.95 | 15.75 | 16.73 | 8.46 | 10.43 | 17759.90 | 11824.95 | 4428.74 | 4 | 11.12 |
FD 816-30 DS | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 18928.91 | 1312.84 | 4743.47 | 4 | 6.25 |

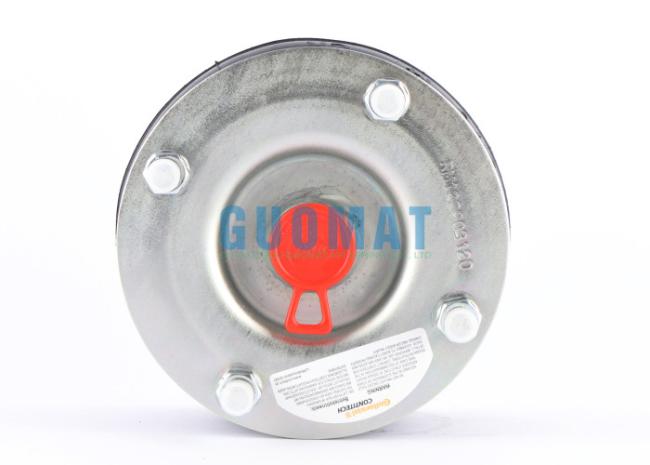

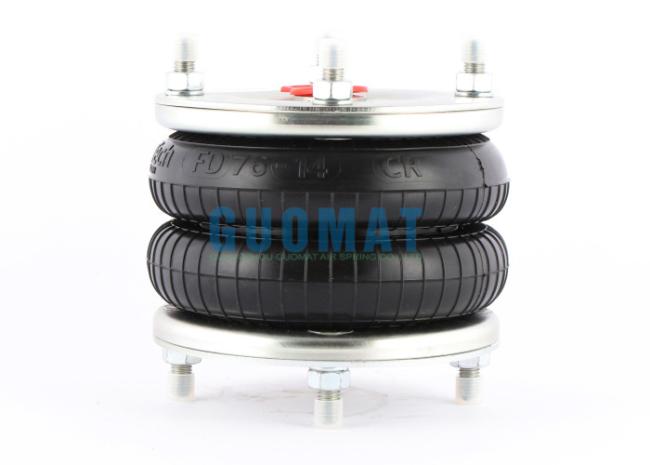

Product Images of Contitech FD76-14 Air Spring Bags
