FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags
FD 200-19 504 Contitech Rubber Convoluted Air Spring W01-358-6926 Firestone Air Ride Bags
Cross Reference Numbers
| Firestone Style | Style 20 |
| Firestone Number | W01-358-6926 / W01 358 6926 / W013586926 |
| Firestone Number | WO1-358-6926 / WO1 358 6926 / WO13586926 |
| Contitech Number | FD200-19 504 / FD 200-19 504 / 64516 |
| Fleetpride Number | AS6926 |
| Goodyear Number | 2B9-288 / 2B 9-288 / 2B9 288 / 2B9288 |
| Goodyear Flex Number | 578923211 / 578-92-3-211 / 578 92 3 211 |
| Taurus Number | 6325 |
| Triange | AS-4504 |
| TRP Number | AS69260 |
| Automann Number | SP2B12R-6926 |
2B6926 Double Convoluted Air Suspension Spring Technical Data
Top cover plate diameter: 6.31 inches
Bottom cover plate diameter: 6.31 inches
Air fitting: 1/4-18 NPTF
Threaded hole on top plate: 2x3/8-16UNC
Threaded hole on bottom plate: 2x3/8-16UNC
Center distance between threaded holes: 3.5 inches
Center distance between threaded hole and air hole: 1.51 inches
Max.height: 10.5 inches
Min.height: 3.70 inches
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
Six Reasons to Choose Us
| 1.Hight stability |
| 2.In situ installation |
| 3.Ride comfort |
| 4.Safe and durable |
| 5.Effective shock absorption |
| 6.Reduce the sound |

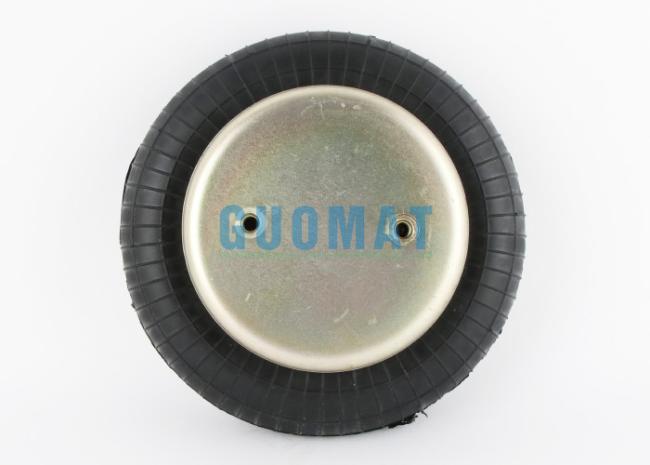

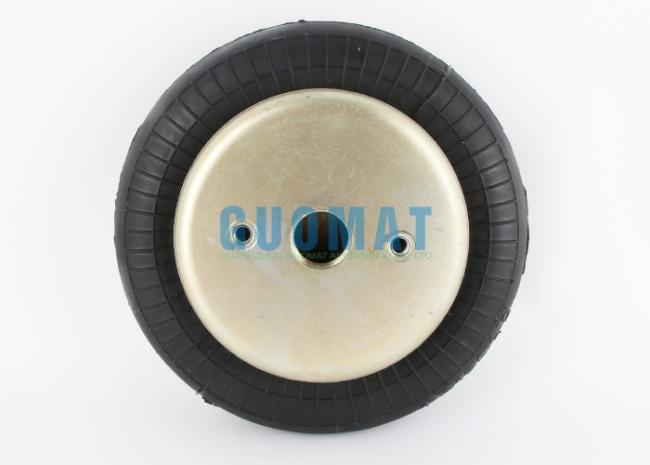

Product Image
