W01-358-0112 Firestone Convoluted Air Spring Style 110 Industrial Bellows Actuator
W01-358-0112 Firestone Convoluted Air Spring Style 110 Industrial Bellows Actuator
Product Description
GUOMAT No.: 1H0112
Material: Rubber+Steel
Warranty: 1 Year
Type: Convoluted Air Spring
Color: Black
Place of Origin: Guangzhou,China
Packing: Neutral Packing
Socket head aluminum bead rings(bolts,nuts,washers not included-use 1/4 cap screws)
Firestone Number W013580112
Firestone Number W01-358-0112
Firestone Number W01 358 0112
Firestone Style Number 110
Blind nuts,1/4NPT
Firestone Number W013587451
Firestone Number W01 358 7451
Firestone Number W01-358-7451
Blind nuts,3/4NPT
Firestone Number W013587484
Firestone Number W01 358 7484
Firestone Number W01-358-7484
Rubber bellows only
Firestone Number W013580100
Firestone Number W01 358 0100
Firestone Number W01-358-0100
1H0112 Air Spring Technical Data
Max.Height: 6 inches
Min.Height: 2.1 inches
Maximum Diameter @ 100 PSIG (inches): 8.3
Bead ring Type: 4
Bolt Circle Diameter (inches): 4.5
Number of Bolts (each ring): 6
Design Height: 4.5
Dynamic Characteristics at 4.5 in. design Height
| Volume@100PSIG=128in3 | Natural Frequency | |||
| Gage Pressure (PSIG) | Load (Ibs.) | Spring Rate(Ibs./in,) | CPM | HZ |
| 40 | 650 | 554 | 173 | 2.88 |
| 60 | 1010 | 795 | 167 | 2.77 |
| 80 | 1390 | 1046 | 162 | 2.71 |
| 100 | 1790 | 1294 | 160 | 2.66 |
Force Table
| Assembly Height(in.) | Volume@100 PSIG(IN3) | Pound Force | ||||
| @20 PSIG | @40 PSIG | @60 PSIG | @80 PSIG | @100 PSIG | ||
| 4.0 | 117 | 190 | 810 | 1240 | 1700 | 2160 |
| 3.0 | 91 | 490 | 1010 | 1540 | 2090 | 2650 |

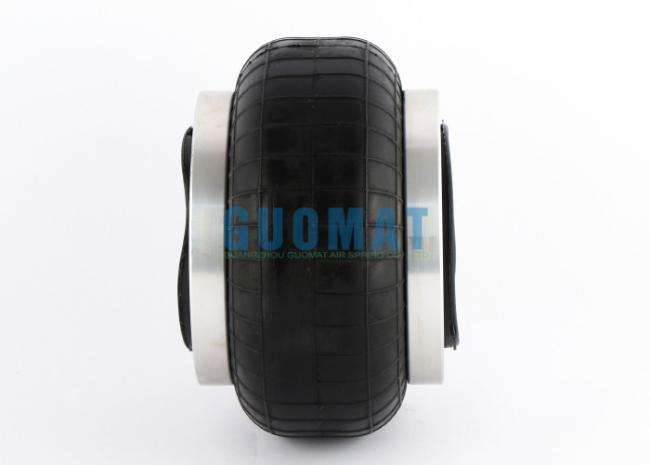

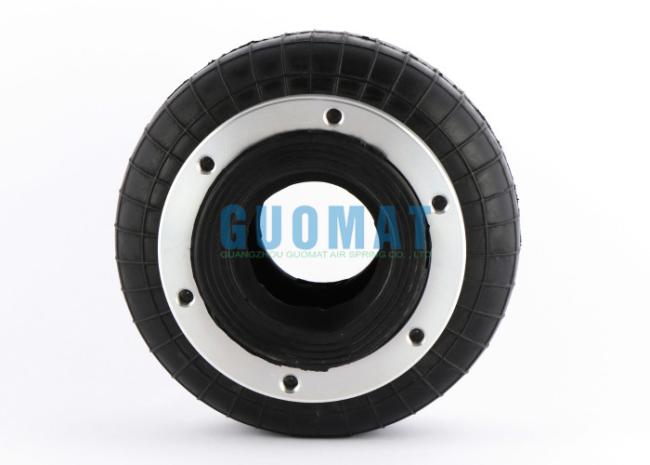

Product Picture
